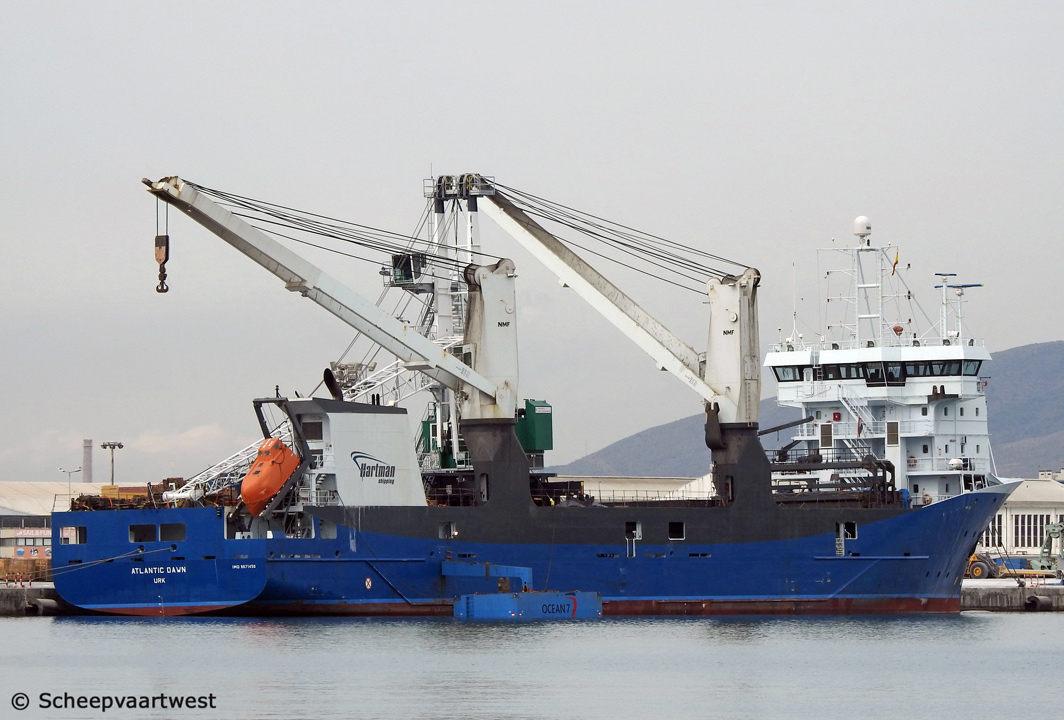

Atlantic Dawn 01

Malaga, Spain 10 August 2020

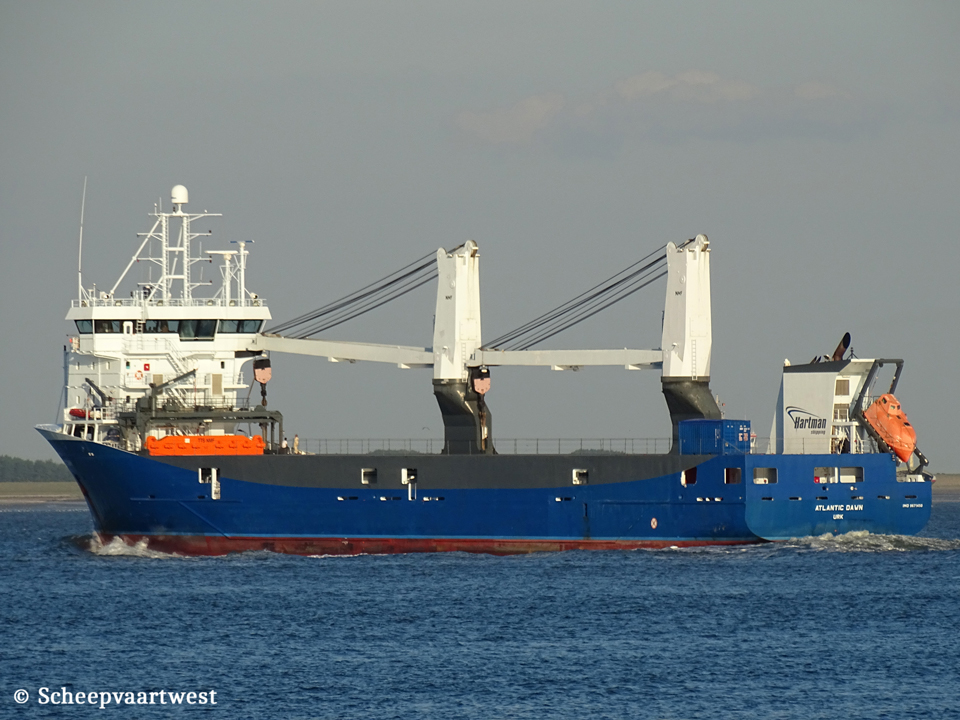

Atlantic Dawn IMO 9671450 02
Westerschelde 15/08/16


Name

ATLANTIC DAWN

Type

Multi-purpose carrier - Heavy lifter

IMO-number

9671450

Call sign

PCUS

Flag

The Netherlands

Port of registry

Urk

GT

5.560 t

DWT

Summer: 4.400 t

Open top: 3.500 t

NT

1.638 t

Displacement

7.176 t

Number of 20ft containers

In hold: 124

On deck: 137

Total: 261

Length

111,70 m overall

102,00 m between perpendiculars

Breadth

16,94 m extreme

16,40 m moulded

Draught

Summer: 5,94 m

Open top:5,36 m

Keel to top mast

34,00 m

Depth

9,30 m moulded

12,70 m upper deck

Speed

Service:

Ballast: 17,0 knots

Loaded: 16,0 knots

Built

2013

Keel laid

10/2012

Date of completion

02/12/2013

Builder casco

Partner Stocznia Sp.z.o.o.

Szczecin

Poland

Yard number: 120

Builder completion

Hartman Marine Shipbuilding B.V.

Urk

The Netherlands

Yard number: 8

Hull material

Steel

Continuous decks

1

Main engine

1x MaK 8M32C - 4 stroke single acting 8 cylinder 320 x 480 mm combustion engine 4.000 kW / 5.438 bhp at 600 rpm

Manufacturer: Caterpillar Motoren GmbH & Co. K.G., Kiel - Germany

Propellers

1x Screw propeller controllable pitch - aft at 173 rpm

Generators

2x Scania DI-13 diesel engine connected with Stamford generator each 406 ekW

1x AGCO Power 74-DTAG diesel engine connected with Stamford generator 119 ekW

Thruster

300 kW, bow

300 kW, stern

Number of holds

1

Cargo hold capacity

6.796 m³ / 240.000 ft³

Hold floor surface

1.310 m²

Deck floor surface

1.529 m²

Hatchcover/tweendecks

Type hatchcovers: 11 pontoon hatches

Tweendeck covers: 7 removable pontoons

Max permitted loads

Tanktop upper hold: 16,0 t/m²

Tanktop lower hold: 20,0 t/m²

Tweendeck: 4,0 t/m²

Hatch covers: 4,0 t/m²

Tank capacities

Heavy fuel: 529,00 m³

Marine gas oil: 64,00 m²

Lub oil: 24,36 m³

Fresh water: 35,00 m³

Ballast water: 3.461 m³

Cargo gear

2x NMF DK11 cranes - SWL 150 t each

Combination: SWL 300 t

Load/Outreach:

150 t / 4,0-16,0 m

120 t / 4,0-19,0 m

95 t / 4,0-24,0 m

80 t / 4,0-28,0 m

Manager

Hartman Shipping B.V.

8322 BN Urk

The Netherlands

Registered owner

Hartman Shipping 2 B.V.

Rijswerker 1

8322 BN Urk

The Netherlands

Latest data adjustment

13 August 2023
