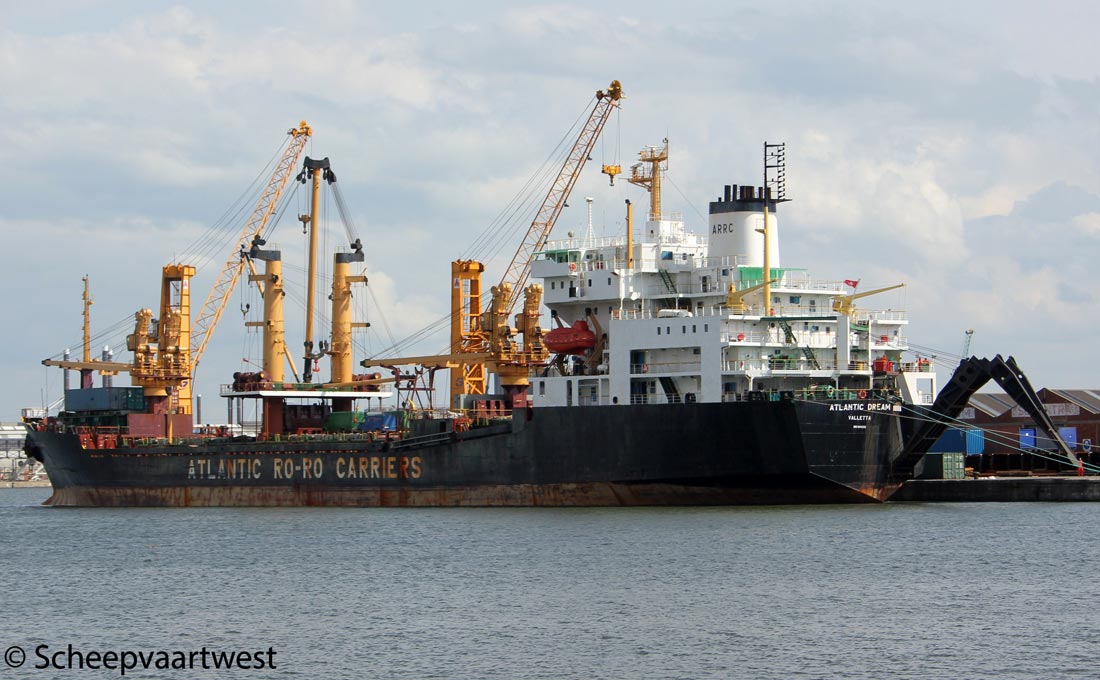

Atlantic Dream 01
Antwerpen 29 July 2013



Name

ATLANTIC DREAM

Previous names

1988 - 04.1996 Vladimir

1996 - 1997 Continuo

1997 - 06.2004 Salvador

2004 - 09.2006 Vladimir

Type

General cargo ship

Sub types

Road vehicles (laden) - Container facility - Grain

IMO-number

8811352

Call sign

9HRI8

Flag

Malta

Port of registry

Valletta

GT

15.893 t

Panama: 16.701 t

Suez: 16.456,77 t

DWT

Summer: 19.036 t

NT

8.092 t

Panama: 12.451 t

Suez: 12.658,45 t

Displacement

27.956 t

Light ship

8.920 t

Lane meters

1.586 (1.016 on ramp deck and 570 on whether deck)

Number of 20ft containers

533

Reefer plugs

30 On deck, Standard type - 380/220 V,32 A

Length

173,50 m overall

161,20 m between perpendiculars

Breadth

23,05 m moulded

Draught

10,02 m

Depth

13,70 m

Speed

16,8 knots

Built

1988

Date of completion

12.10.1988

Builder

Nordic Yards Warnemunde
Rostock
German Democratic Republic

Yard number

138

Hull material

Steel

Bulkheads

6

Number of decks

2

Main engine

1x MAN K5SZ 70/125B diesel engine - 7.600 kW at 145,0 rpm

Propellers

1x Fixed pitched solid propeller - 4 blades

Generators

4x SKL 6VDS 26/20 AL2 diesel generators each 579 kVA

Emergency generator

1x Diesel generatorset 192 kVA

Bow thruster

1x 700 kW ,C.P.P. Propeller

Number of holds

4

Weather deck:

Hold 1: Bale: 1.316 m³ / Grain: 1.456 m³

Hold 2: Bale: 3.112 m³ / Grain: 3.170 m³

Hold 3: Bale: 3.826 m³ / Grain 4.108 m³

Hold 4: Bale: 2.010 m³ / Grain: 2.125 m³

Tween deck:

Hold 1: Bale: 666 m³ / Grain 677 m³

Hold 2: 3.750 (+804) m³ / 3.005 m³

Hold 3: 3.676 (+1.044) m³ / Grain 3.362 m³

Hold 4: 2.443 m³ (+433) m³/ Grain 1.1828 m³

Number of hatches

4

Weather deck:

Hatch 1: 13,10 x 7,42 m

Hatch 2: 26,40 x 12,32 m

Hatch 3: 33,60 x 12,32 m

Hatch 4: 12,80 x 12,32 m

Tween deck:

Hatch 1: 12,50 x 7,42 m

Hatch 2: 26,10 x 12,32 m (11,90 m at crossbeam)

Hatch 3: 33,30 x 12,32 m (11,90 m at crossbeam)

Hatch 4: 12,50 x 12,32 m

Stern ramp

Quarter stern ramp of Starboard Side

Length: 25,00 m

Width: 5,80 m

Max Loading capacity: 45 t

Max Load per axle 18 t for single axle vehicles

Height of stern entrance 4,50 m (practical height)

Ro-Ro deck area

Ro-Ro deck aft: 2.595 m²

Ro-Ro deck: 2.340 m²

Car & Truck capacity

Car Capacity on ro-ro deck: (4,20 x 1,65 m): 232

Truck Capacity on ro-ro deck: (6,70 x 2,50 m): 81

Trailer Capacity on ro-ro deck: (20 foot): 90

Cargo capacity

Grain: 19.731 m³

Bale: 25.677 m³

Tank capacities

Fuel oil: 2.016 m³

Diesel oil: 597 m³

Fresh water: 318 m³

Water ballast: 4.320 m³

Cargo gear

2x Electrical cranes - SWL 12,5 t each between holds 3 & 4 ,combinable as well to 1x 25,0 t and capable of serving either holds 3 & 4

2x Electrical cranes - SWL 12,5 t each between holds 1 & 2 ,combinable as well to 1x 25,0 t and capable of serving either holds 1 & 2

2x Electrical derricks - SWL 25,0 t each between holds 2 & 3 with one derrick serving each hold exclusively

1x Electrical heavy-lift derrick - SWL 125 t between holds 2 & 3 and capable of serving either holds

Crew

23

Operator

ARRC - Atlantic Ro-Ro Carriers

Owner

Atlantic Project Shipping Limited

Scrapped

09.2013 Alang - India

Last update

09 December 2013
