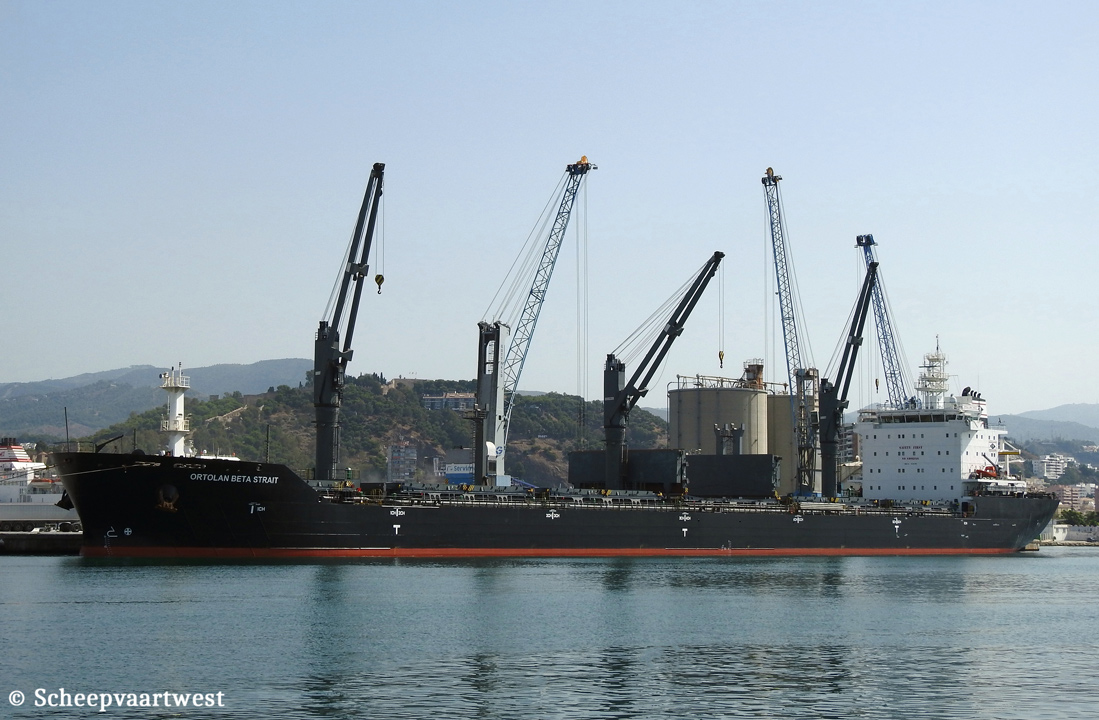

Malaga, Spain 27 July 2020 |
|
Name |
ORTOLAN BETA STRAIT |
|
Previous names |
2010 build as: Seven Islands 2010 - 2020 Pacific Huron |
|
Type |
Geared bulk carrier |
|
IMO-number |
9546796 |
|
Call sign |
V2ES4 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. Johns |
|
GT |
20.535 t |
|
DWT |
Summer: 29.974,9 t |
|
NT |
9.695 t |
|
Length |
190,00 m overall 182,60 m between perpendiculars |
|
Breadth |
23,59 m extreme |
|
Draught |
Summer: 10,10 m |
|
Depth |
14,60 m |
|
Speed |
14,0 knots |
|
Built |
2010 |
|
Keel laid |
27/12/2008 |
|
Launch date |
02/02/2010 |
|
Date of completion |
17/05/2010 |
|
Builder |
Yangzhou Gouyu Shipbuilding Co., Ltd. Yangzhou China |
|
Yard number |
GY102 |
|
Hull material |
shipbuilding steel |
|
Hull type |
Bouble bottom, continuous from peak to peak bulkhead |
|
Main engine |
1x Wärtsilä 6RTA48T-B - 2 stroke 6 cylinder 480 x 2.000 mm combustion engine 7.800 kW / 11.880 hp at 127,0 rpm Builder: Wärtsilä Norway AS |
|
Propellers |
1x Controllable pitch propeller - aft at 127,0 rpm |
|
Boilers |
1x Auxiliary boiler, composite |
|
Generators |
2x Wärtsilä 4L20 - 4-stroke 4 cylinder 200 x 280 mm diesel engines total 1.600 kW at 1.000 rpm connected with 2 AC generators at total 1.520 ekW total / 1.900 kVA at 50Hz 1x Wärtsilä 4L20 - 4-stroke 6 cylinder 200 x 280 mm diesel engine total 1.200 kW at 1.000 rpm connected with 1 AC generators at total 1.140 ekW total / 1.425 kVA at 50Hz |
|
Emergency generator |
1x Cummins NT855-D(M) - 4-stroke 6 cylinder 140 x 152 mm diesel engine 280 kW at 1.500 rpm connected with 1 AC generator 50 Hz |
|
Number of holds |
6 |
|
Cargo hold capacity |
Grain: 39.075,97 m³ Bale: 38.880 m³ |
|
Number of hatches |
6 Hatch 1: 12,80 x 12,80 m Hatch 2/3/4/5: 19,20 x 17,80 m Hatch 6: 16,80 x 17,80 m |
|
Hatch type |
TTS Hydraulic folding steel pontoon type No. 4 cargo hatchcover specially reinforced against full water ballast in hold |
|
Tanktop strength |
Hold 1, 3 + 5: 21,50 t/m² Hold 2, 4 + 6: 20,20 t/m² |
|
Tank capacities |
Ballast: 17.070,4 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 64 mm |
|
Cargo gear |
3x Deck cranes - SWL 30,0 t each Suitable for grab discharge |
|
Manager |
Thome Shipmanagement Germany GmbH & Co. Große Elbstraße 38 22767 Hamburg Germany |
|
Registered owner |
Ortolan Beta Schiffahrtsgesellschaft mbH & Co. KG August-Bebel-Straße 68 14482 Potsdam Germany |
|
Previous namers & owners |
2010 - 2020 Pacific Huron - Freese Shipping Gmbh & Co Kg , An Der Werft 4, 21680 Stade Niederelbe - Germany |
|
Latest data adjustment |
24 November 2020 |
