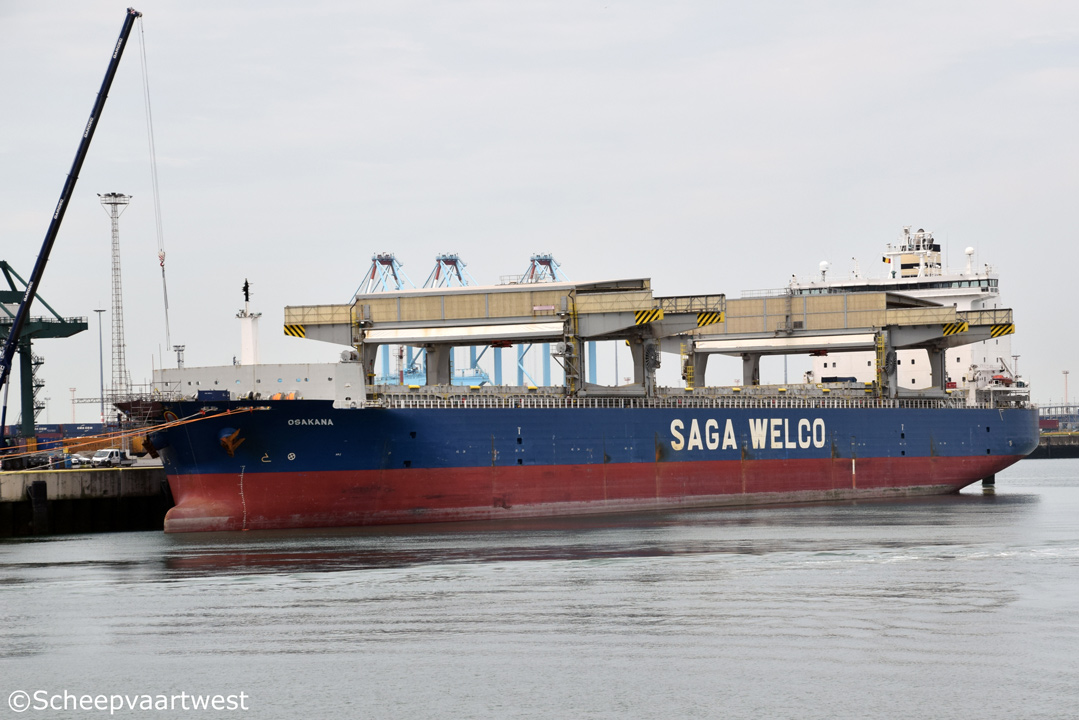

Zeebrugge 16 August 2017 |
 |
 |
|

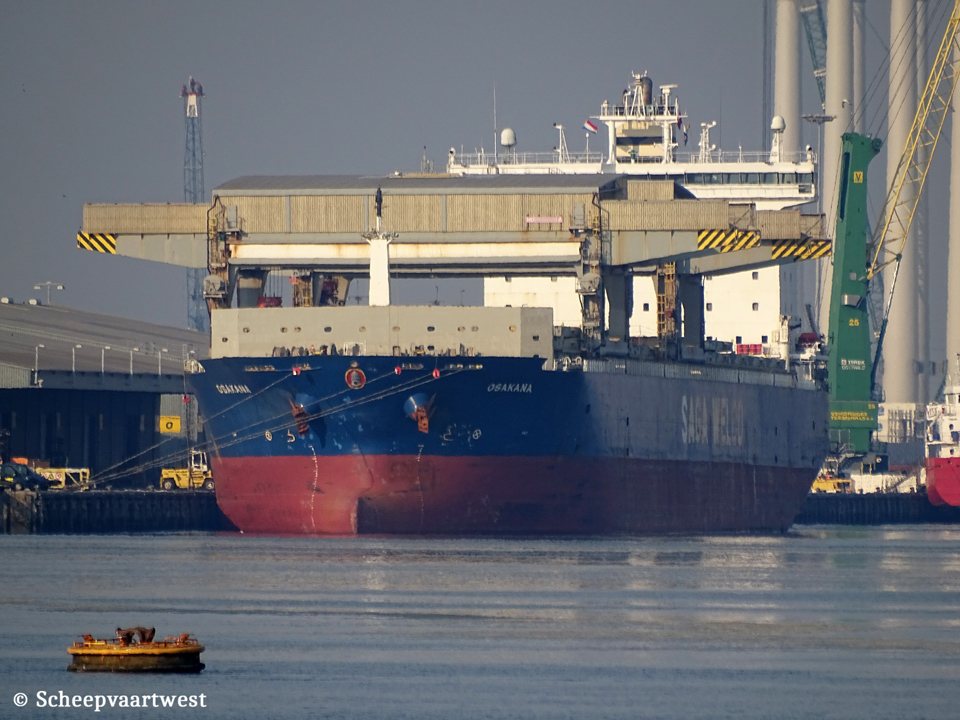

| Zeebrugge 16/08/17 | Vlissingen 11/08/20 |
|
Name |
OSAKANA |
|
Previous names |
2004 - 01/2009 Star Osakana |
|
Type |
Open hatch general cargo ship - Containership |
|
IMO-number |
9253870 |
|
Call sign |
2HBU5 |
|
Flag |
Isle of Man - United Kingdom |
|
Port of registry |
Douglas |
|
Previous flags |
2004 - 2013 Republic of Singapore - Call sign: 9VAR9 |
|
GT |
38.910 t |
|
DWT |
54.241 t |
|
NT |
15.683 t |
|
Number of 20ft containers |
On hatch cover: 858 In holds: 1.670 Total: 2.528 |
|
Length |
212,50 m overall 202,30 m between perpendiculars |
|
Breadth |
32,31 m extreme 32,26 m moulded |
|
Draught |
Summer: 12,32 m |
|
Depth |
19,00 m |
|
Speed |
Service: 15,8 knots Economic: 12,0 knots |
|
Built |
2004 12/2013 Lengthened 13,50 m by Chengxi Shipyard - China |
|
Keel laid |
09/10/2003 |
|
Launch date |
12/02/2004 |
|
Date of completion |
23/04/2004 |
|
Builder |
Oshima Shipbuilding Co., Ltd. Saikai Japan |
|
Yard number |
10333 |
|
Hull material |
Steel |
|
Bulkheads |
Transverse: 14 |
|
Main engine |
1x MAN-B&W/Kawasaki 6S60MC - 2 stroke 6 cylinder 600 x 2.292 mm combustion engine 11.515 kW / 15.442 hp at 101 rpm Manufactured by: Kawasaki Heavy Industries |
|
Propellers |
1x Fixed pitch propeller - aft at 97,5 rpm Diameter 6.600 mm |
|
Boilers |
1x Auxiliary boiler, composite GCS-22ST Manufacturer: Aalborg Industries A/S |
|
Generators |
1x MAN-B&W 5L28/32H main diesel generatorset 1.064 kW 2x MAN-B&W 6L28/32H main diesel generatorsets each 1.263 kW |
|
Emergency generator |
1x Deutz BF 6L 913 diesel generatorset 82 kW |
|
Bow thruster |
2x Rolls-Royce thruster 1.500 kW / 2.000 hp, forward 1x Rolls-Royce thruster 750 kW, aft |
|
Number of holds |
12 |
|
Cargo hold capacity |
Hold 1: 4.852 m³ / 171.347 ft³ Hold 2: 6.332 m³ / 223.613 ft³ Hold 3: 6.198 m³ / 229.228 ft³ Hold 4: 6.198 m³ / 229.228 ft³ Hold 5: 6.198 m³ / 229.228 ft³ Hold 6: 6.198 m³ / 229.228 ft³ Hold 7: 6.198 m³ / 229.228 ft³ Hold 8: 6.198 m³ / 229.228 ft³ Hold 9: 6.198 m³ / 229.228 ft³ Hold 10: 6.198 m³ / 229.228 ft³ Hold 11: 6.014 m³ / 201.383 ft³ Hold 12: 2.703 m³ / 95.456 ft³ Total: 71.885 m³ / 2.536.623 ft³ |
|
Tank capacities |
Ballast: 16.180 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 78 mm |
|
Cargo gear |
2x Travelling gantry cranes with full weather protection - SWL 68,0 t each |
|
Crew |
20 |
|
ISM & commercial manager |
Zeaborn Ship Management (Singapore) Pte. 11-03, HarbourFront Centre, 1, Maritime Square Singapore 099253 Prepubic of Singapore |
|
Operator |
Saga Welco Tenvikveien 373-375 3140 Nøtterøy Norway |
|
Registered owner |
Masterbulk AS Care of Masterbulk Ship Management Pte Ltd. 23-01, 79, Anson Road Singapore 079906 Republic of Singapore |
|
Latest data adjustment |
23 January 2022 |
