Westerschelde 01 April 2020 |
|
Name |

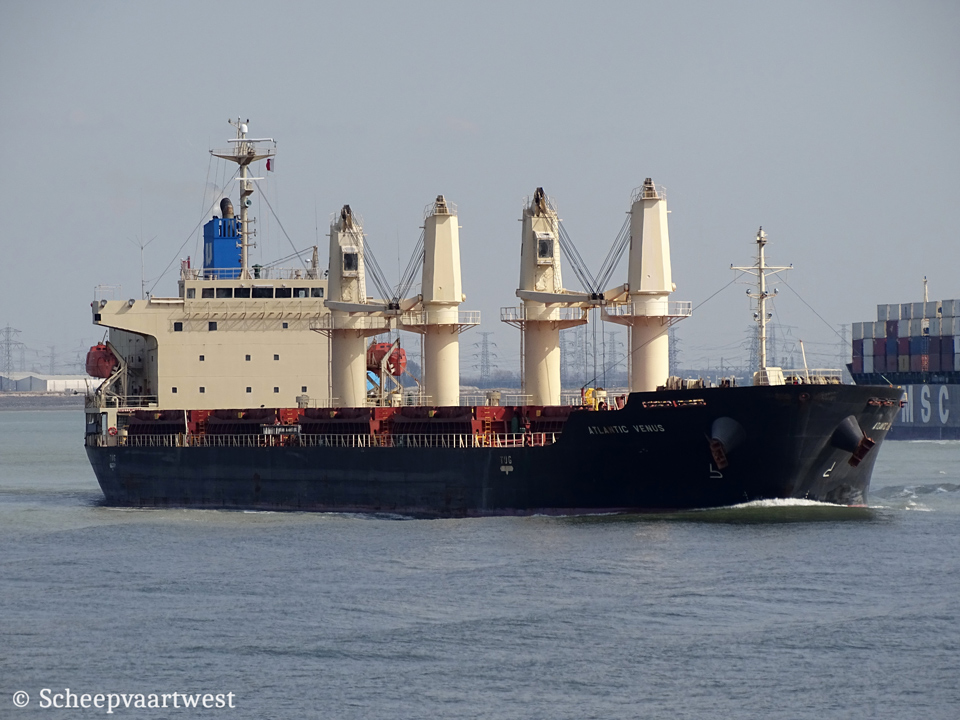

ATLANTIC VENUS |
|
Type |
Handysize bulk carrier |
|
IMO-number |
9628257 |
|
Call sign |
3FPN8 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
21.441 t registered |
|
DWT |
Summer: 33.677 t |
|
NT |
1.189 t registered |
|
Length |
179,90 m overall |
|
Breadth |
28,20 m moulded |
|
Draught |
Summer: 10,12 m |
|
Moulded L x B x D |
172,00 x 28,20 x 14,40 m |
|
Registered L x B x D |
172,88 x 28,20 x 14,40 m |
|
Freeboard |
Summer: 4.336 mm |
|
Depth |
14,40 m moulded |
|
Speed |
Max: 16,1 knots |
|
Built |
2012 |
|
Keel laid |
26/12/2011 |
|
Launch date |
23/05/2012 |
|
Date of completion |
28/08/2012 |
|
Builder |
Fukuoka Shipbuilding Co., Ltd. Nagasaki Yard Nagasaki Japan |
|
Yard number |
N-2053 |
|
Hull material |
Steel |
|
Hull type |
Double hull construction applied to all cargo holds |
|
Main engine |
1x Mitsubishi 6UEC45LSE - 2 stroke single acting 6 cylinder 450 x 1.840 mm combustion engine 6.840 kW at 129,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x oil lubrication shaft without monitoring device Diameter: 430 mm |
|
Propellers |
1x Fixed pitch propeller - aft at 130 rpm |
|
Boilers |
1x Auxiliary vertical boiler - 7,8 bar Evaporation: 1,90 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
3x Yanmar 6EY18ALW - 4 stroke 6 cylinder 180 x 280 mm diesel engines connected with 3 generators each 480 ekW |
|
Emergency generator |
1x Deutz TD914L06M - 4 stroke 6 cylinder 102 x 125 mm 99 kW at 1.800 rpm |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 42.694 m³ Grain: 43.517 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 1.680 m³ Fresh water: 269 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each |
|
Crew |
20 |
|
Manager |
Osaka Shipping Co. Ltd. 1-chōme-25-13 Edobori Nishi Ward Osaka, 550-0002 Japan |
|
Registered owner |
Golden Helm Shipping Co., SA Kotani Building 18/11 Edobori 1-chome Nishi-ku Osaka Japan |
|
Latest data adjustment |
12 November 2020 |
