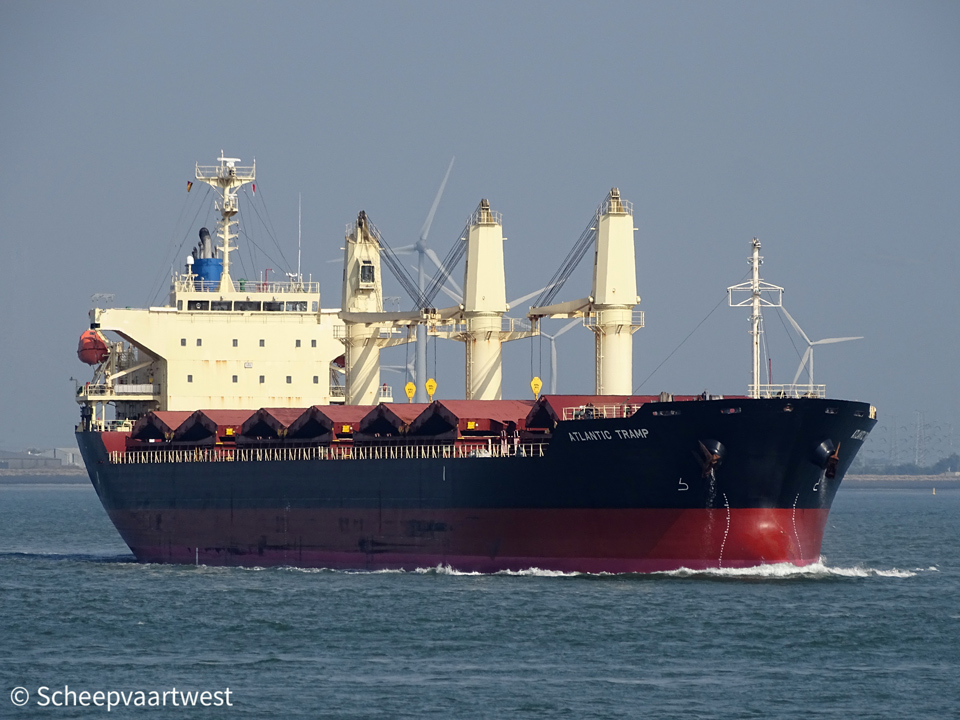

Atlantic Tramp 01

Westerschelde 22 August 2018



Name

ATLANTIC TRAMP

Type

Bulk carrier

IMO-number

9659921

Call sign

3FMY2

Flag

Republic of Panama

Port of registry

Panama City

GT

17.597 t registered

DWT

Summer: 27.930 t

NT

9.137 t registered

Length

169,30 m overall

Breadth

27,20 m moulded

Draught

Max: 9,80 m

Moulded L x B x D

160,40 x 27,20 x 13,60 m

Registered L x B x D

161,22 x 27,20 x 13,60 m

Freeboard

Summer: 3.834 mm

Depth

13,60 m moulded

Speed

Service: 14,0 knots

Max: 16,3 knots

Built

2013

Keel laid

20/12/2010

Launch date

10/06/2013

Date of completion

19/07/2013

Builder

Imabari Shipbuilding Co., Ltd.
imabari
Japan

Yard number

755

Hull material

Steel

Hull type

Double hull

Main engine

1x 2 stroke single acting 6 cylinder 420 x 1.764 mm combustion engine 5.850 kW at 129,0 rpm

Manufacturer: Makita Corporation

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 420 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 8,0 bar

Evaporation: 2,00 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Generators total 1.715 kVA

Cargo hold capacity

Bale: 32.984 m³

Grain: 33.902 m³

Tank capacities

Fuel oil: 1.685 m³

Fresh water: 366 m³

Manager

NS United Kaiun Kaisha Ltd.
Tokyo
Japan

Registered owner

Narcissus Maritime

Latest data adjustment

19 November 2018
