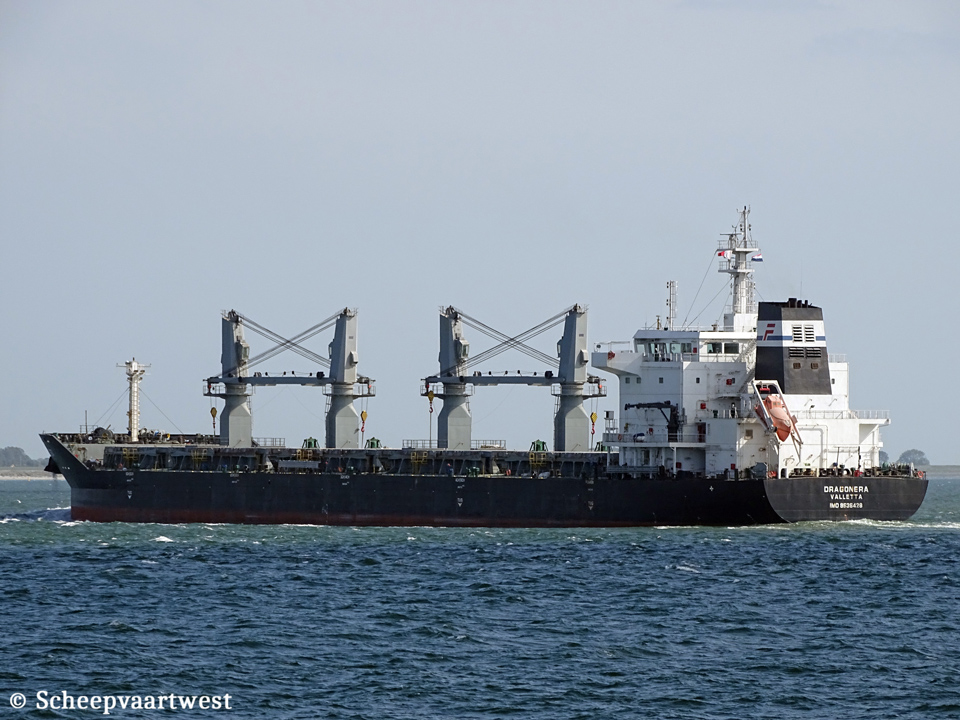

Dragonera IMO 9536428 01

Westerschelde 20 September 2018



Name

DRAGONERA

Previous names

2010 build as: Cabrera

Type

Bulk carrier - Handysize

IMO-number

9536428

Call sign

9HA2475

Flag

Malta

Port of registry

Valletta

GT

24.210 t

DWT

Summer: 34.613 t

NT

12.122 t

Length

180,00 m overall

176,63 m between perpendiculars

Breadth

30,03 m extreme

29,99 m moulded

Draught

Summer: 10,10 m

Depth

14,70 m

Speed

14,2 knots

Built

2010

Keel laid

04/03/2010

Launch date

05/03/2011

Date of completion

16/08/2011

Builder

Shanghai Zhenhua Heavy Industries Qidong Marine Engineering Co., Ltd.

China

Yard number

DD017

Hull material

Steel

Main engine

1x MAN-B&W 5S50MC-C - 5 cylinder combustion engine 7.900 kW at 127,0 rpm

Propellers

1x Mono-bock propeller

Boilers

1x Auxiliary boiler, composite

Builder: Kangrim

Generators

3x Hyundai/Himsen 6H17/28 4 stroke 6 cylinder 170 x 280 mm diesel generatorsets each 720 kW

Emergency generator

1x John Deere 6068HF275 diesel generatorset

Number of cargo holds

5

Cargo hold capacity

Hold 1: 7.900 m³

Hold 2: 9.800 m³

Hold 3: 9.800 m³

Hold 4: 9.800 m³

Hold 5: 9.400 m³

Total: 46.700 m³

Number of hatches

5

Hatch 1: 16,00 x 18,70/15,00 m

Hatch 2-3-4-5: 19,20 x 20,30 m

Hatches type

Steel folding covers

Tank capacities

Ballast: 22.726 m³

Anchor equipment

Length: 628,10 m

Diameter: 68 mm

Cargo gear

4x Deck cranes - SWL 30,0 t each

4x grabs each 12,0 m³

Crew size

23

Manager

Dania Ship Management Bulk A/S

Tuborg Havnevej 15

2900 Hellerup

Denmark

Registered owner

Dragonera Shipping A/S

c/o Falcon Maritime A/S

Orient Plads

12100 Copenhagen

Denmark

Group

Falcon Maritime group

Latest data adjustment

26 November 2020
