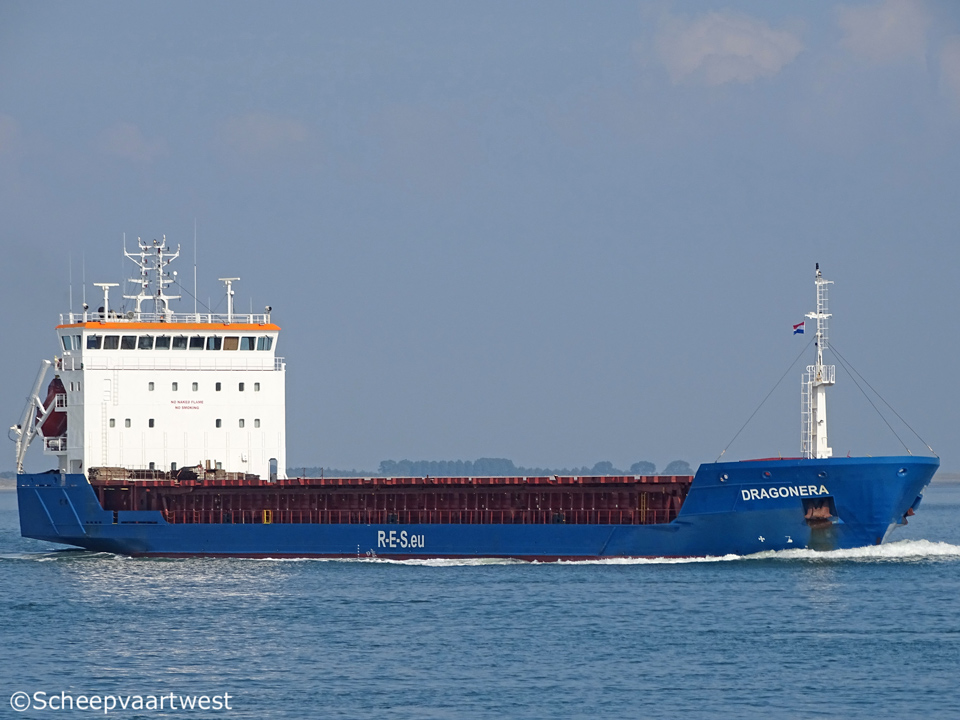

Dragonera 01

Westerschelde 04 July 2017



Name

DRAGONERA

Previous names

2007 - 2015 Kar Cengizhan

2015 - 2017 Vigoroso

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9191943

Call sign

CQEN

Flag

Portugal

Port of registry

Madeira

Previous flags

2009 - 2015 Gibraltar, Gibraltar - Call sign: ZDIK3

GT

4.244 t

DWT

Summer: 5.557 t incl. bulkheads

DWCC

Summer: 5.300 t

Winter: 5.150 t

NT

2.370 t

Number of 20ft containers

In hold: 141

On deck: 216

Total: 357

Container capacity 14t

240

Length

99,98 m overall

94,64 m between perpendiculars

Breadth

16,50 m extreme

Draught

6,10 m

Air draft

27,50 m full ballast

Depth

8,01 m moulded

Speed

Service: 13,0 knots

Max: 16,2 knots

Built

2007

Keel laid

08/06/1998

Launch date

04/10/2002

Date of completion

22/02/2007

Builder

Istanbul Tersanesi Komutanligi
Altkaynarca, Pendik
34890 Istanbul
Turkey

Yard number

5103

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

4

Continuous decks

1

Main engine

1x MAN B&W 7L32/40 - 7 cylinder combustion engine 3.360 kW

Propellers

1x Controllable pitch propeller

Boilers

1x Auxiliary boiler, oil/gas fired

Generators

2x Volvo TAMD 165A main diesel generatorsets each 362 kW

Emergency generator

1x Volvo TAMD 74A diesel generatorset 133 kW

Bow thruster

1x 410 kW

Number of holds

1

64,00 x 13,80 x 9,10 m

Cargo hold capacity

7.800 m³ / 275.500 ft³

Max permitted loads

Tanktop: 12,0 t/m²

Deck: 2,50 t/m²

Tank capacities

Ballast: 2.410,1 m³

Anchor equipment

Length: 500,40 m

Diameter: 42 mm

Crew size

11

Manager

Reederei Erwin Strahlmann GmbH & Co. KG
Schleusenstraße 10
25541 Brunsbüttel
Germany

Registered owner

ROLAND Shipping & Trading GmbH & Co., KG
Germany

Latest data adjustment

26 April 2018
