Westerschelde 09 November 2019 |
 |
| Westerschelde 09/11/19 |
|
Name |

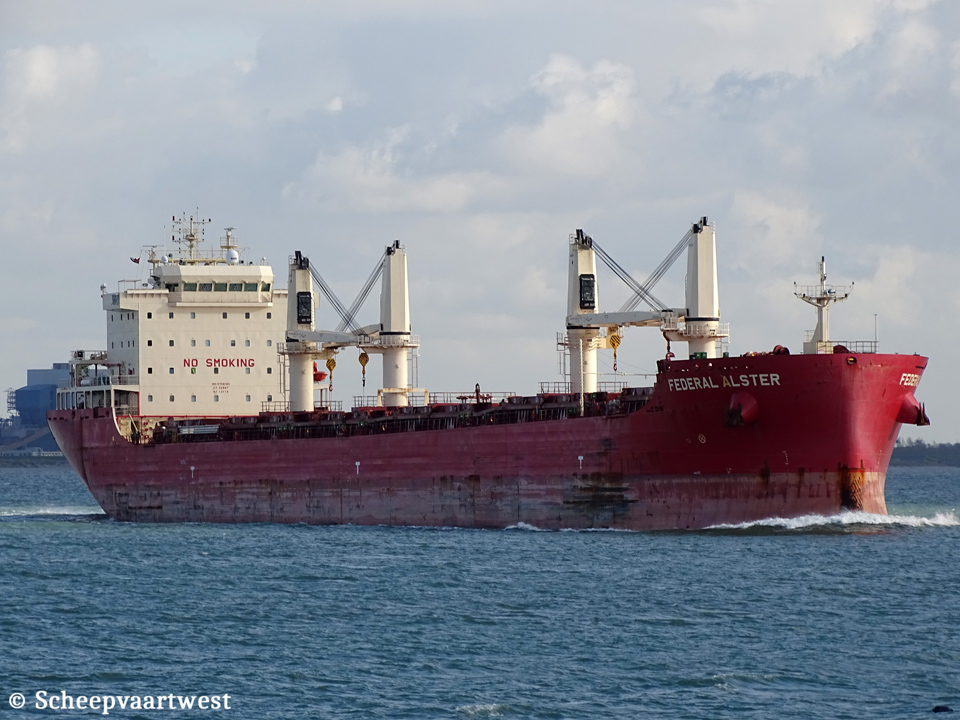

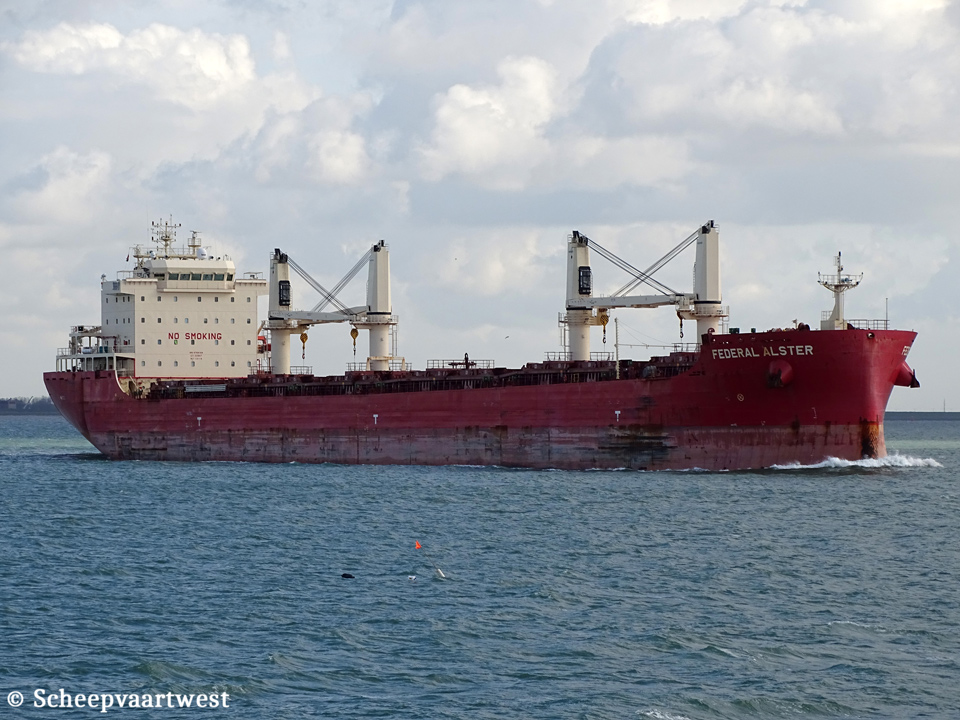

FEDERAL ALSTER |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9766164 |
|
Call sign |
V7QY3 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
07/08/2016 - 36/08/2016 Cyprus, Limassol - Call sign: 5BMP4 |
|
GT |
22.947 t |
|
DWT |
Summer: 36.583,5 t Winter: 35.522 t |
|
NT |
12.118 t |
|
Lightweight |
10.317 t |
|
Length |
199,90 m overall 192,00 m between perpendiculars |
|
Breadth |
23,75 m extreme |
|
Draught |
Summer: 11,25 m Winter: 11,02 m |
|
Depth |
15,31 m to main deck |
|
Speed |
Service: 14,0 knots Max: 17,3 knots |
|
Built |
2016 |
|
Keel laid |
10/12/2015 |
|
Launch date |
18/05/2016 |
|
Date of completion |
09/09/2016 |
|
Builder |
New Times Shipbuilding Co. Ltd. Jinjiang China |
|
Yard number |
0103601 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 5G50ME-B - 5 cylinder combustion engine 7.860 kW at 129,0 rpm |
|
Propellers |
1x mono-block propeller |
|
Boilers |
Auxiliary boiler, composite Manufacturer: Kangrim Heavy Industries Co.,Ltd. |
|
Generators |
3x Yanmar 6EY18AL- 6 cylinder diesel engine each 660 kW at 900 rpm connected with generators each 600 kW / 450 Volt 60 Hz |
|
Emergency generator |
1x Cummins 6CTA-8.3-D(M) diesel generatorset |
|
Bow thruster |
1x Kawasaki 900 kW |
|
Number of cargo holds |
5 Hold 1: 20,80 x 12,68 / 20,84 m Hold 2: 28,80 x 21,50 / 21,50 m Hold 3: 28,80 x 21,50 / 21,50 m Hold 4: 28,80 x 21,50 / 21,50 m Hold 5: 27,20 x 21,50 / 21,50 m Hold 6: 20,80 x 21,50 / 9,24 m |
|
Cargo hold capacity |
Grain & Bale: Hold 1: 5.485 m³ Hold 2: 8.776 m³ Hold 3: 8.605 m³ Hold 4: 5.971 m³ Hold 5: 8.126 m³ Hold 6: 5.708 m³ Total: 42.671 m³ |
|
Number of hatches |
6 Hatch 1: 14,40 x 15,60 m Hatch 2: 20,80 x 17,60 m Hatch 3: 20,80 x 17,60 m Hatch 4: 12,80 x 17,60 m Hatch 5: 20,80 x 17,60 m Hatch 6: 14,40 x 17,60 m |
|
Max permitted loads |
Tanktop: Hold 1: 25,5 t/m² Hold 2: 18,6 t/m² Hold 3: 20,2 t/m² Hold 4: 20,1 t/m² Hold 5: 19,2 t/m² Hold 6: 23,7 t/m² Hatch cover: 2,5 t/m² |
|
Hatch type |
Hydraulic foldable, Macgregor |
|
Tank capacities |
Ballast: 17.827,3 m³ IFO: 1.065 m³ MDO: 674 m³ Fresh water: 356 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 66 mm |
|
Cargo gear |
4x Electro hydraulic deck cranes - SWL 36,0 t each 4x Grabs each 8,0 m³ |
|
Crew size |
29 |
|
Manager |
Intership Navigation Co. Ltd. 32 Miltonos Street Limassol Cyprus |
|
Operator |
Fednav Limited 1000 de La Gauchetière Street West, Suite 3500 Montreal, Quebec H3B 4W5 Canada |
|
Registered owner |
Canada Zeus Maritime Co. Limited Miltonos, 32, 3050 Limassol Cyprus |
|
Latest data adjustment |
01 December 2020 |
