Antwerpen 12 October 2014 |
|
Name |

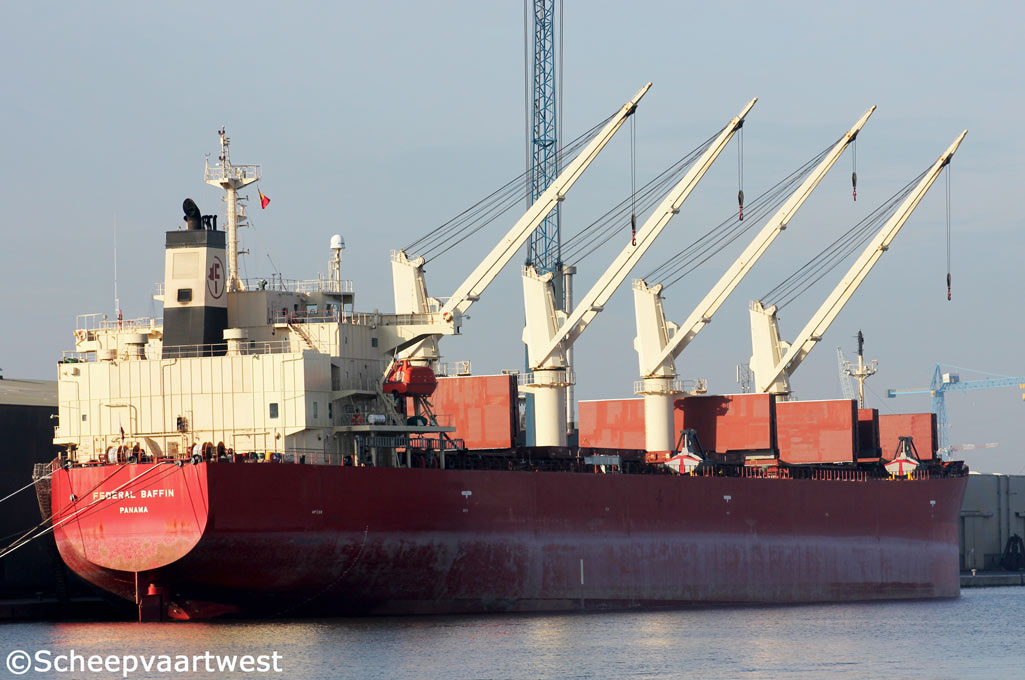

FEDERAL BAFFIN |
|
Type |
Bulk carrier - Supramax |
|
IMO-number |
9304095 |
|
Call sign |
3EIO7 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
30.721 t registered |
|
DWT |
Summer: 55.309 t Winter: 53.854 t Tropical: 56.765 t |
|
NT |
18.468 t registered Panama: 25.490 t Suez: 29.063 t |
|
Length |
189,99 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 12,50 m |
|
Moulded L x B x D |
185,79 x 32,26 x 17,62 m |
|
Registered L x B x D |
185,95 x 32,26 x 17,62 m |
|
Freeboard |
5.159 mm |
|
Depth |
17,62 m moulded |
|
Speed |
Service: 14,5 knots Max.: 16,2 knots |
|
Built |
2007 |
|
Keel laid |
27.01.2004 |
|
Launch date |
19.12.2006 |
|
Date of completion |
30.01.2007 |
|
Builder |
Oshima Shipbuilding Co. Ltd. |
|
Yard number |
10418 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W/Mitsui 6S50MC-C -2 stroke single acting 6 cylinder 500 x 2.000 mm diesel engine - 8.708 kW / 11.160 hp at 117,0 rpm Manufacturer: Kawasaki Heavy Industries, Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 560 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 2,60 t/h Manufacturer: Miura Protec Co., Ltd. |
|
Generators |
4x Generators 1.750 kW |
|
Number of holds |
5 |
|
Hold capacity |
Grain / bale: Hold 1: 11.150 m³ / 11.053 m² Hold 2: 16.322 m³ / 15.996 m³ Hold 3: 14.060 m³ / 13.754 m³ Hold 4: 14.889 m³ / 14.621 m³ Hold 5: 13.360 m³ / 13.283 m³ Total: 69.781 m³ / 68,707 m³ |
|
Number of hatches |
Hatch 1: 16,70 x 18,60 m Hatch 2: 22,30 x 18,60 m Hatch 3: 18,60 x 18,60 m Hatch 4: 21,40 x 18,60 m Hatch 5: 22,30 x 18,60 m |
|
Hatch cover |
Folding hydraulic |
|
Tank capacities |
Fuel oil: 1.589 m3 Marine diesel oil: 422 m³ Fresh water: 347 m³ Water ballast: 16.079 m³ |
|
Cargo gear |
4x Electro hydraulic cranes - SWL 30,0t each 4x Grabs each 12,0 t |
|
Manager |
Deepsea Navigation Private Limited |
|
Operator |
FEDNAV |
|
Owner |
Doun Kisen |
|
Registered owner |
Mi-Das LIne S.A. |
|
Latest data adjustment |
04 December 2014 |
