Westerschelde 11 June 2020 |
|
Name |

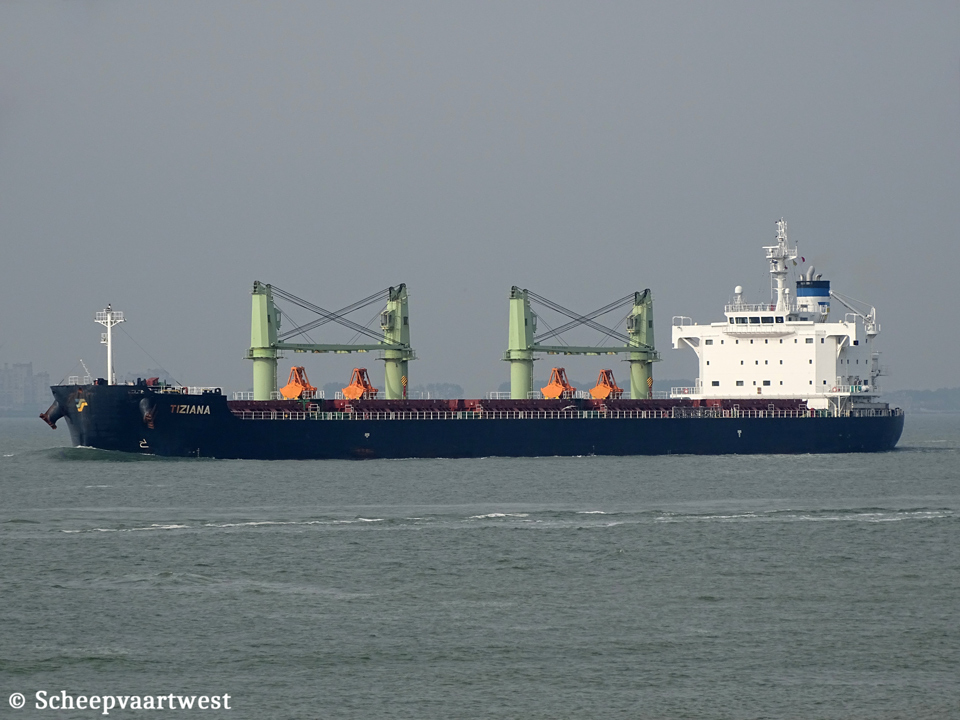

TIZIANA |
|
Type |
Box-shaped bulk carrier - Strengthened for the carriage of heavy cargoes |
|
IMO-number |
9744764 |
|
Call sign |
9HA3965 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
22.457 t Suez: 22.958,95 t |
|
DWT |
Summer: 35.443 t Winter: 34.433 t |
|
NT |
11.139 t Suez: 20.938,46 t Panama: 18.713 t |
|
Displacement |
43.652 t |
|
Length |
176,99 m overall 173,90 m between perpendiculars |
|
Breadth |
30,00 m moulded |
|
Draught |
Summer: 9,92 m Winter: 9,72 m |
|
Keel to top mast |
42,35 m |
|
Freeboard |
4.630 mm |
|
Depth |
14,50 m moulded |
|
Speed |
14,0 knots |
|
Keel laid |
17/10/2015 |
|
Delivery date |
22/03/2016 |
|
Builder |
Tsuneishi Group (Zhoushan) Shipbuilding Inc. Retiao Villiage, Xiushan Island Daishan County Zhoushan City, 316261 China |
|
Yard number |
SS183 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsui/MAN-B&W 6S50ME-B.3 - 2 stroke single acting 6 cylinder 500 x 1.932 mm combustion engine 6.780 kW / 9.092 bhp at 108,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. |
|
Propellers |
1x Fixed pith propeller Diameter: 6.000 mm Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
1x Composite boiler - 7,0 MPa Builder: Miura Co. Ltd. |
|
Generators |
3x Main diesel generatorsets each 510 kW Manufacturer: Taiyo Electric Co. Ltd. |
|
Number of holds |
5x Box shaped Holds 1/2/3/4: 27,20 x 26,10 x 12,72 m Hold 5: 28,20 x 26,10 x 12,72 m |
|
Cargo hold capacity |
Bale Hold 1: 7.333,0 m³ / 258.965 ft³ Hold 2: 9.329,3 m³ / 329.464 ft³ Hold 3: 9.337,0 m³ / 329.736 ft³ Hold 4: 9.337,0 m³ / 329.736 ft³ Hold 5: 8.863,0 m³ / 312.997 m³ Total: 44.199,30 m³ / 1.560.898 ft³ Grain: Hold 1: 7.553,9 m³ / 266.766 ft³ Hold 2: 9.640,7 m³ / 340.461 ft³ Hold 3: 9.670,4 m³ / 341.510 ft³ Hold 4: 9.670,4 m³ / 341.510 ft³ Hold 5: 9.091,0 m³ / 321.049 ft³ Total: 45.626,40 m³/ 1.611.296 ft³ |
|
Hold ventilation |
6x Mechanical, reversible, explosion proof |
|
Number of hatches |
5 Hatch 1: 16,15 x 15,40 m Hatch 2/3/4/5: 19,55 x 20,00 m |
|
Hatch type |
Folding type |
|
Max permitted loads |
Tanktop: 20,0 t/m² Hatch cover: Hatch 1: 2,7 t/m² Hatch 2,3,4,5: 3,0 t/m² |
|
Tank capacities |
Ballast: 15.401,70 m³ Diesel oil: 123,80 m³ Fuel oil: 1.539,30 m³ Lube oil: 54,25 m³ Fresh water: 309,40 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 2,5 t 1x Provisional Crane - SWL 2,5 t |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each 4x Grabs |
|
Crew |
25 |
|
Manager |
Transship bulk ul Marazliyevskaya 8 Odessa 65014 Ukraine |
|
Registered owner |
MB Tiziana Shipping Limited Level 5, The Mall Complex, The Mall Floriana, FRN 1470 Malta |
|
Latest data adjustment |
30 December 2020 |
