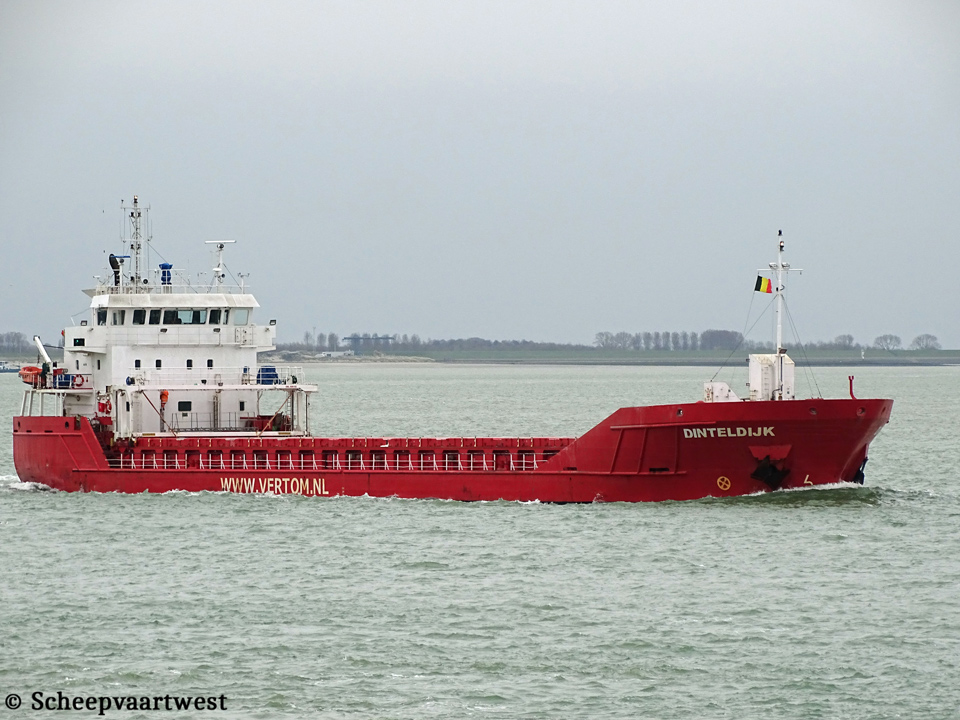

Westerschelde 20 March 2020 |
 |
 |
|

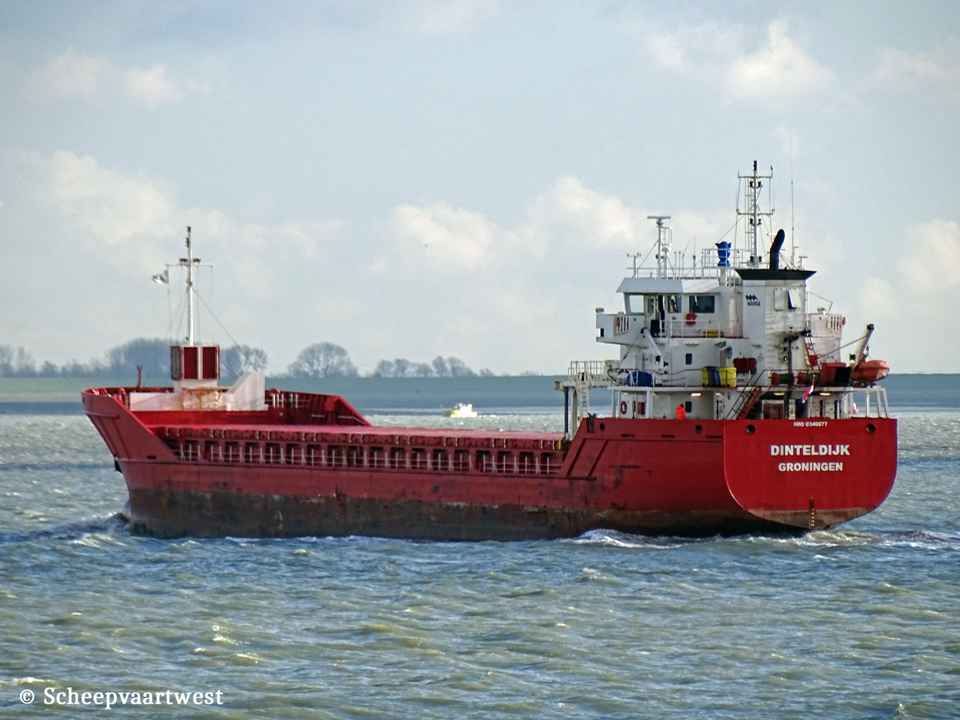

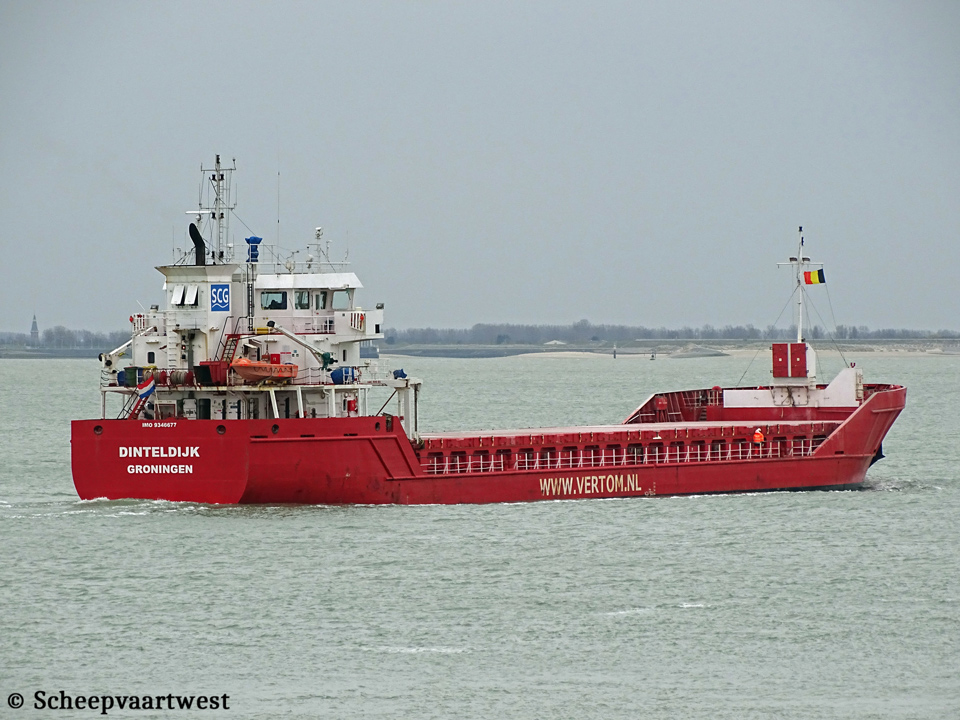

| Westerschelde 20/03/20 | Westerschelde 14/01/16 | |
|
Name |
DINTELDIJK |
|
Type |
Multi-purpose dry cargo ship - Gearless box singledecker |
|
IMO-number |
9346677 |
|
Call sign |
PHMJ |
|
Flag |
The Netherlands |
|
Port of registry |
Groningen |
|
GT |
2.984 t |
|
DWT |
Summer: 4.891 t |
|
DWCC |
Summer: 4.600 t Winter: 4.500 t |
|
NT |
1.598 t |
|
Number of 20ft containers |
38 on deck |
|
Length |
89,95 m overall 84,94 m between perpendiculars |
|
Breadth |
14,40 m extreme |
|
Draught |
Summer: 6,22 m Winter: 6,09 m |
|
Air draft |
22,50 m keel to mast end 19,00 m keel to mast down |
|
Depth |
7,85 m |
|
Speed |
11,5 knots |
|
Built |
2007 |
|
Keel laid |
27/03/2006 |
|
Launch date |
25/12/2006 |
|
Date of completion |
20/12/2007 |
|
Builder |
Chowgule & Company Pvt. Ltd. Shipbuilding Division Loutulim India |
|
Yard number |
C0174 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x In 8 positions |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 1.980 kW / 2.690 hp at 750 rpm manufacturer: M.A.K. Caterpillar Motoren G.m.b.H., Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Generators |
1x Sisu 645 DSBIG - 4 stroke 6 cylinder 111 x 145 mm diesel engine 200 kW connected with generator |
|
Emergency generator |
1x Sisu 645 DSBIG - 4 stroke 6 cylinder 111 x 145 mm diesel engine 200 kW connected with generator |
|
Bow thruster |
1x 250 kW |
|
Number of holds |
1 62,30 x11,70 x 8,12 m height Full box: Over 50,28 m |
|
Cargo hold capacity |
Grain: 5.818 m³ / 205.471 ft³ |
|
Number of hatches |
1 62,30 x 11,70 m |
|
Hatch type |
10 x Ponton hatch covers |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatch covers: 1,6 t/m² |
|
Anchor equipment |
Length: 440,00 m Diameter: 36 mm |
|
Lifting equipment |
Gantry crane for pontoons |
|
Crew |
6 |
|
Manager |
SCG Management B.V. Groningen The Netherlands |
|
Previous managers |
12/2007 - 07/2017 Navigia Shipping B.V., Groningen - The Netherlands |
|
Operator |
Vertom Group Oever 7 3161 GR, Rhoon The Netherlands |
|
Registered owner |
Dinteldijk 2.0 BV Groningen The Netherlands |
|
Previous names & owners |
12/2007 - 08/2012 Dinteldijk - C.V. Scheepvaartonderneming Dinteldijk, Groningen - The Netherlands 08/2012 - 07/ 2017 Dinteldijk - Dinteldijk II B.V., Groningen - The Netherlands |
|
Latest data adjustment |
10 April 2021 |
