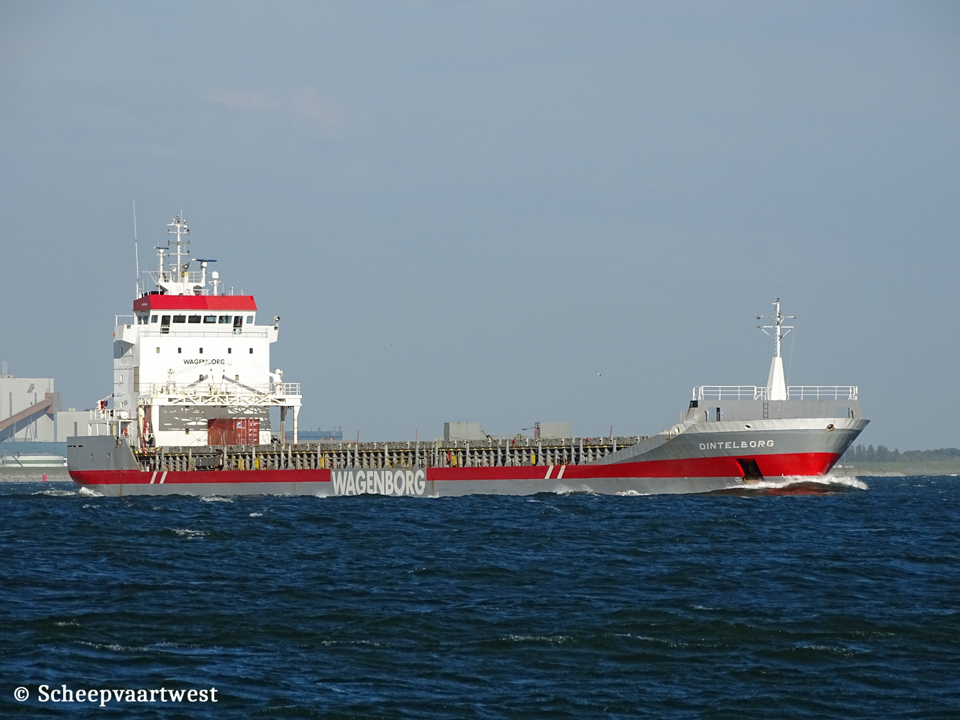

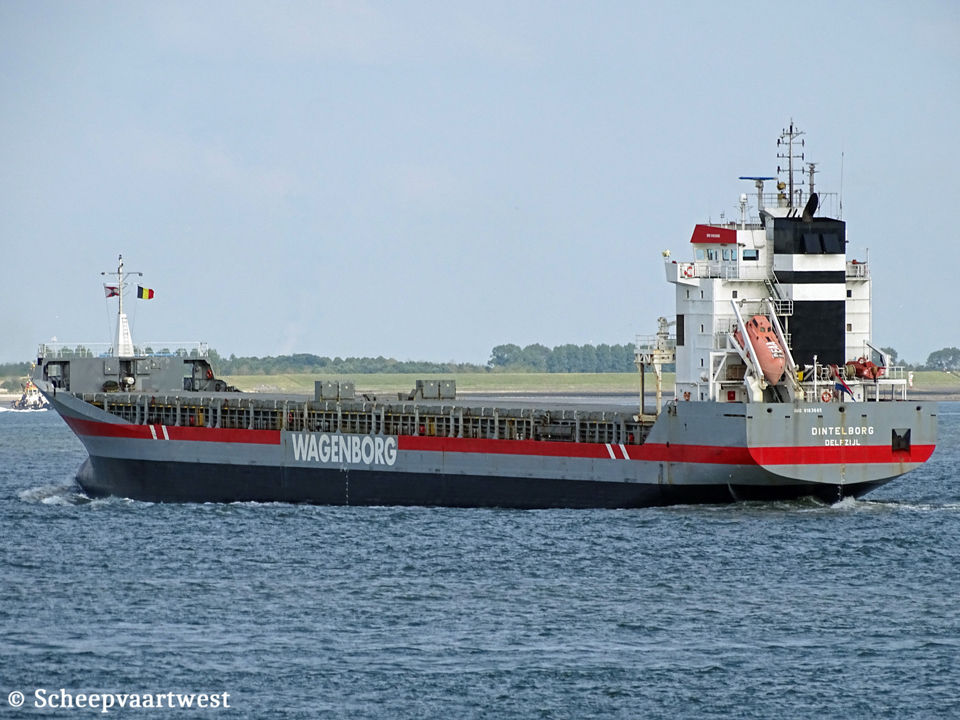

Westerschelde 20 June 2019 |
 |
| Westerschelde 14/06/19 |
|
Name |
DINTELBORG |
|
Previous names |
1999 - 07/2001 Dintelborg 07/2001 - 08/2004 MSC Dardanelles |
|
Type |
General cargo ship - Heavycargo - Container ship Open hatch, fully box |
|
IMO-number |
9163685 |
|
Call sign |
PEAA |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
6.235 t |
|
DWT |
Summer: 8.867 t |
|
DWCC |
Summer: 8.350t |
|
NT |
3.340 t |
|
Number of 20ft containers |
581 |
|
Length |
133,41 m overall 127,34 m between perpendiculars |
|
Breadth |
15,85 m overall |
|
Draught |
Summer: 7,11 m |
|
Air draft |
33,75 m in ballast |
|
Freeboard |
2.714 mm |
|
Depth |
9,80 m moulded |
|
Speed |
Max: 16,0 knots Service: 12,5 knots |
|
Built |
1999 |
|
Keel laid |
30/10/1996 |
|
Launch date |
19/02/1999 |
|
Date of completion |
04/03/1999 |
|
Builder |
Scheepswerf Van Diepen B.V. Waterhuizen The Netherlands |
|
Yard number |
1041 |
|
Hull material |
Steel |
|
Hull type |
Double skinned |
|
Watertight compartments |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 8L38 - 4 stroke single acting 8 cylinder 680 x 475 mm combustion engine 5.280 kW / 7.174 hp at 600 rpm Build: 10/07/1998 Builder: Wärtsilä NSD Nederland, B.V., Zwolle - The Netherlands |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x CHR Wierloch 78,00 m² - 13,0 bar 1x CHO Wierloch 22,20 m² - 13,0 bar |
|
Generators |
2x Main diesel generatorsets each 305 kVA - 244 kW - 353 hp |
|
Emergency generator |
1x Diesel generatorset 103 kVA - 82 kW - 109 hp |
|
Bow thruster |
1x 500 kW |
|
Number of holds |
2 Hold 1: 41,99 x 13,20 x 10,48 m Hold 2: 53,61 x 13,20 x 10,48 m |
|
Total capacity of holds |
Grain&bale: 12.671 m³ / 447.841 ft³ |
|
Hold ventilation |
10x Air changes per hour Both holds fitted with dehumidifier system |
|
Number of hatches |
2 Hatch 1: 41,99 x 13,20 m hatch 2: 53,61 x 13,20 m |
|
Tank capacities |
HFO: 553 m³ MGO: 77 m³ Water ballast: 3.414 m³ Fresh water: 53 m³ |
|
Manager |
Wagenborg Shipping B.V. Delfzijl The Netherlands |
|
Owner |
Scheepvaartonderneming Dintelborg B.V. Delfzijl The Netherlands |
|
Previous names & owners |
03/1999 - 07/2001 Dintelborg - Wagenborg Rederij B.V., Delfzijl - The Netherlands 07/2001 - 08/2004 MDC Dardanelles - Dintelborg B.V., Delfzijl - The Netherlands 08/200 - 01/2005 Dintelborg - Dintelborg B.V., Delfzijl - The Netherlands 01/2005 - 06/2006 Dintelborg - Wagenborg Capital B.V., Delfzijl - The Netherlands |
|
Latest data adjustment |
16 June 2021 |
