Westerschelde 10 June 2019 |
|
Name |

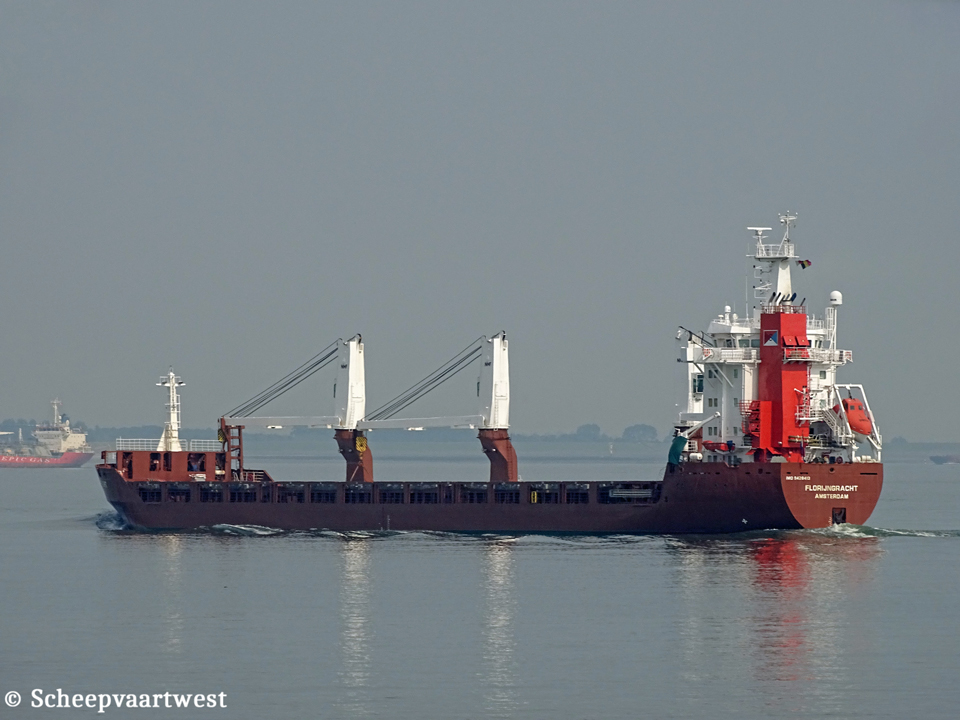

FLORIJNGRACHT |
|
Type |
Multi-purpose dry carrier |
|
IMO-number |
9428413 |
|
Call sign |
PBSU |
|
Flag |
He Netherlands |
|
Port of registry |
Amsterdam |
|
GT |
8.620 t |
|
DWT |
12.500 t excl. tweendeck 12.075 m incl. tweendeck |
|
NT |
4.651 t |
|
Number of 20ft containers |
In hold: 296 On deck: 362 Total: 658 |
|
Number of 40ft containers |
In hold: 136 + 24 TEU On deck: 186 + 62 Teu Total: 322 + 86 TEU |
|
Reefer capacity |
120 |
|
Length |
136,64 m overall 127,00 m between perpendiculars |
|
Breadth |
18,90 m moulded |
|
Draught |
Summer: 8,53 m |
|
Depth |
11,75 m moulded |
|
Speed |
Service: 14,0 knots Max: 16,0 knots |
|
Built |
2010 |
|
Keel laid |
03/09/2008 |
|
Launch date |
30/04/2009 |
|
Delivery date |
30/09/2010 |
|
Builder |
Jiangsu Changbo Shipyard Co. Rongcheng China |
|
Yard number |
06-040 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6R46 - 4 stroke single acting 6 cylinder 460 x 580 mm combustion engine 5.430 kW / 7.378 bhp at 500 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Shaft generator |
1x 640 kW |
|
Generators |
3x Mitsubishi S6R2-MPTK - 4 stroke 6 cylinder 170 x 220 mm diesel generatorset each 353 kW |
|
Emergency generator |
1x Mitsubishi - 4 stroke 6 cylinder 130 c 150 mm diesel generatorset 210 kW |
|
Bow thruster |
1x 500 kW / 700 bhp |
|
Number of holds |
3 |
|
Cargo hold capacity |
Grain: 15.772 m³ / 556.980 ft³ Timber: 17.500 m³ length packages |
|
Number of hatches |
3 N° 1: 26,60 x 15,80 m N° 2: 31,74 x 15,80 m N° 3: 26,60 x 15,80 m Tween deck: 91,94 x 15,80 m Consisting of 17 steel pontoons: 11 x 6,35 x 15,80 m 2 x 4,36 x 15,80 m 3 x 3,19 x 15,80 m 1 x 3,19 x 15,80 m |
|
Floor space |
Tanktop: 1.270 m² Tweendeck: 1.419 m² Weather deck: 1.589 m² |
|
Max permitted loads |
Weather deck hatch covers: 1,75 t/m² Tween deck hatch covers: 4,00 t/m² Tank top: 20,00 t/m² |
|
Tank capacities |
Fuel oil: 1.300 m³ Diesel oil: 170 m³ Ballast water 4.000 m³ |
|
Cargo gear |
3x NMF situated on starboard side - SWL 80,0 each |
|
Manager |
Spliethoff's Bevrachtingskantoor B.V. Radarweg 36 1042 AA Amsterdam The Netherlands |
|
Registered owner |
Rederij Florijngracht Amsterdam The Netherlands |
|
Previous owners |
10/2010 - 12/2012 C.V. Scheepvaartonderneming Florijngracht, Amsterdam - The Netherlands |
|
Latest data adjustment |
10 May 2021 |
