| Westerschelde 21 July 2015 |
|
Name |

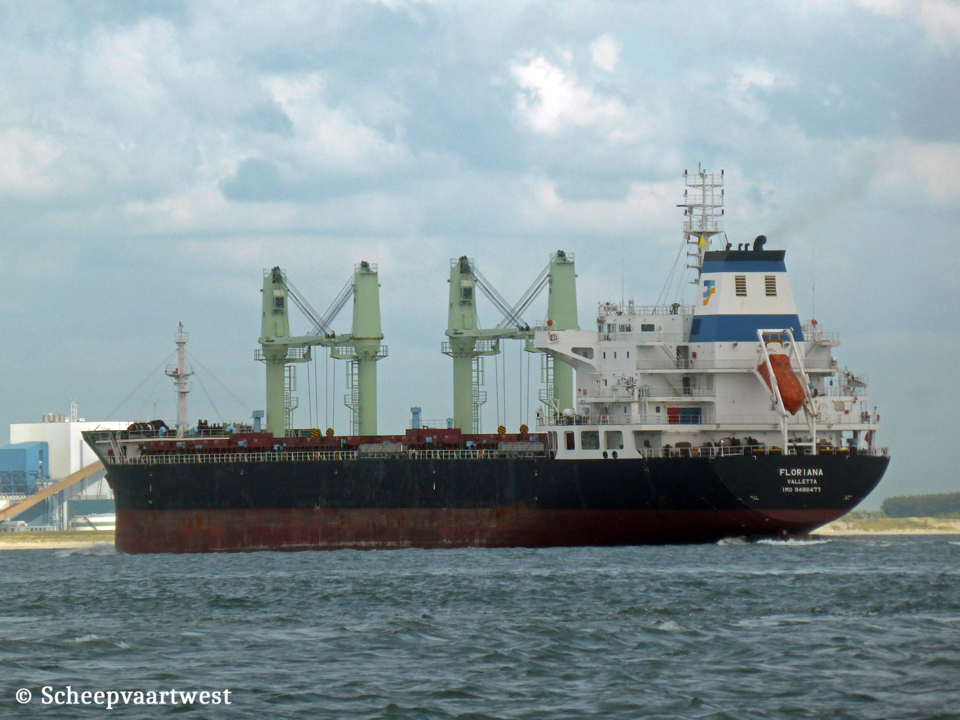

FLORIANA |
|
Type |
Bulk carrier - Carriage of dangerous goods |
|
IMO-number |
9486477 |
|
Call sign |
9HA3009 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
23.322 t Suez: 23.867,7 t |
|
DWT |
33.800,3 t |
|
NT |
11.202 t Suez: 21.160,09 t Panama: 19.426 t |
|
Displacement |
42.777,68 t |
|
Length |
181,10 m overall 172,00 m between perpendiculars |
|
Breadth |
30,04 m extreme |
|
Draught |
Summer: 9,40 m |
|
Freeboard |
4.925 mm |
|
Depth |
14,80 m moulded |
|
Speed |
Max: 13,9 knots |
|
Build |
2012 |
|
Keel laid |
06/12/2011 |
|
Launch date |
18/07/2012 |
|
Delivery date |
04/10/2012 |
|
Builder |
21st Century Shipbuilding Co., Ltd. #14-1, Bongpyung-Dong, Tongyoung-Si, Gyungnam 650-140 South Korea |
|
Yard number |
CSN1016 |
|
Hull material |
Steel |
|
Main engine |
1x HHI/MAN-B&W 6S42MC7.1 - 2 stroke 6 cylinder 420 x 1.764 mm combustion engine Mcr 6.480 kW at 136,0 rpm Manufacturer: HHI Engine & Machinery Div. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Sil La Metal Co. |
|
Boilers |
1x Fired exhaust gas boiler Mission OC Tci - 8,0 MPa Manufacturer: Alfa Laval Qingdao Ltd. |
|
Generators |
3x Main diesel generatorsets each 570 kW Manufacturer: Taiyo Electric Co., Ltd. |
|
Number of holds |
5 |
|
Cargo hold capacity |
Grain: 47.558,20 m³ Bale: 45.180 m³ |
|
Tank capacities |
Ballast: 21.118,30 m³ Fresh water: 423,90 m³ Lub oil: 130,70 m³ Diesel oil: 132,30 m³ Fuel oil: 1.607,80 m³ |
|
Lifting equipment |
1x Engine room overhead crane - SWL 2,0 t 2x Provision crane - SWL 3,0 t |
|
Cargo gear |
4x Hydraulic deck crane - SWL 30,7 t each Manufacturer: Manabe Zoki Co., Ltd. |
|
Crew |
26 |
|
ISM & commercial manager |
Transship Bulk ul Marazliyevskaya 8 Odessa, 65014 Ukraine |
|
Registered Owner |
Mb Floriana Shipping Limited - Malta Care of Transship Bulk ul Marazliyevskaya 8 Odessa, 65014 Ukraine |
|
Latest data adjustment |
05 October 2024 |
