Malaga, Spain 25 May 2021 |
|
Name |

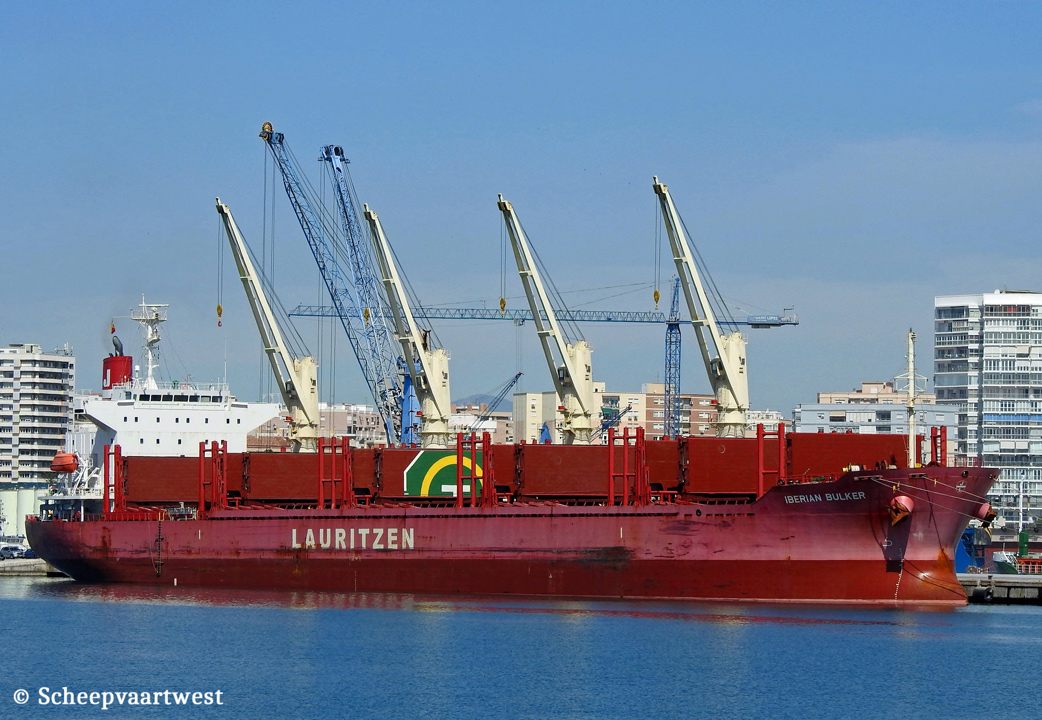

IBERIAN BULKER |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading Handymax |
|
IMO-number |
9782962 |
|
Call sign |
V7WR5 |
|
Flag |
Marshall islands |
|
Port of registry |
Majuro |
|
GRT |
23.242 t |
|
DWT |
37.668 t |
|
NRT |
12.101 t |
|
Length |
189,97 m overall |
|
Breadth |
29,80 m moulded |
|
Draught |
Summer: 10,54 m |
|
Moulded L x B x D |
173,00 x 29,80 x 15,00 m |
|
Registered L x B x D |
173,52 x 29,80 x 15,00 m |
|
Freeboard |
Summer: 4.500 mm |
|
Depth |
15,00 m moulded |
|
Speed |
Service: 14,7 knots Max: 16,0 knots |
|
Built |
2017 |
|
Keel laid |
28/04/2015 |
|
Launch date |
19/07/2016 |
|
Date of completion |
18/01/2017 |
|
Builder |
I-S Shipyard CO., Ltd. Head Office Imabari Japan |
|
Yard number |
A108 |
|
Hull material |
Steel |
|
Hull type |
Double hull construction applied to all cargo holds |
|
Main engine |
1x Makita/MAN-B&W 6S46MC-C - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 6.780 kW at 108,0 rpm Manufacturer: Corporation - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 450 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 0,80 MPa Evaporation: 1,94 t/h Manufacturer: Miura Co., Ltd. |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 456.238,00 m³ Grain: 46.994,86 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 1.945,85 m³ Fresh water: 294,84 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,5 t each |
|
Crew |
20 |
|
Manager |
Kobe Shipmanagement Company Ltd. 1-8 nadakita-doti 10-chome Nada-ku Kobe-shi,Hyogo-ken Kobe Japan |
|
Operator |
J. Lauritzen A/S 15 Tuborg Havnevej 2900 Hellerup Denmark |
|
Registered owner |
Sankalpa SA, Kobe - Japan |
|
Latest data adjustment |
05 July 2021 |
