Westerschelde 07 November 2019 |
|
Name |

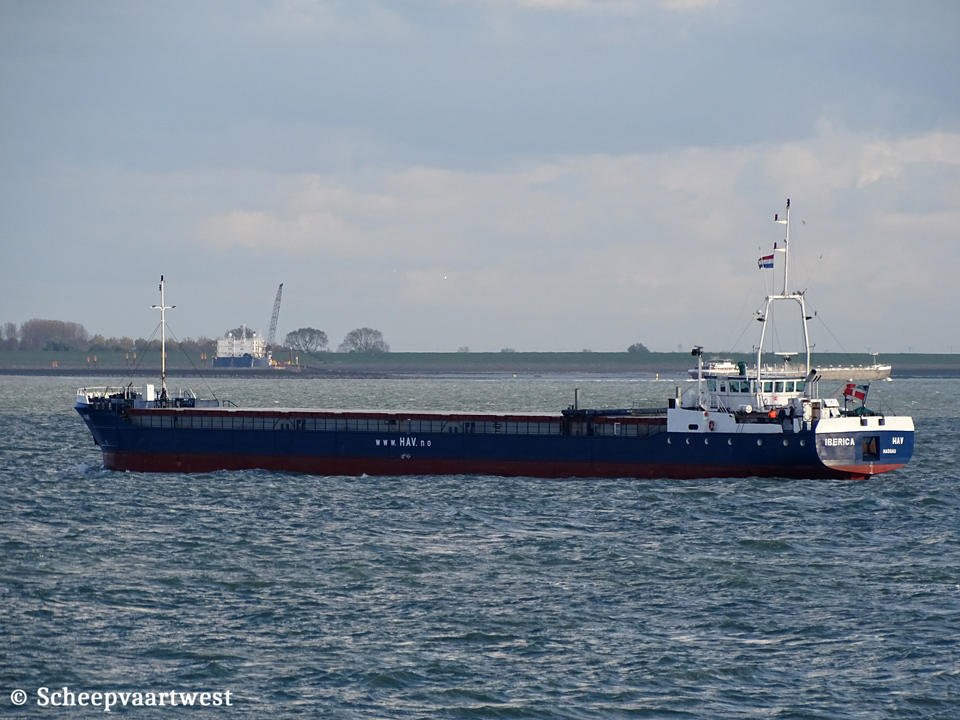

IBERICA HAV |
|
Previous names |
1999 - 03/2010 Ewald |
|
Type |
Multi-purpose dry cargo ship |
|
IMO-number |
9210012 |
|
Call sign |
C6YI3 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
Previous flags |
1999 - 03/2010 Antigua & Barbuda, St. John’s - Call sign: V2AG1 |
|
GT |
1.599 t |
|
DWT |
Summer: 2.219,5 t |
|
DWCC |
Sumer: 2.150 t Winter: 2.070 t |
|
NT |
691 t |
|
Length |
87,92 m overall 84,98 m between perpendicular |
|
Breadth |
11,40 m extreme 11,31 m moulded |
|
Draught |
Summer: 3,68 m |
|
Keel to top with antenna |
20,00 m |
|
Air draft |
Min: 6,10 m Max: 19,50 m |
|
Depth |
5,40 m moulded |
|
Speed |
10,0 knots |
|
Built |
1999 |
|
Keel laid |
06/11/1998 |
|
Launch date |
17/07/1999 |
|
Date of completion |
04/11/1999 |
|
Builder |
B.V. Scheepswerf De Kaap Meppel The Netherlands |
|
Yard number |
230 |
|
Hull material |
Steel |
|
Main engine |
1x MaK 6M20 - 6 cylinder combustion engine 749 kW / 1.020 hp at 1.000 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Bow thruster |
1x 330 kW |
|
Number of holds |
1x Fully boxed 60,20 x 9,00 x 5,50 m |
|
Cargo hold capacity |
Grain & bale: 3.020 m³ / 106.632 ft³ |
|
Hold ventilation |
6x Air-changes/hours |
|
Number of hatches |
1 61,80 x 9,27 m |
|
Hatch type |
Gantry - multi stack |
|
Max permitted loads |
Hatch covers 1,6 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
Water ballast: 1.378 t Gas oil: 114 m³ |
|
Anchor equipment |
Length; 385,00 m Diameter: 30 mm Fresh water: 32 m³ |
|
Crew size |
6 |
|
Manager |
HAV Ship Management NorRus AS Filipstadveien 5 0250 Oslo Norway |
|
Registered owner |
Hav Bulk AS Apeltunlien 14 5238 Rådal - Bergen Norway |
|
Latest data adjustment |
01 December 2020 |
