Westerschelde 06 February 2020 |
 |
| Westerschelde 06/02/20 |
|
Name |

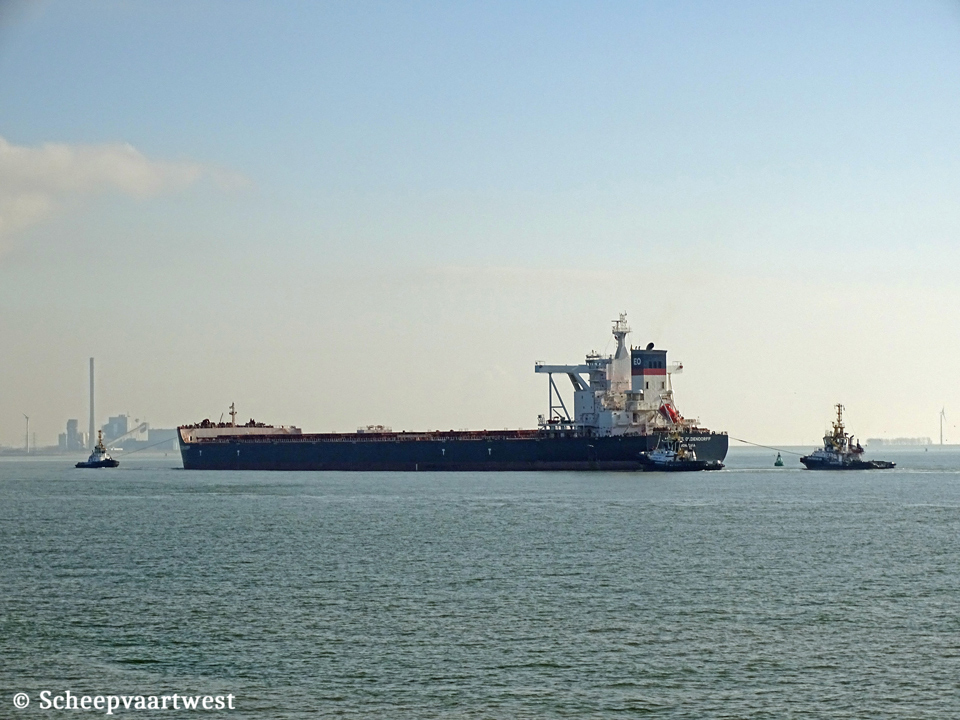

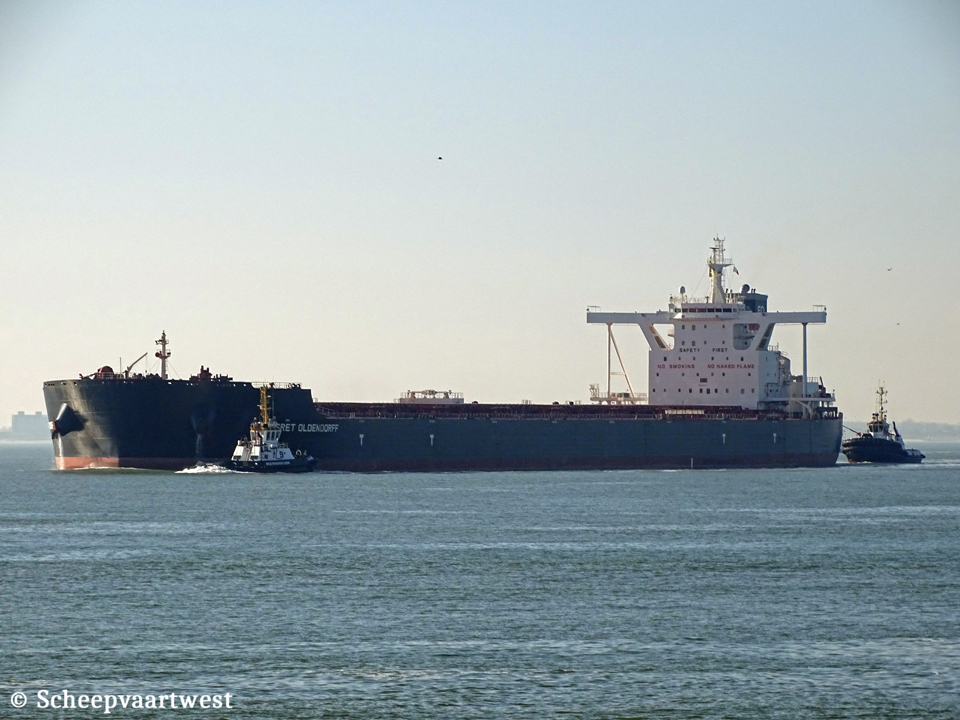

MARGET OLDENDORFF |
|
Type |
Bulk carrier |
|
IMO-number |
9648908 |
|
Call sign |
D5FS9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
108.051 t |
|
DWT |
Summer: 208.086 t Suez: 110.857,43 t |
|
NT |
69.533 t Panama: 103.672 t Suez: 102.062,33 t |
|
Displacement |
238.014 t |
|
Length |
299,88 m overall 294,00 m between perpendiculars |
|
Breadth |
50,00 m moulded |
|
Draught |
Summer: 18,40 m |
|
Freeboard |
6.537 mm |
|
Depth |
25,00 m moulded |
|
Built |
2014 |
|
Keel laid |
29/11/2015 |
|
Launch date |
16/06/2014 |
|
Delivery date |
26/09/2014 |
|
Builder |
Shanghai Waigaoqiao Shipbuilding Co., Ltd. 3001 Zhouhai Road Pudong New Area Shanghai, 200137 China |
|
Yard number |
H1276 |
|
Hull material |
Steel |
|
Main engine |
CMD/MAN-B&W 6G70ME-C9.2 - 6 cylinder 700 x 3.256 mm combustion engine 16.400 kW at 77,0 rpm |
|
Propellers |
1 Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
1c Composite boiler - 7,0 MPa Manufacturer: Greens Power Equipment (China) Ltd. |
|
Generators |
3x Main diesel generatorsets each 900 kW Manufacturer: Taiyo Electric Co., Ltd. |
|
Number of hold |
9 |
|
Cargo hold capacity |
224.796 m³ |
|
Number of hatches |
9 |
|
Tank capacities |
Ballast: 169.935,90 m³ Fresh water: 688,70 m³ Lub oil: 464,70 m³ Diesel oil: 675,10 m³ Fuel oil: 5.265,70 m³ |
|
Lifting equipment |
1x Electric hydraulic provision crane - SWL 3,0 t 1x Electric hydraulic provision crane - SWL 8,0 t Manufacturer: Ningbo Kairong Ship Machinery Co., Ltd. 1x Engine room crane - SWL 10,0 t Manufacturer: Jiangyin Chengjiang Ships Equipment Co., Ltd. |
|
Crew |
28 |
|
Manager |
Oldendorff Carriers GmbH & Co., KG Willy-Brandt-Allee 6 23554 Lübeck Germany |
|
Registered owner |
Strawberry Fields Management Corporation |
|
Latest data adjustment |
21 June 2021 |
