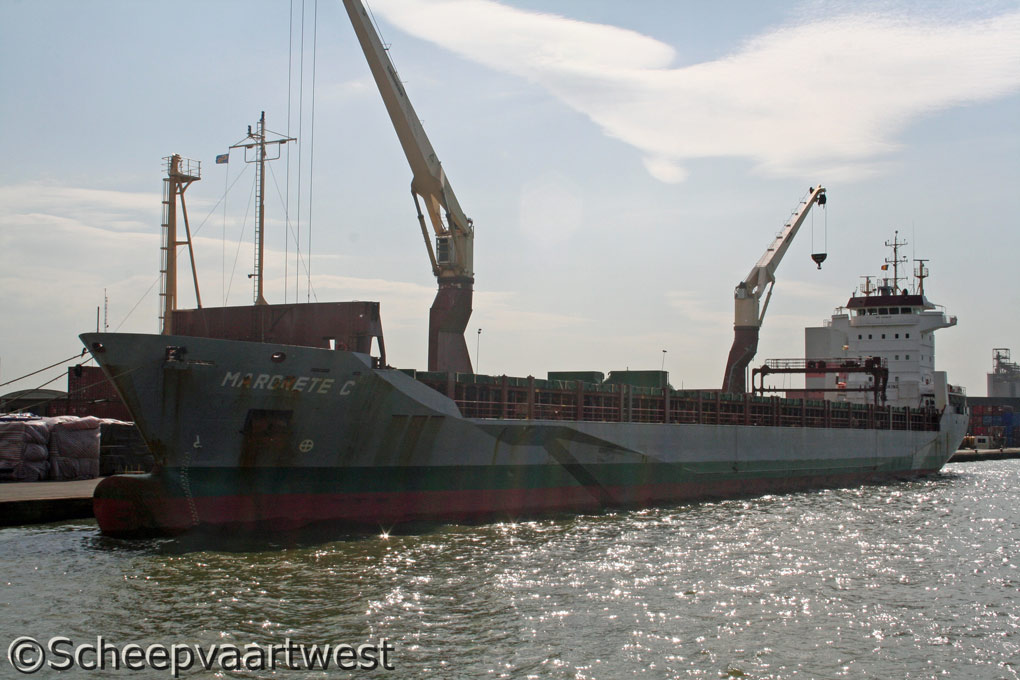

Margrete C 01
Antwerpen 20 May 2011



Name

MARGRETE C

Previous names

Margrete-C

Cordillera

Type

Multi-purpose dry cargo ship

Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9258234

Call sign

VSQG5

Flag

Isle of Man - United Kingdom

Port of registry

Douglas

GT

7.511

DWT

10.596 t

NT

3.870 t

Number of 20ft containers

In hold: 291

On deck: 377

Total number: 668

Length

142,69 m overall

136,70 m registered

Breadth

18,25 m registered

Draught

7,325 m

Forecastle

9,63 m

Poop

11,72 m

Air draft

31,06 m

Depth

10,15 m moulded

Speed

14,0 knots

Built

2002

Keel laid

05.09.2000

Launch date

08.08.2001

Date of completion

02.2002

Delivery

09.2002

Builder casco

Damen Shipyard Galatz
Galati
Romania

Builder completion

Damen Shipyards Hoogezand
Scheepswervenweg 13
9007 PX Hoogezand
The Netherlands

Yard number

815

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

5

Continuous decks

1

Main engine

1x MaK 9 M 32 - 4 stroke 9 cylinder 320 x 480 mm diesel engine - 4.320 kW at 600 rpm

Year of manufacture: 2001

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propeller

1x Controllable pitch propeller - aft at 155 rpm

Boilers

1x Thermal oil heater, oil fired - 13,0 bar

Heating surface: 17,5 m²

1x Thermal oil heater, exhaust gas heated - 13,0 bar

Heating surface: 80,0 m²

Year of manufacture: 2000

Manufacturer: Aalborg Boiler Production
Gasvaerksvej 40
9100 Aalborg
Kingdom of Denmark

Electric installations

1x Plant 380/220 V - 330 kVA

1x Plant 380/220 V - 330 kVA

1x Plant 380/220 V - 330 kVA

1x Plant 380 V - 550 kVA

1x Plant 380 V -120 kVA

Shaft generator

1x 550 kVA

Diesel generators

3x Scania DL 12 45 M diesel generatorsets each 330 kVA

Emergency generator

1x Diesel generatorset 120 kVA

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

Bow thruster

1x Variable pitch propeller LIPS - 400 kW, forward

Hold dimension

Hold sizes 1: 38,95 m x 13,15 m x 11,05 m
Hold sizes 2: 65,41 m x 13,15 m x 11,05 m

Hold capacity

Hold 1: 5.225 m³ / 184.519 ft³

Hold 2: 9.470 m³ / 334.430 ft³

Total: 14.695 m³ / 518.949 ft³

Hatch dimension

Hatch sizes 1: 38,95 m x 13,15 m
Hatch sizes 2: 65,41 m x 13,15 m

Lifting devices

2x Starboard side mounded Liebherr cargo cranes - SWL 60 ton/16 m, 40 ton/26 m, 30 ton/28,4 m

Tank capacities

Heavy fuel oil: 565 m³

Gas oil: 59 m³

Water ballast: 5.411 m³

Anchor equipment

3x Anchors weight each 3.540 kg

Chain length: 522,50 m

Manager

Carisbrooke Shipping (Management) GmbH
Ledastrasse 24
26789 Leer
Federal Republic of Germany

Owner

MS "MARGRETE C" Carisbrooke Schiffahrtsges. mbH & Co. KG
Ledastr 24
26789 Leer
Federal Republic of Germany
