Westerschelde 04 April 2019 |
|
Name |

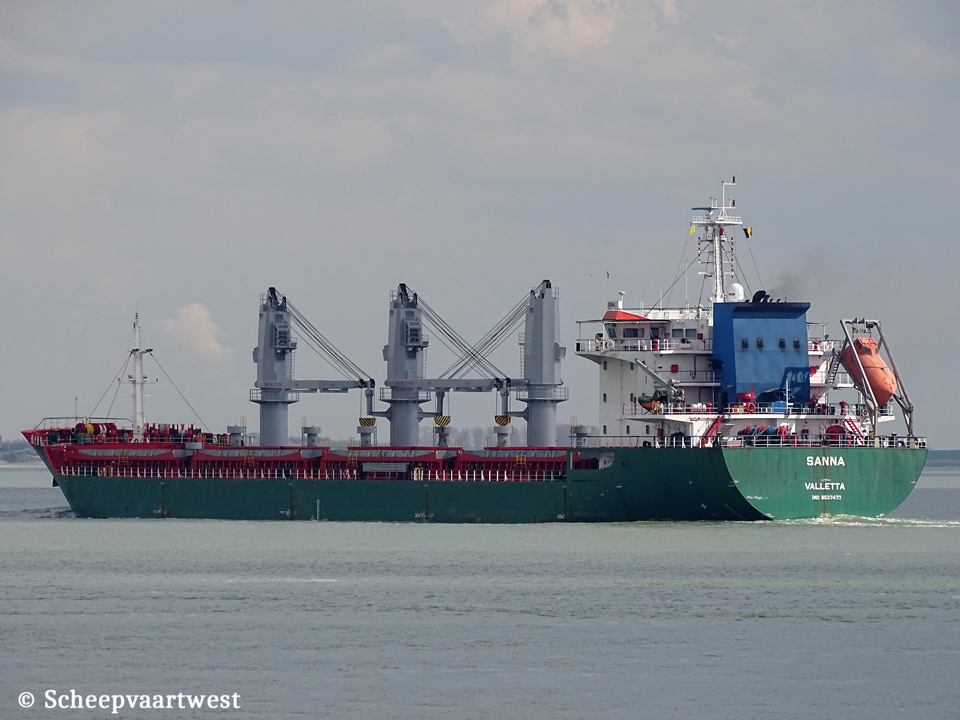

SANNA |
|
Previous names |
2009 - 2017 Skagen |
|
Type |
Multi-purpose dry cargo ship - Open Hatch/Box Shaped - Strengthened for heavy cargoes |
|
IMO-number |
9537472 |
|
Call sign |
9HA4225 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2009 - 2016 Republic of Panama, Panama City - Call sign: 3FXE2 |
|
GT |
11.927 t |
|
DWT |
Summer: 16.807,94 t |
|
DWCC |
Summer: 16.000 t Winter: 15.500 t |
|
NT |
5.507 t |
|
Length |
147,55 m overall 139,20 m between perpendiculars |
|
Breadth |
23,04 m extreme |
|
Draught |
Summer: 8,25 m Winter: 8,05 m |
|
Air draft |
37,75 m in ballast |
|
Depth |
11,80 m moulded |
|
Speed |
12,0 knots |
|
Built |
2009 |
|
Keel laid |
28/10/2008 |
|
Launch date |
30/04/2009 |
|
Date of completion |
21/10/2009 |
|
Builder |
Zhejiang Linhai Haifeng Shipbuilding Industry Co., Ltd. Linhai ZJ China |
|
Yard number |
HC 0702 |
|
Hull material |
Steel |
|
Hull type |
Double skin |
|
Continuous decks |
1 |
|
Main engine |
1x MAN B&W 9L32/40 - 4 strtoke single acting 9 cylinder 320 x 400 mm combustion engine 4.320 kW / 5.873 bhp at 750 rpm Builder: Shaanxi Diesel Heavy Industry Co Ltd. - China |
|
Propellers |
1x Fixed pitch propeller - aft at 125,0 rpm |
|
Boilers |
1x Auxiliary boiler, composite LZY 0.8/140-0.7 (Combined) |
|
Generators |
3x Cummins KTA 19-D(M) - 4 stroke 6 cylinder 159 x 159 mm diesel engines each Mcr 450 kW connected with generators eéach 403 ekW |
|
Emergency generator |
1x Cummins 6 CTA 8.3-GM 155 diesel generatorset |
|
Number of holds |
4 #1: 25,91 x 5,58/17,58 x 12,50 m #2: 25,91 x 17,58 x 12,50 m #3: 25,91 x 17,58 x 12,50 m #4: 26,63 x 17,58/11,87 x 12,50 m |
|
Cargo hold capacity |
Grain: #1: 5.103,1 m³ #2: 5.510,0 m³ #3: 5.510,0 m³ #4: 5.525,7 m³ Total: 21.648,8 m³ |
|
Hold ventilation |
6x Air changes/hour |
|
Number of hatches |
4 #1: 19,34 x 17,50 m #2: 19,34 x 17,50 m #3: 19,34 x 17,50 m #4:.19,34 x 17,50 m |
|
Hatch type |
Hydraulic folding type |
|
Max. permitted loads |
Tanktop: 13,0 t/m² Hatchcover: 1,5 t/m² |
|
Tank capacities |
Ballast: 7.554,3 m³ HFO: 527 m³ MGO: 101 m³ Fresh water: 238 m³ |
|
Anchor equipment |
Length: 550,00 m Diameter: 54 mm |
|
Cargo gear |
3x Deck cranes - SWL 25,0 t each positioned amidships |
|
Accommodation |
21 |
|
Commerical manager |
Nednor BV Peizerweg 87 9727 AH Groningen The Netherlands |
|
Registered owner |
Sanna BV |
|
Renamed |
2019 Transwind Portugal, Madeira - Call sign: CQAS8 Owner: Sand One Holdings Ltd., Rga - Latvia Manager: RIX Shipmanagement SIA, Rga - Latvia |
|
Latest data adjustment |
22 July 2021 |
