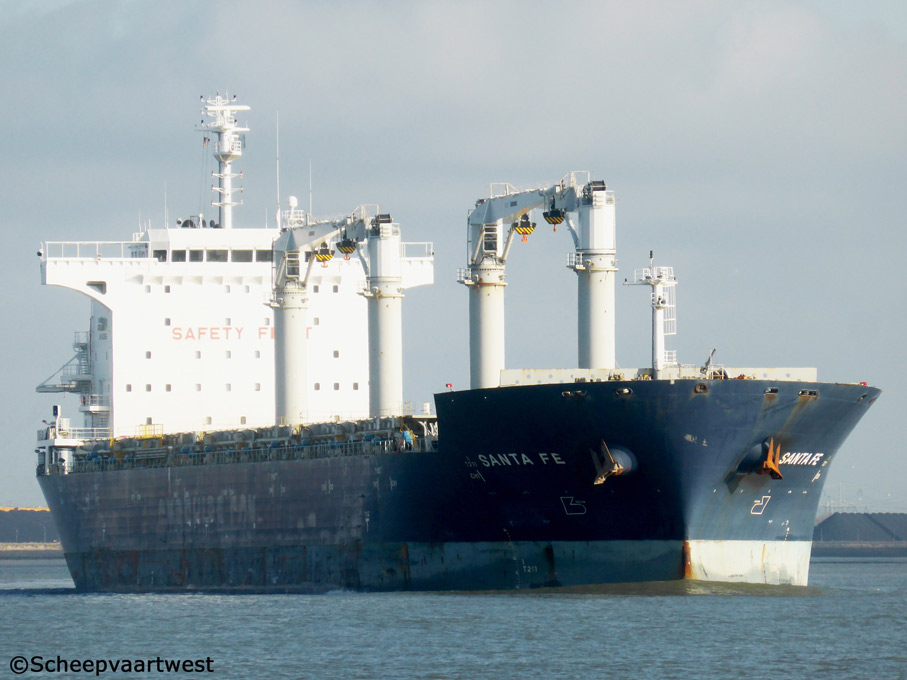

Westerschelde 27 January 2015 |
 |

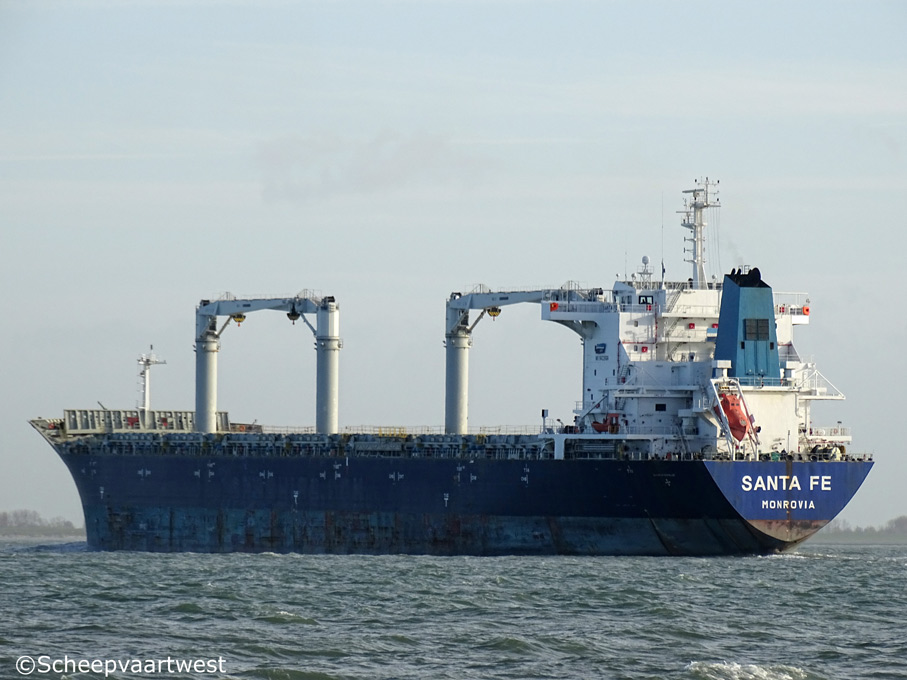

| Westerschelde 23/12/15 |
|
Name |
SANTA FE |
|
Previous names |
2010 Launch as: Biscay Sea 06.2010 - 01.2012 Asteria |
|
Type |
General cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9423566 |
|
Call sign |
A8UQ8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
35.240 t |
|
DWT |
Summer: 52.928,2 t |
|
NT |
16.425 t |
|
Number of 20ft containers |
In hold: 1.298 On deck: 735 Total: 2.033 |
|
Number of 40ft containers |
In hold: 210 On deck: 90 Total: 300 |
|
Length |
196,22 m overall 186,76 m between perpendiculars 188,36 m registered |
|
Breadth |
32,25 m moulded |
|
Draught |
13,25 m |
|
Depth |
19,50 m moulded |
|
Speed |
Service: 15,0 knots |
|
Built |
2010 |
|
Keel laid |
18.11.2008 |
|
Launch date |
07.12.2009 |
|
Date of completion |
28.06.2010 |
|
Builder |
Zhejiang Shipping Group Zhoushan Wuzhou Ship Repairing & Building Co., Ltd. |
|
Yard number |
WZ0070605 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Partly double bottom |
|
Watertight bulkheads |
12 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN B&W 7S50MC-C Mk7 - 2 stroke 7 cylinder 500 x 2.000 mm diesel engine - 11.060 kW at 127,0 rpm Year of manufacture: 2009 Manufacturer: STX Engine Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 127,0 rpm Diameter: 5.800 mm - 4 blades |
|
Boilers |
1x Steam boiler, oil fired - 8,0 bar Heating surface: 13,35 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 208,0 m² Year of manufacture: 2009 Manufacturer: Alfa Laval Qingdao Ltd. |
|
Electric installations |
3x Plants each 450 V - 1.081 kVA 1x Plant 450 V - 150 kVA 2x Plants each 24 V - 117 Ah 2x Plants each 24 V - 160 Ah 2x Plants each 24 V - 180 Ah 2x Plants each 24 V - 200 Ah |
|
Generators |
3x MAN B&W 7L23/30H main diesel generatorsets each 1.081 kVA |
|
Emergency generator |
1x D2866 E20 diesel generatorset 150 kVA / 120 kW at 1.800 rpm |
|
Batteries |
2x Batteries for UPS navigation each 200 Ah 2x Batteries for start emergency engine each 180 Ah 2x Batteries for automation each 160 Ah 2x Batteries for UPS radio each 117 Ah |
|
Compressed air receivers |
2x Receivers each 4.500 litres - 30,0 bar 1x Receiver 320 litres - 30,0 bar 1x Receiver 250 litres - 12,0 bar 1x Receiver 1/000 litres - 11,0 bar 1x Receiver 100 litres - 10,0 bar |
|
Number of holds |
8 Hold 1: dim. 14,28 x 16,18 x 9,96 m Hold 2-7: dim. 16,72 x 27,50 x 19,50 m Hold 8: dim. 14,28 x 27,50 x 19,50 m |
|
Hold capacity |
Grain: 64.231 m³ |
|
Hatches |
1x Hatch welded steel construction/ folding type TTS hydraulically operated "trans-folding" hatch cover 14,00 x 16,00 m 1x Hatch welded steel construction/ TTS electrically & hydraulically operated "piggy-back" hatch covers 17,07 x 27,92 m 1x Hatch welded steel construction/ folding type TTS hydraulically operated "trans-folding" hatch cover 14,64 x 27,92 m |
|
Tank capacities |
Heavy fuel oil: 2.153,1 m³ Marine diesel oil: 124 m³ Lub oil: 136,69 m³ Ballast water: 21.535,9 m³ Fresh water: 279 m³ |
|
Anchor equipment |
3x Anchors weight each 10.500 kg Chain length: 660,00 m Diameter: 78 mm |
|
Cargo gear |
4x Single crane - SWL 45,0t each |
|
Crew size |
For a crew of 25 persons with heating, ventilation and air-conditioning |
|
Manager |
NSC Shipping GmbH & Cie. KG |
|
Previous managers |
2010 - 2012 NSC Schifffahrtsgesellschaft mbH & Cie. KG |
|
Registered owner |
MS "BISCAY SEA" Schifffahrtsgesellschaft mbH & Co. KG |
|
Previous owners |
2010 - 2010 NSC Schifffahrtsgesellschaft mbH & Cie. KG 2010 - 2010 MS "BEAGLE SEA" Schifffahrtsgesellschaft mbH & Co. KG 2010 - 2010 NSC Schifffahrtsgesellschaft mbH & Cie. KG |
|
Latest data adjustment |
13 February 2016 |
