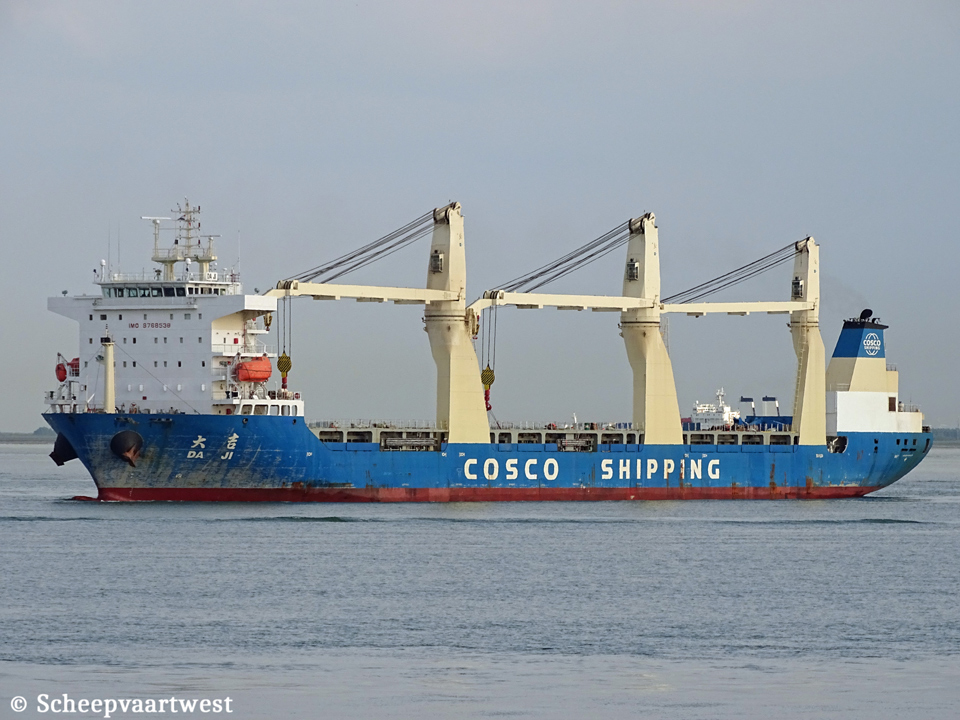

Da Ji IMO 9768538 01

Westerschelde 23 May 2019

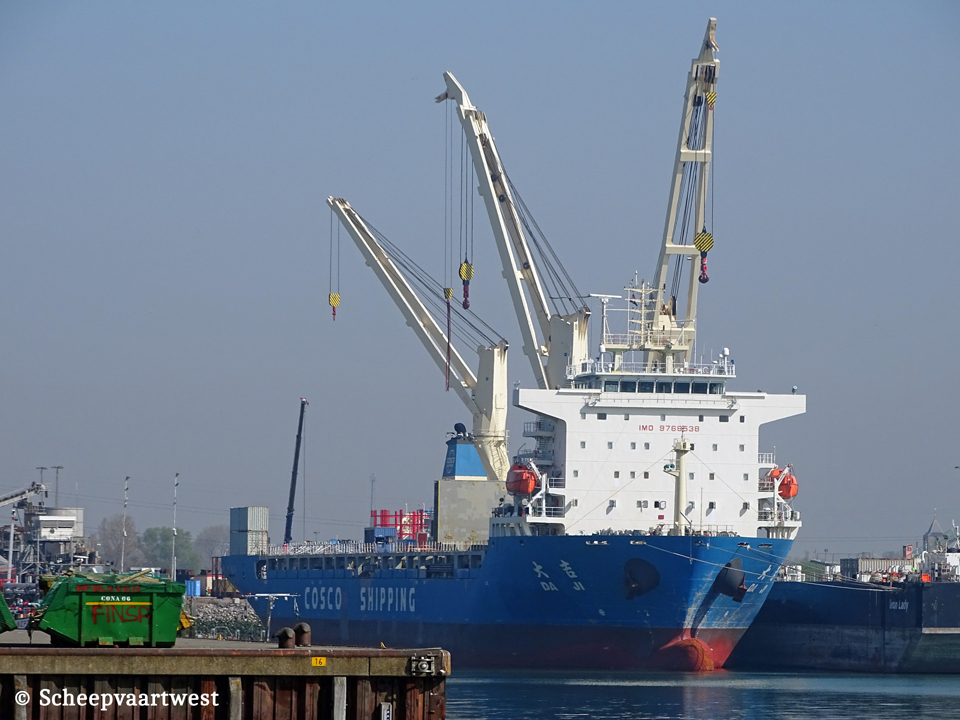

Da Ji IMO 9768538 02
Vlissingen (NL) 20/04/18


Name

DA JI

Chinese name

大 吉

Type

General dry cargo ship

IMO-number

9768538

Call sign

BOUF

Flag

China

Port of registry

Guangzhou

GT

21.992 t

DWT

28.612 t

NT

9.390 t

Number of 20ft containers

On deck: 1.035

Length

179,67 m overall

170,60 m between perpendiculars

Breadth

28,00 m moulded

Draught

9,20 m

Deckhouse

11,25 m

Forecastle

14,49 m

Bridge

12,25 m

Poop

19,80 m

Freeboard

4.332 mm

Depth

14,80 m moulded

Speed

Max: 15,0 knots

Built

2016

Keel laid

22/12/2015

Launch date

18/07/2016

Date of completion

19/12/2016

Builder

Shanghai Shipyard

China

Yard number

1238

Hull material

Steel

Bulkheads

12

Number of decks

2

Upper deck - Tween deck

Main engine

1x Wärtsilä 6RT-Flex50D - 6 cylinder 7.000 kW at 95,0 rpm

Build: 01/06/2016

Manufacturer: Hu Dong Heavy Machinery Co., Ltd., Shanghai - China

Boilers

1x 0,7 MPa /221 m²

1x 0,7 MPA / 30 m²

Manufacturer: Zhangjiagang Greens-shazhou Boiler Co., Ltd.

Generators

3x HFC6 504-14E main diesel generatorsets each 700 ekW / 450 Volt

Number of holds

3

Cargo hold capacity

Grain

Hold 1 Cargo hold 8.421,70 m³

Hold 2 Cargo hold 18.275,80 m³

Hold 3 Cargo hold 8.986,80 m³

Total: 35.684,3 m³

Hatches

1x 54,00 x 23,20 m

1x 30,00 x 23,20 m

1x 26,25 x 23,20 m

Tank capacities

Ballast: 10.115 m³

Anchor equipment

1x Deck crane - SWL 100 t

2x Deck cranes - SWL 350 t each

Lifting equipment

1x Crane - SWL 2,0 t

Engine room overhead crane - SWL 1,3 t

Manager

COSCO Shipping Specialized

Operator

COSCO Shipping Specialized Carriers Co., Ltd.

Registered owner

COSCO Shipping Specialized Carriers Co., Ltd.

Latest data adjustment

17 August 2021
