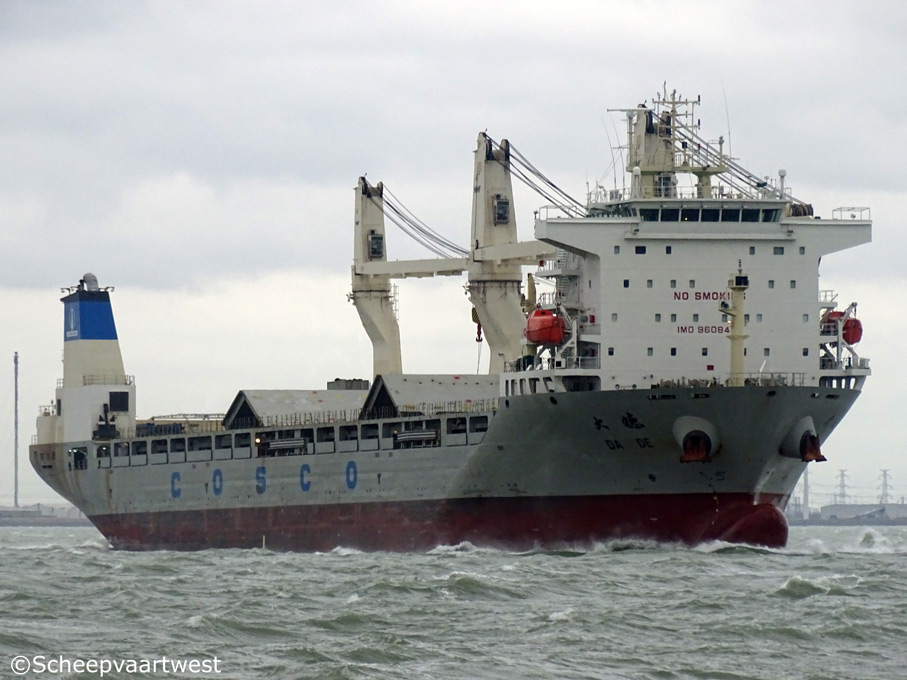

Da De 01

Westerschelde 22 December 2015

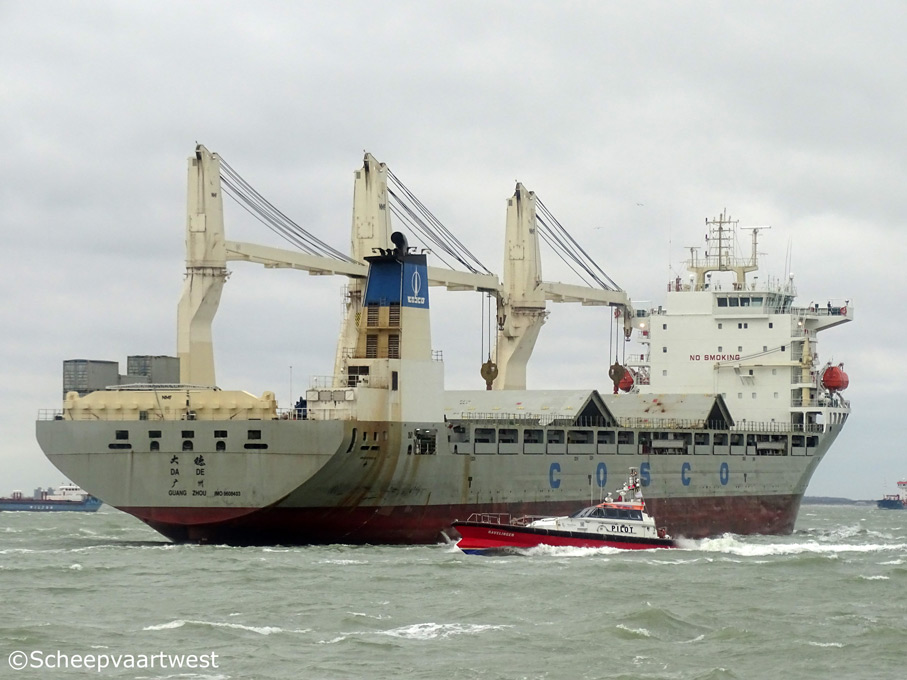

Da De 02
Westerschelde 22/12/15



Name

DA DE

Type

General dry cargo ship - Heavy lift

Equipped with container securing arrangements

IMO-number

9608403

Call sign

BOEM

Flag

China

Port of registry

Guangzhou

GT

21.828 t

DWT

Summer: 29.572,2 t

NT

9.495 t

Number of 20ft containers

1.035

Number of 40ft containers

490

Length

179,57 m overall

170,00 m between perpendiculars

Breadth

28,00 m moulded

Draught

10,50 m

Forecastle

14,39 m

Deckhouse

15,90 m

Freeboard

4.332 mm

Depth

14,80 m moulded

Speed

15,2 knots

Built

2011

Date of completion

14.07.2014

Builder

Shanghai Shipyard Co.,Ltd.
Shanghai
China

Hull material

Steel

Bulkheads

12

Number of decks

2

Upper deck

Tween deck

Main engine

1x MAN-B&W-Hudong 6S50ME-C8.1 - 2 stroke 6 cylinder 500 x 2.000 mm diesel engine 9.960 kW at 127,0 rpm

Built: 05.03.2013

Builder: Hu Dong Heavy Machinery Co.,Ltd. - China

Propellers

1x Fixed propeller

Boilers

2x boiler - 8,0 bar - 30 m²

2x Boiler - 8,0 bar - 320 m²

Built: 01.03.2013

Builder: Zhangjiagang Greens-shazhou Boiler Co.,Ltd.

Generators

3x Nishishiba NTAKL-VE diesel generatorsets each 700 kVA / 450 Volt

Bow thruster

1x 900 kW

Number of holds

3

Cargo hold capacity

Bale:

Hold 1: 8.477,60 m³
Hold 2: 18.189,80 m³
Hold 3: 9.738,30 m³

Total: 36.405,7 m³

Number of hatches

3

2x 23,20 x 30,00 m

1x 23,20 x 54,00 m

Tank capacities

Ballast: 11.977 m³

Cargo gear

2x Cranes - SWL 350 t

1x Crane - SWL 100 t

Manager

COSCO Heavy Transport
Beijing
China

Operator

COSCO - Shipping Company Limited

Owner

COSCO Shipping Co., Ltd.

Latest data adjustment

13 February 2016
