Westerschelde 07 September 2018 |
|
Name |

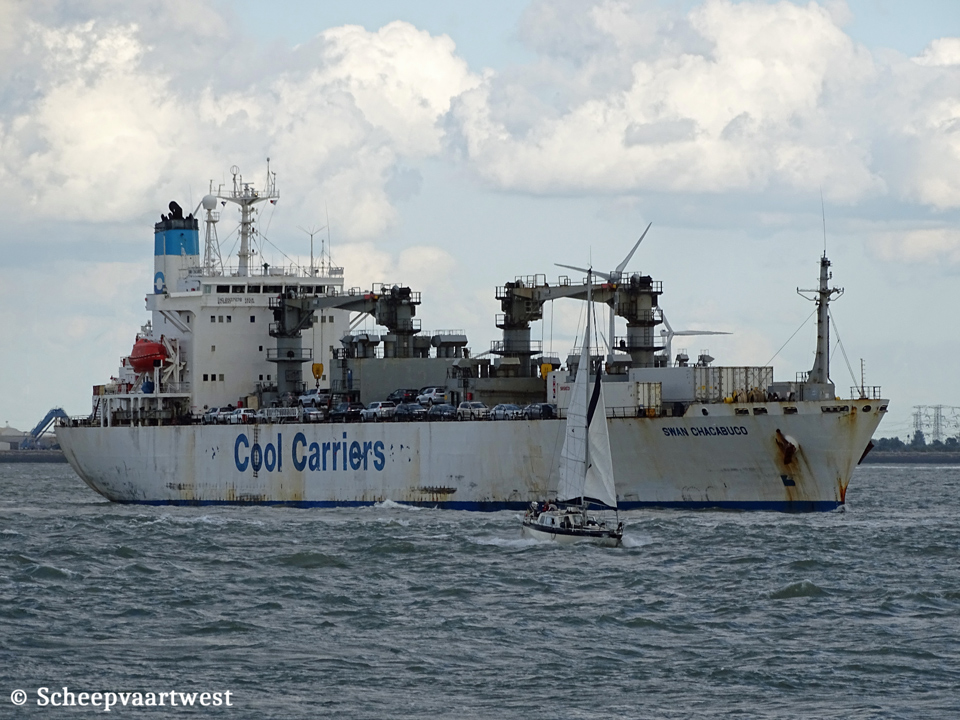

SWAN CHACABUCO |
|
Previous names |
1990 - 10/1997 Chacabuco |
|
Type |
Refrigerated cargo ship |
|
IMO-number |
8907876 |
|
Call sign |
C6TJ6 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
Previous flags |
1990 - 1997 Liberia 1997 - 1999 Norway, Oslo - Call sign: LAGO5 1999 - 2003 Liberia |
|
GT |
13.099 t |
|
DWT |
Summer: 12.974 t |
|
NT |
4.796 t |
|
Number of 20ft containers |
306 |
|
Reefer capacity |
27 |
|
Length |
152,00 m overall 144,00 m between perpendiculars |
|
Breadth |
23,50 m |
|
Draught |
Summer: 9,01 m |
|
Depth |
15,70 m |
|
Speed |
Max: 18,5 knots |
|
Built |
1990 |
|
Launch date |
10/02/1990 |
|
Date of completion |
10/05/1990 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. Onishi Shipyard Japan |
|
Yard number |
2665 |
|
Hull material |
Steel |
|
Hull type |
Single hull double bottom |
|
Continuous decks |
5 |
|
Main engine |
1x Mitsui/MAN-B&W - 2 stroke 6 cylinder combustion 500 x 1.910 mm engine 7.134 kW / 9.700 bhp at 123,0 rpm Manufacturer: Mitsui Engineering Co. Ltd, Tamano - Japan |
|
Propellers |
1x Screw propeller |
|
Boilers |
1x CHO 29,50 m² - 6,0 bar 1x CHR 29,50 m² - 6,0 bar |
|
Generators |
3x Yanmar T240L-SX main diesel generatorsets each 850 kVA - 680 kW - 1.000 hp |
|
Emergency generator |
1x Yanmar M200L-SX diesel generatorset 500 kVA - 400 kW - 600 hp |
|
Number of holds |
4 |
|
Number of hatches |
4 |
|
Tank capacities |
HFO: 1.291 t Diesel oil: 170 t |
|
Lifting equipment |
2x Cranes - SWL 0,5 t 2x Cranes - SWL 2,0 t 2x Crane - SWL 12,5 t 2x Cranes - SWL 30,0 t |
|
Crew size |
30 |
|
Manager |
Chartworld Shipping Corporation Athens Creece |
|
Registered owner |
Blyth Shipholding SA |
|
Previous names & owners |
1990 Chacabuco - Chillan Sg Co. SA 1997 Swan Chacabuco - Swan Reefer IV A/S 2003 Swan Chacabuco - Star Reefers Shipowning Inc. 2004 Swan Chacabuco - Blyth Shipholding SA 2019 Swan - Blyth Shipholding SA |
|
Scrapped |
27/08/2019 Beached at Gadani - Pakistan Scrapped as Swan |
|
Latest data adjustment |
23 August 2021 |
