Westerschelde 08 August 2014 |
|
Name |

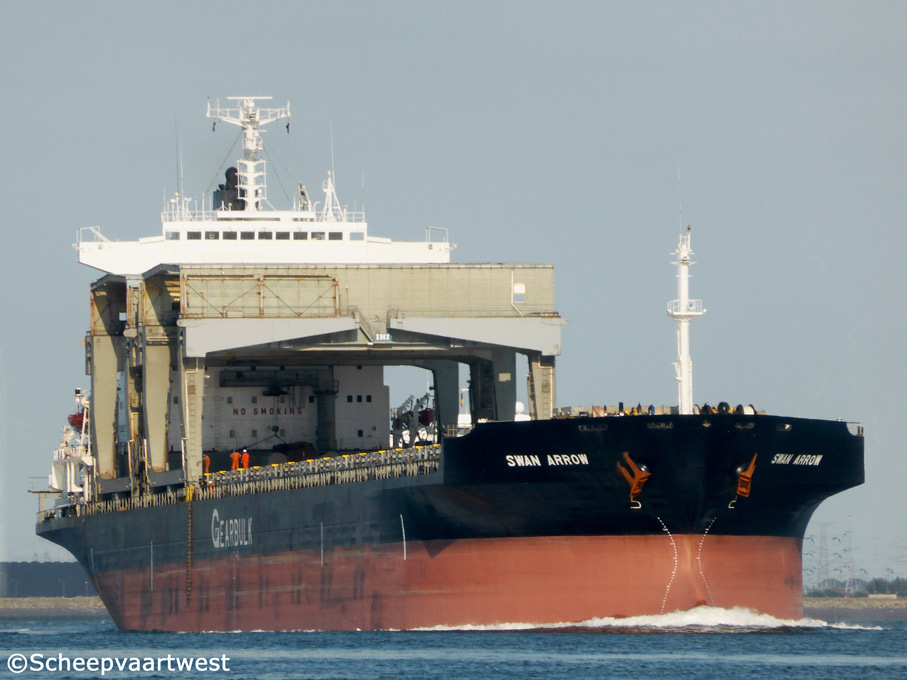

SWAN ARROW |
|
Previous names |
1987 - 02.2003 Westwood Jago 02.2003 - 01.2004 Norsul America |
|
Type |
General cargo ship - Timber carrier Forest product carrier Open-hatch Gantry craned vessel |
|
IMO-number |
8512970 |
|
Call sign |
C6TK9 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
Previous flags |
1987 - 2001 Bahamas 2001 - 2004 Republic of Panama |
|
GT |
28.805 t |
|
DWT |
Summer: 45.295 t |
|
NT |
13.964 t |
|
Number of 20ft containers |
2.025 |
|
Length |
190,90 m overall 190,62 m between perpendiculars |
|
Breadth |
30,59 m extreme |
|
Draught |
11,72 m |
|
Depth |
16,20 m |
|
Speed |
14,6 knots |
|
Built |
1987 |
|
Keel laid |
20.05.1986 |
|
Launch date |
24.04.1987 |
|
Date of completion |
10.07.1987 |
|
Builder |
Ishikawajima-Harima Heavy Ind. |
|
Yard number |
2954 |
|
Hull material |
Steel |
|
Bulkheads |
Transverse: 8 |
|
Main engine |
1x Sulzer-IHI 6RTA62 - 2 stroke 6 cylinder diesel engine 8.076 kW / 11.370 hp |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated SPF 20-10-14 1x Auxiliary boiler, oil/gas fired VWS 1600 ME |
|
Generators |
3x Daihatsu 6DL 20 diesel generatorsets 520 kW each |
|
Emergency generator |
1x Deutz BF6L913C diesel generatorset |
|
Number of holds |
11 Hold 1 - 10 : 13,12 x 25,30 x 15,75 m Hold 11: 6,56 x 13,00 m |
|
Cargo hold capacity |
Bale: 1.801.260 ft³ / 51.006 m³ Grain: 1.801.283 ft³ / 51.007 m³ |
|
Hatchways: |
1x Hatch with dimension 6,56 x 13,00 m |
|
Ballast capacity |
15.152,6 m³ |
|
Ventilation |
45.000 m³/h |
|
Dehumidification |
5.000 m³/h |
|
Cargo gear |
2x Gantry cranes - SWL 40,0 t each |
|
Manager |
Gearbulk Norway AS Bergen |
|
Previous managers |
1987 - 2008 Borgestad Shipmanagement AS 2008 - 2010 Bernhard Schulte Shipmanagement (Cyprus) Ltd. 2010 - 2011 Kristian Gerhard Jebsen Skipsrederi AS |
|
Operator |
Gearbulk |
|
Owner |
Gearbulk Pool |
|
Registered owner |
Gearbulk Shipowning Ltd. |
|
Previous owners |
1987 - 2001 Westwood Lessor Trust 2001 - 2004 Norship Navigation, Inc. 2004 - 2013 Gearbulk Shipowning Ltd. 2013 - 2014 Swan Shipping S.A.R.L. |
|
Scrapped |
03.2016 Alang - India |
|
Latest data adjustment |
09 April 2016 |
