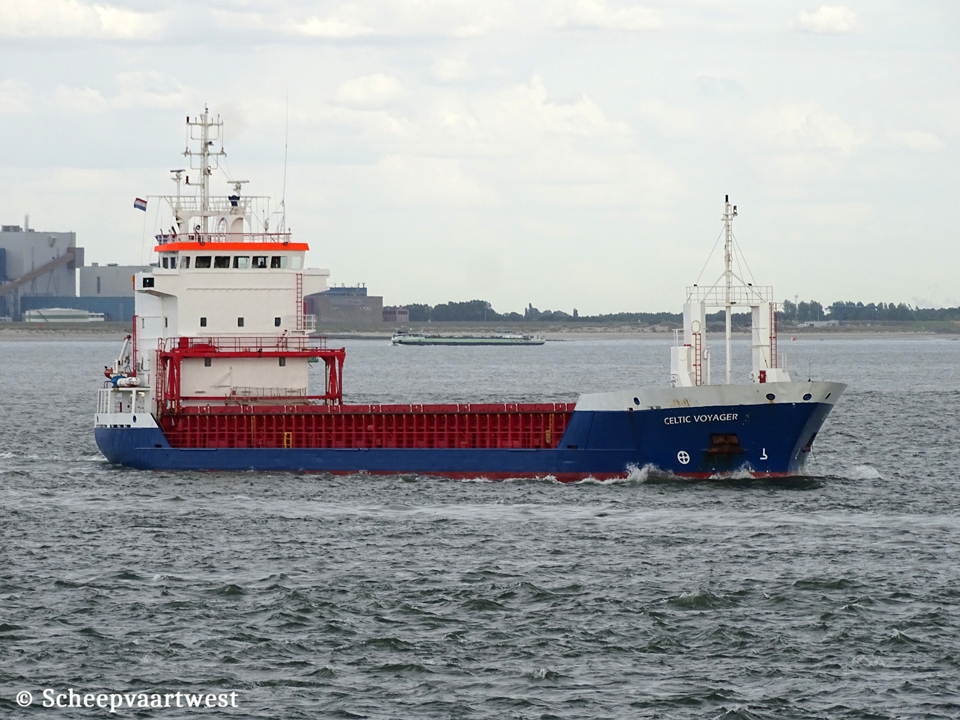

Westerschelde 30 July 2019 |
 |

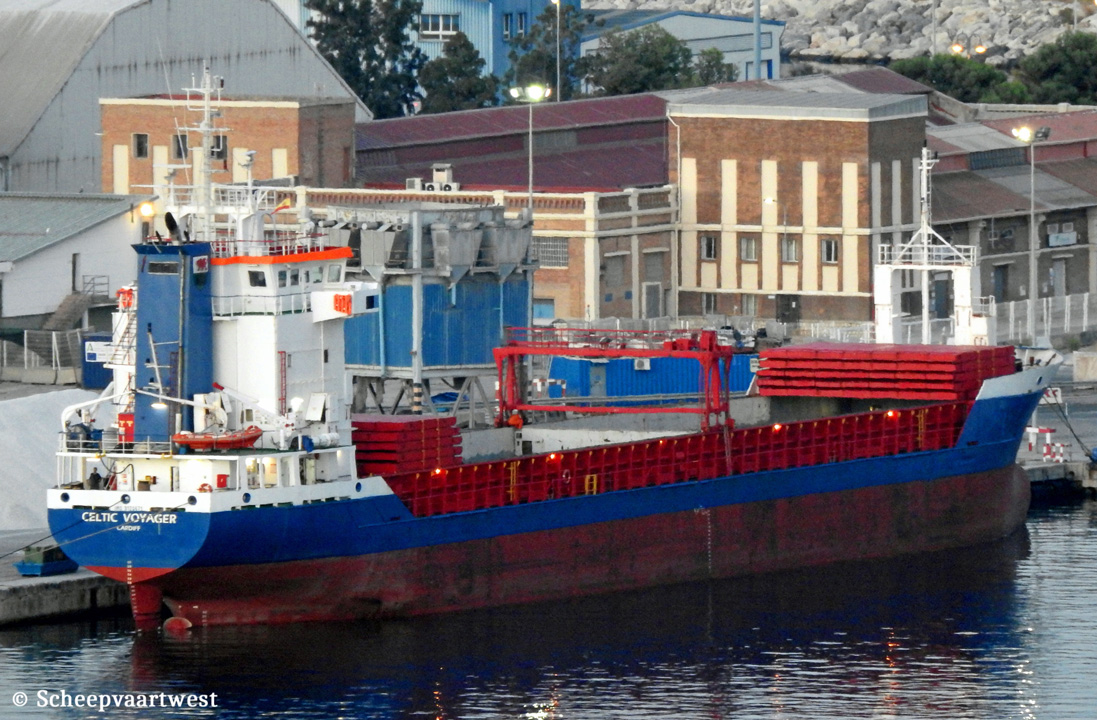

| Malaga, Spain 30/07/19 |
|
Name |
CELTIC VOYAGER |
|
Previous names |
1997 - 03/2007 Alegra 03/2007 - 2018 Cedeira |
|
Type |
General cargo vessel |
|
IMO-number |
9125671 |
|
Call sign |
MDZU7 |
|
Flag |
United Kingdom |
|
Port of registry |
Cardiff |
|
Previous flags |
1997 - 2007 Cyprus, Limassol 2007 - 2018 Spain, Santa Cruz De Tenerife - Call sign: ECMG |
|
GT |
2.805 t |
|
DWT |
4.241 t |
|
DWCC |
Summer: 4.100 t Winter: 4.000 t |
|
NT |
1.568 t |
|
Displacement |
5.518 t |
|
Number of 20ft containers |
In hold: 117 On deck: 96 Total: 213 |
|
Container capacity 14t |
156 |
|
Reefer capacity |
20 |
|
Length |
89,80 m overall 84,99 m between perpendiculars |
|
Breadth |
13,17 m |
|
Draught |
Summer: 5,69 m Winter: 5,57 m In ballast: 3,80 m |
|
Air draft |
22,20 m in ballast |
|
Depth |
7,17 m |
|
Speed |
Service: 11,0 knots Max: 13,0 knots |
|
Built |
1997 |
|
Keel laid |
26/06/1995 |
|
Launch date |
27/03/1996 |
|
Date of completion |
01/06/1997 |
|
Builder casco |
Damen Shipyard Galati Galati Romania Yard number: 901 |
|
Builder completion |
Damen Shipyard Hoogezand Hoogezand The Netherlands |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
5 |
|
Movable bulkheads |
2x Movable, max 3 compartments Positions: 6 plus 2 stowed positions (1 fwd, 1 midship) |
|
Continuous decks |
1 |
|
Main engine |
1x Deutz MWM 6L645 - 4 stroke 6 cylinder combustion engine 2.200 kW / 2.989 hp at 600 rpm Builder: DeutzMotoren, Manheim - Germany |
|
Propellers |
1x Fixed pitch propeller- aft at 183 rpm |
|
Generators |
2x BF6M1015 diesel generatorsets each 293 kW 1x BF4M1013 diesel generatorset 118 kW |
|
Emergency & harbour generator |
1x Valmet diesel generatorset 70 kVA |
|
Compressed air receivers |
2x Starting air compressor |
|
Bow thruster |
1x Fixed pitch propeller 300 kW / 400 bhp |
|
Number of holds |
1x Boxshaped hold - Narrowing fore and aft 62,49 x 11,00 x 8,43 m |
|
Cargo hold capacity |
Grain/Bale: 7.518 m³ / 202.000 ft³ |
|
Hold ventilation |
Electric driven 6 air-changes per hour |
|
Number of hatches |
1 62,70 x 10,10 m |
|
Hatch type |
10x Steel pontoon hatches with 1 gantry crane Roden Staal closed pontoon system |
|
Max permitted loads |
Hatches: 1,6 t/m² Tanktop: 18,0 t/m² |
|
Tank capacities |
Ballast: 1.945 m³ IFO: 235,58 m³ MGO: 37,29 m³ Potable water: 41,44 m³ Lub oil: 9,8 m³ |
|
Other equipment |
3x Separators: 1x IFO, 1x MGO, 1x Luboil 1x Fuel oil trim pump 1x Bilge water separator, acc. to Marpol regulations 2x Bilge/ballast pumps, each 150 m3/hr a 2,80 bar 1x Fire Fighting pum 1x Sewage pump 1x Freshwater pressure set 1x CO2 Fire Fighting system for engine room and cargo hold |
|
Registered owner |
Charles M Willie & Co. (Shipping) Ltd. 6 Ocean Way Cardiff CF24 5HG United Kingdom |
|
Previous names & owners |
1997 - 2000 Alegra - Saraco Sg Co Ltd. 2000 - 2017 Alegra - Alegra Sg Co Ltd. 2007 - 2018 Cedeira - Naviera de Galicia SA (NAVIGASA) |
|
Latest data adjustment |
19 September 2021 |
