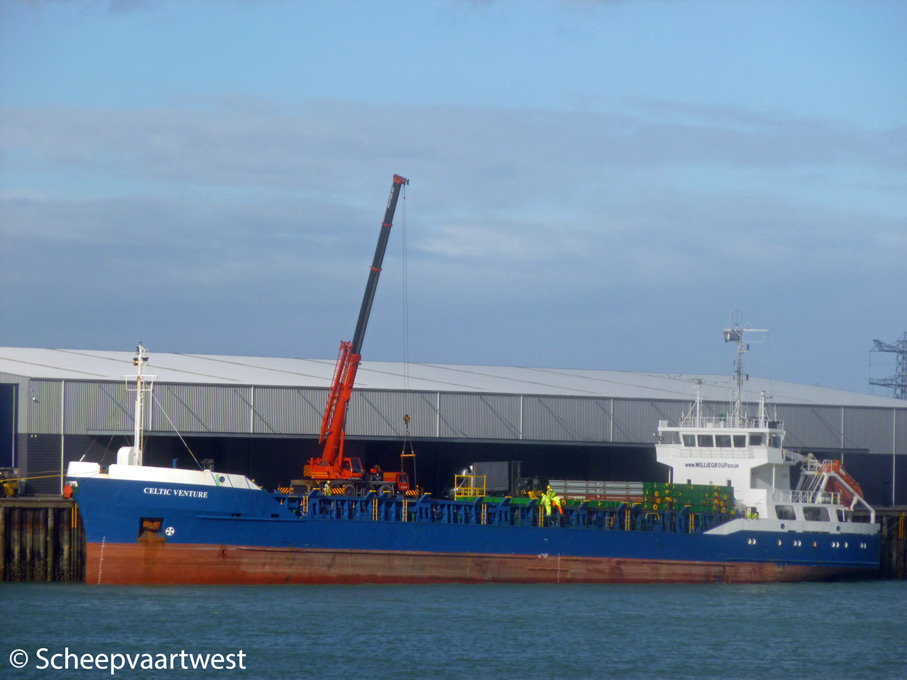

| Vlissingen 23 October 2013 |
 |

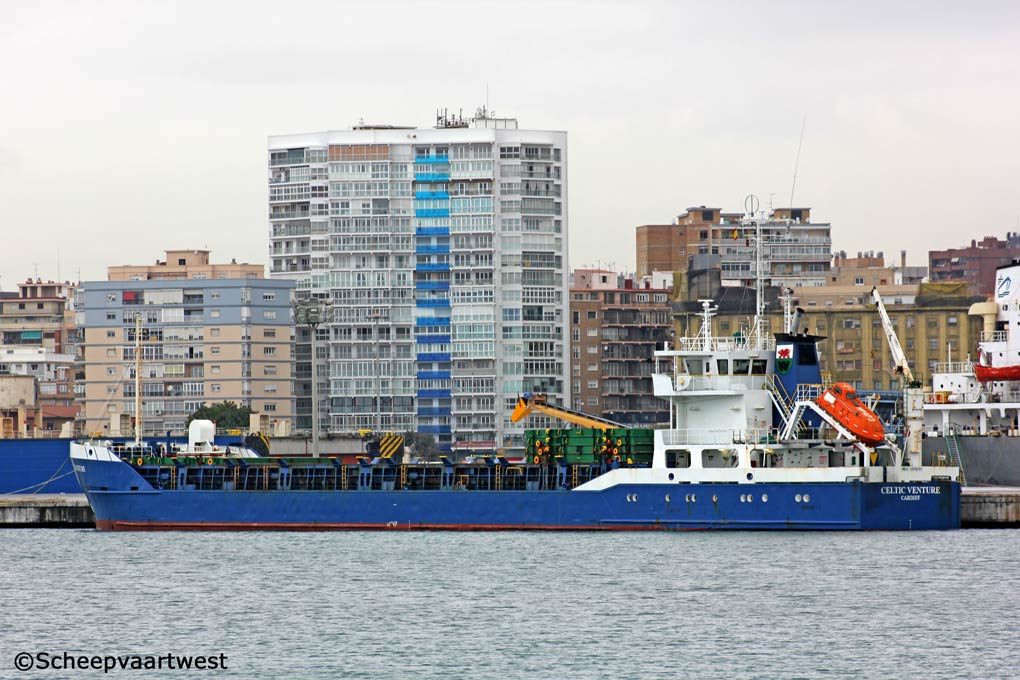

| Malaga, Spain 17/02/14 |
|
Name |
CELTIC VENTURE |
|
Previous names |
1990 - 05.1998 Johanna 1998 - 08.2006 Radesforde |
|
Type |
General cargo ship |
|
IMO-number |
8908480 |
|
Call sign |
MPAP3 |
|
Flag |
United kingdom |
|
Port of registry |
Cardiff |
|
GT |
2.606 t |
|
DWT |
Summer: 3.240 t |
|
SWCC |
Summer: 3.500 t |
|
NT |
1.128 t |
|
Number of 20ft containers |
198 |
|
Container capacity 14t |
153 |
|
Reefer capacity |
10 |
|
Length |
89,99 m overall 86,60 m between perpendiculars |
|
Breadth |
13,04 m |
|
Draft |
Fully laden: summer 5,10 m In ballast: 3,40 m |
|
Air draft |
29,5 m in ballast draft |
|
Depth |
7,45 m |
|
Speed |
11,5 knots |
|
Built |
1990 |
|
Launch date |
12.03.1990 |
|
Date of completion |
19.04.1990 |
|
Builder |
Sietas Schiffswerft |
|
Yard number |
1004 |
|
Hull material |
Steel |
|
Movable bulkhead |
2 |
|
Main engine |
1x DEUTZ Type SBA 9M628 diesel engine - Output 1.520 kW Builder: Deutz MWM Mot. Werke Mannheim AG - Germany |
|
Propellers |
1x Pitch propeller |
|
Bow thruster |
180 kW |
|
Number of holds |
1 Hold 1: 55,36 x 10,40 x 8,00 m |
|
Cargo capacity |
Grain / Bales: 168.500 ft³ |
|
Number of hatches |
1 Hatch 1: 55,85 x 10,40 m |
|
Max. permitted loads |
Tanktop: 13 t/m² Hatchcovers: 1,3 t/m² Coils piece weight: 45 t |
|
Tank capacities |
MGO: 200 t Ballast: 1.700 t Fresh water: 60 t |
|
Ventilation |
25 Air changes |
|
Manager |
Charles M. Willie Shipping |
|
Owner |
Charles M. Willie Shipping |
|
Previous name & owners |
1990 Johanna - Heinz Georg Vöge, Hamburg - Germany (DGJA) 19.05.1998 Radesforde - Meerpahl & Meyer Bereederungs GbR, Hamburg (V2ND) 09.2000 Radesforde - Partenreederei MS Radesforde (Meerpahl & Meyer Bereederungs GbR), Hamburg - Germany 01.08.2006 Celtic Venture - Charles M. Willie Shipping, Cardiff - United kingdom (MPAP3) |
|
Last update |
23 November 2013 |
