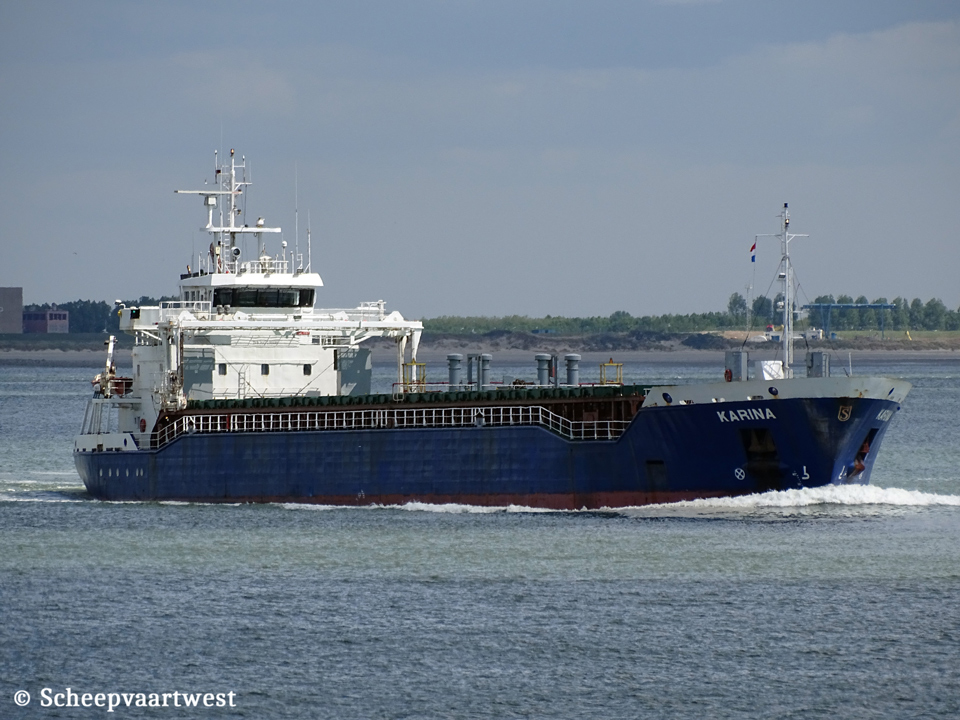

Westerschelde 01 July 2020 |
 |

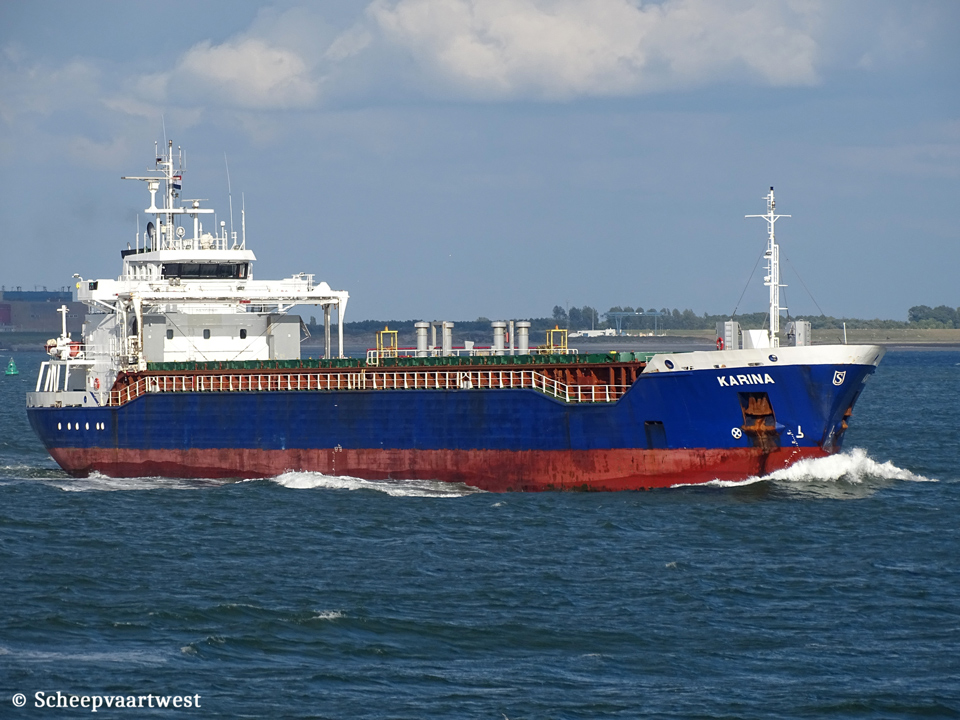

| Westerschelde 12/05/20 |
|
Name |
KARINA |
|
Previous names |
07/2011 - 11/2014 Ocean Sachiel |
|
Type |
General dry cargo ship - Heavycargo - Equipped for carriage of containers |
|
IMO-number |
9519808 |
|
Call sign |
V2HS7 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
Previous flags |
07/2012 Liberia, Monrovia 09/2012 Belize, Belize City - Call sign: V3RR2 11/2013 Russian Federation - Call sign: UBJK8 11/2014 Germany |
|
GT |
4.106 t |
|
DWT |
Summer: 5.443 t |
|
NT |
1.851 t |
|
Number of 20ft containers |
279 |
|
Length |
106,86 m overall 100,62 m between perpendiculars |
|
Breadth |
15,20 m |
|
Draught |
Summer: 5,25 m |
|
Freeboard |
2.609 mm |
|
Depth |
7,70 m |
|
Speed |
12,2 knots |
|
Built |
2012 |
|
Builder casco |
Timblo Drydocks Private Limited Goa India Yard number: Y-130 |
|
Builder completion |
Bodewes Shipyard Hoogezand The Netherlands Yard number: 130 |
|
Hull material |
Steel |
|
Bulkheads |
1 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 1.980 kW / 2.690 hp at 750 rpm Build: 26/01/2011 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 221 rpm |
|
Shaft generator |
1x 384 kW |
|
Generators |
1x Diesel generatorset 175 kVA - 140 kW - 204 hp |
|
Emergency generator |
1x Diesel generatorset 175 kVA - 140 kW - 204 hp |
|
Bow thruster |
1x 300 kW |
|
Number of holds |
2 Hold 1: 37,50 x 12,65 x 8,99 m Hold 2: 37,50 x 12,65 x 8,99 m |
|
Total capacity of holds |
8.364,7 m³ / 295.273 ft³ |
|
Number of hatches |
2 Hatch 1: 37,50 x 12,65 m Hatch 2: 37,50 x 12,65 m |
|
Tank capacities |
Fuel: 308,5 m³ |
|
Crew |
8 |
|
Commerical manager |
HS Bereederungs GmHh & Co., KG Thyssenstrasse 16 49733 Haren (Ems) Germany |
|
ISM manager |
Abrams Schiffahrtskontor GmbH & Co. KG Industriestrasse 16 26789 Leer, Germany Germany |
|
Registered owner |
HS Schiffahrts GmbH & Co. KG MS ''KARINA'' Care of HS Bereederungs GmbH & Co KG Thyssenstrasse 16 49733 Haren (Ems) Germany |
|
|
04/2022 Kessu Antigua & Barbuda, St. John’s - Call sign: V2HS7 Reg. Owner: HS Kessu OU manager: Hans Shipping, Tallinn - Estonia |
|
Latest data adjustment |
04 June 2022 |
