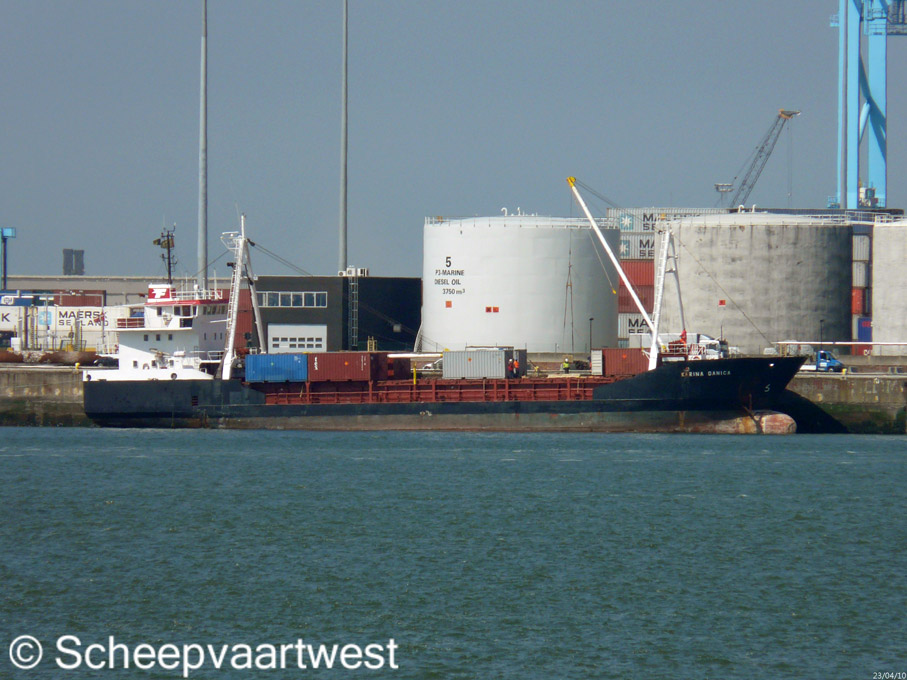

Karina Danica - IMO 8903014

Name

KARINA DANICA

Type

General cargo ship

Closed shelter Decker
Flushed tweendeck (steel) portable in 2 positions
Steel-floored tank top
Cargo batten fitted

IMO-number

8903014

Call sign

OVOB2

Flag

Denmark

Port of registry

Sakskøbing

GT

1.352 t

DWT

Summer: 2.130 t

NT

783 t

Number of 20ft containers

68

Length

69,35 m overall

63,00 m between perpendiculars

Breadth

11,60 m moulded

Draught

4,98 m fully Loaded summer

Air draft

23,77 m

Freeboard

1.046 mm

Depth

6,00 m to main deck

3,60 m to tween deck

Speed

11,5 knots

Built

1991

Date of completion

21.09.1991

Builder

Sakskobing Maskinfabrik & Skibsvaerft
Sakskobing
Denmark

Yard number

41

Hull material

Steel

Hull type

Single hull

Watertight compartments

4

Continuous decks

2
Machinery aft

Main engine

1x Callesen type 427 HTK-G - 4 stroke 8 cylinder 270 x 400 mm diesel engine - 749 kW / 1.018 hp at 500 rpm

Built: 1991

Builder: Aabenraa Motorfabrik, Aabenraa - Denmark

Electrical propulsion gen.

1x 57 kW

Propelling system

1x Screw propeller controllable pitch at 254 rpm

Electrical installation

Power voltage: 380 V

Lighting voltage: 220 V

Frequency: 50 Hz

Shaft alternator

1x 57 kVA

Diesel generators

2x Mann diesel generatorsets each 89 kVA - 71 kW

Harbour engine

1x Mann diesel generatorset 53 kVA

Number of holds

1

Total capacity of holds

Grain: 2.689 m² / 94.175 ft³

Bales: 2.554 m³/ 90.211 ft³

Cargo hatchways

1

Dimension: 37,20 x 9,00 m

Max. load: 1,38 t/m²

Deck strength

Tank top: Steel 8,00 t/m²
Tween deck: Steel 2,80 t/m²
Main deck: MacGregor steel 1,38 t/m²

Tank capacities

Fuel oil: 198,50 t / 235 m³
Fresh water: 35,80 t
Ballast water: 576,7 t

Winches/ derricks

Derricks work topping / swinging
2x derricks each one up-to 8,0 t

Cargo ventilation

35 Air changes per hour basis empty holds

Crew

7

Manager

H. Folmer & Co.
København
Denmark

Owner

Danica XIII
København
Denmark
