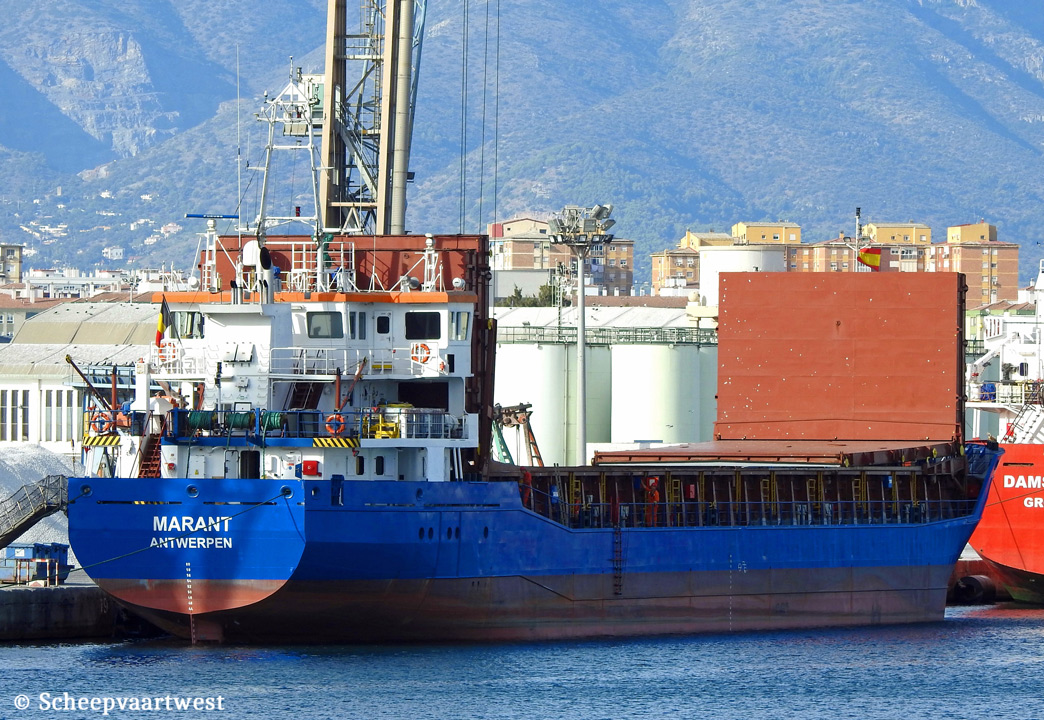

Malaga, Spain 26 September 2021 |
|
Name |
MARANT |
|
Previous names |
2006 - 2020 Linnau |
|
Type |
Multi-purpose dry cargo ship Single deck - Single hold - Steel floored box shaped |
|
IMO-number |
9280689 |
|
Call sign |
ONKX |
|
Flag |
Belgium |
|
Port of registry |
Antwerpen |
|
Previous flags |
2006 - 2020 Antigua & Barbuda, St. John’s - Call sign: V2BO5 |
|
GT |
2.452 t |
|
DWT |
Summer: 3.699 t incl bulkheads |
|
DWCC |
Summer: 3.650 t Winter: 3.550 t |
|
NT |
1.369 t |
|
Displacement |
Summer: 5.022 t |
|
Lightship |
1.221,35 t |
|
Number of 20ft containers |
176 |
|
Length |
87,98 m overall 81,00 m between perpendiculars |
|
Breadth |
12,80 m moulded 13,00 m extreme |
|
Draught |
Summer: 5,59 m Winter: 5,48 m |
|
Keel to mast end |
24,23 m |
|
Air draft |
19,60 in ballast |
|
Freeboard |
Summer: 1.520 mm |
|
Depth |
7,10 m moulded |
|
Speed |
Max: 12,3 knots Service: 10,0 knots |
|
Built |
2006 |
|
Keel laid |
25/06/1998 |
|
Launch date |
01/03/2006 |
|
Date of completion |
24/07/2006 |
|
Builder |
Slovenske Lodenice Komarno A.S. Komarno Slovakia |
|
Yard number |
2961 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x Movable bulkheads, various positions |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M20 - 4 stroke 8 cylinder 200 x 300 mm combustion engine 1.520 kW / 2.067 hp at 1.000 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired |
|
Generators |
3x Sisu diesel 620 DSRG main diesel generatorsets each 130 kW |
|
Emergency generator |
1x Sisu diesel 320 DSG diesel generatorset 49 kW |
|
Bow thruster |
1x / Jastram BU40F - 185 kW |
|
Number of holds |
1x Box 55,75 x 10,20 x 8,15 m |
|
Cargo hold capacity |
Bale & Grain: 4.614 m³ / 163.00 ft³ |
|
Hold ventilation |
6x Air changes / hour |
|
Number of hatches |
1 55,75 x 10,20 m |
|
Hatch type |
Kvaerner multi-fold crocodile |
|
Max permitted leads |
Tanktop: 16,0 t/m² Hatch cover: 1,6 t/m² |
|
Tank capacities |
Ballast: 1.645,8 m³ Gas oil: 171,7 m³ Fresh water: 48,15 t |
|
Anchor equipment |
Length: 440,00 m Diameter: 32 mm |
|
Commercial manager |
Boeckmans Belgie NV van Meterenkaai 1 2000 Antwerpen Belgium |
|
ISM manager |
Boeckmans Ship Management BVBA van Meterenkaai 1 2000 Antwerpen Belgium |
|
Previous managers |
2006 - 2015 Schifffahrtskontor Erwin Strahlmann e.K. |
|
Registered owner |
Rederij AD & C NV Care of Boeckmans Belgie NV van Meterenkaai 1 2000 Antwerpen Belgium |
|
Previous owners |
2006 - 2009 Schifffahrtskontor Erwin Strahlmann e.K. 2009 - 2012 Partenreederei MS "LINNAU" Erwin Strahlmann |
|
Latest data adjustment |
11 October 2021 |
