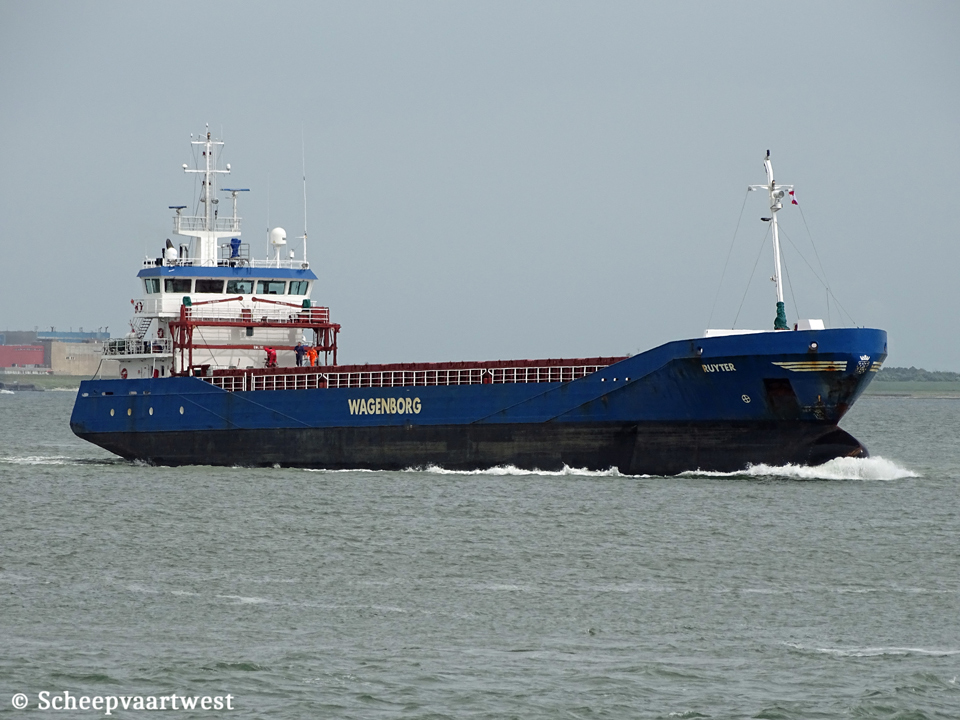

Ruyter IMO 9374674 01

Westerschelde 03 June 2019

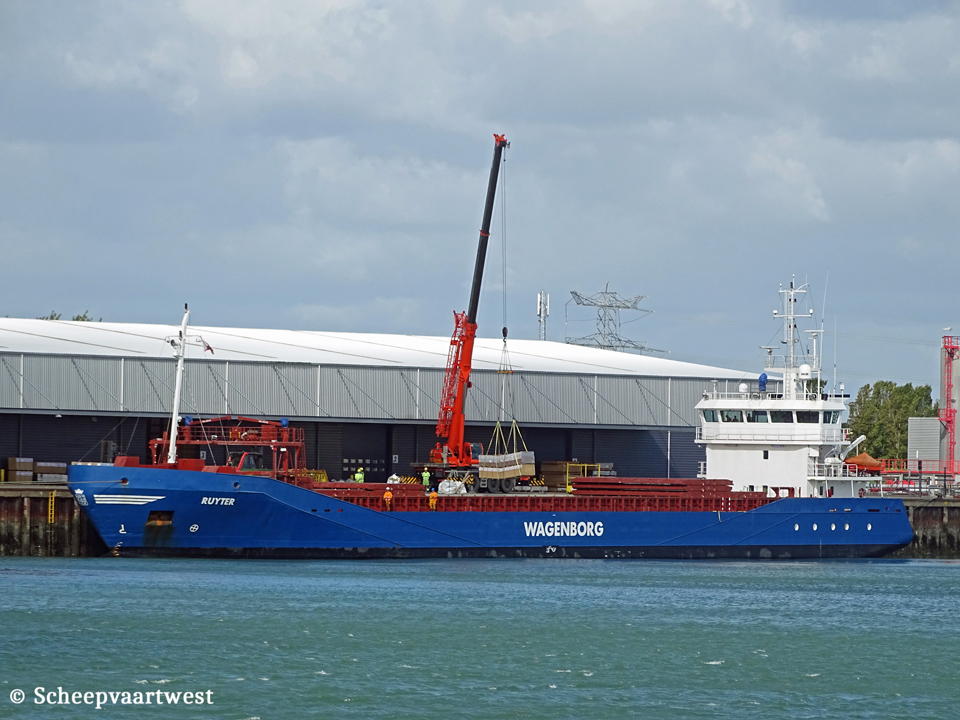

Ruyter IMO 9374674 02
Vlissingen 13/09/17


Name

RUYTER

Previous names

2006 - 10/2008 Storm

10/2008 - 10/2015 Frank W.

10/2015 - 08/2017 Frank W

Type

General cargo ship - Heavycargo - Strengthen bottom - Equipped for carriage of containers

IMO-number

9374674

Call sign

PDFO

Flag

The Netherlands

Port of registry

Delfzijl

Previous flags

09/2006 - 10/2008 The Netherlands, Harlingen - Call sign: PHGN

10/2008 - 10/2015 Antigua & Barbuda, St. John's - call sign: V2DX8

10/2015 - 08/2017 Germany, Hamburg - Call sign: DFWK2

GT

2.528 t

DWT

Summer: 3.568 t

DWCC

Summer: 3.35

NT

1.053 t

Number of 20ft containers

157

Length

89,99 m overall

84,95 m between perpendiculars

Breadth

12,50 m

Draught

5,26 m

Air draft

22,75 m in ballast

Freeboard

2.530 mm

Depth

8,00 m moulded

Speed

13,0 knots

Service: 10,5 knots

Built

2006

Keel laid

2005

Launch date

30/06/2006

Date of completion

27/09/2006

Builder

Peters Scheepswerf B.V.

Kampen

The Netherlands

Yard number

1011

Hull material

Steel

Watertight compartments

5

Movable bulkheads

2

Continuous decks

1

Main engine

1x Wärtsilä 9L20 - 4 stroke single acting 9 cylinder 200 x 280 mm combustion engine 1.800 kW / 2.446 hp at 1.000 rpm

Start type: Compressed air

Built: 02/2006

Builder: Wärtsilä Diesel Oy, Vaasa/Vasa - Finland

Gearbox

1x Scana Volda CG-680K - reduction 5.24:1

Propellers

1x Screw propeller controllable pitch - aft at 191 rpm

Diameter: 2.700 mm - 4 blades

Shaft generator

1x Stamford HCM534C generator 313 kVA - 250 kW

Generators

1x Sisu Diesel 645-DSBIG - 6 cylinder 111 x 145 mm diesel engine 180 kW connected with Stamford HCM434C generator 210 kVA at 1.500 rpm

Built: 2007

Emergency generator

1x Sisu Diesel 420-DSRG - 4 cylinder 108 x 120 mm diesel engine 70 kW connected with Stamford UCM274C generators 77 kVA at 1.500 rpm

Bow thruster

1x Veth tunnel thruster, type VT-200 with Leroy Somer E-motor - 250 kW at 1.500 rpm

Number of holds

1

60,00 x 10,30 x 8,15 m

Hold capacity

Grain/bale: 174.063 ft³ / 4.927 m³

Hold ventilation

6x Air changes per hour basis empty hold

Number of hatches

1

60,00 x 10,30 m

Hatch type

Pontoon

Tank capacities

Marine gas oil: 250 m³

Water ballast: 1.466 m³

Fresh water: 25 m³

Anchor equipment

2x Anchors 1.305 kg each

Length: 440 m

Lifting equipment

1x Gantry crane

1x Store crane

Manager

Wagenborg Shipping B.V.

Marktstraat 10

9934 CK Delfzijl

The Netherlands

Previous managers

09/2006 -10/2008 Kustvaart Harlingen B.V., Harlingen - The Netherlands

Owner

Ruyter B.V., Delfzijl - The Netherlands

Care of Wagenborg Shipping BV

Marktstraat 10

9934 CK Delfzijl

The Netherlands

Previous names & owners

09/2006 -10/2008 Storm - Kustvaart Harlingen B.V., Harlingen - The Netherlands

10/2008 - 10/2015 Frank W. - Frank W GmbH. Co. K.G., Hamburg - Germany

10/2015 - 08/2017 Frank W - Frank W GmbH. Co. K.G., Hamburg - Germany

Latest data adjustment

22 October 2021
