Antwerpen 16 February 2018 |
|
Name |

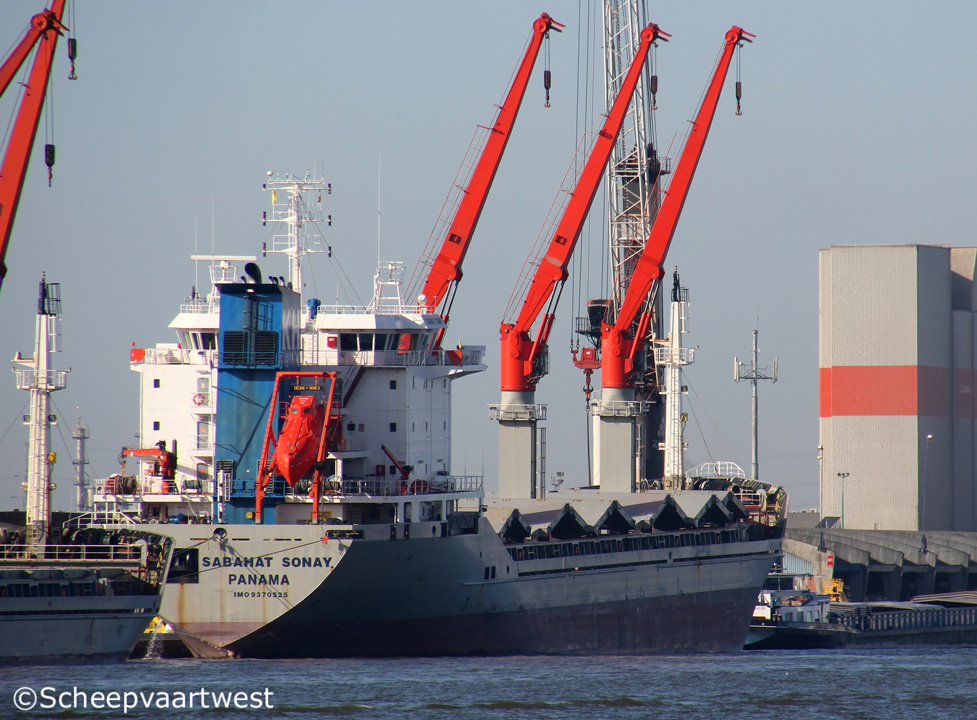

SABAHAT SONAY |
|
Type |
General cargo ship - Equipped for carriage of containers |
|
IMO-number |
9370525 |
|
Call sign |
3FQX4 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
Previous flags |
2009 - 2015 Turkey - Call sign: TCSL |
|
GT |
9.490 t |
|
DWT |
14.888,83 t |
|
NT |
4.603 t |
|
Displacement |
19.676,93 t |
|
Length |
143,41 m overall 134,00 m between perpendiculars |
|
Breadth |
21,70 m |
|
Draught |
9,02 m |
|
Freeboard |
2.120 mm |
|
Depth |
11,10 m |
|
Speed |
14,0 knots |
|
Built |
2007 |
|
Keel laid |
26/12/2004 |
|
Date of completion |
12/01/2007 |
|
Builder |
Celik Tekne San ve Tic. AS |
|
Yard number |
NB066 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x MAN B&W 6S35MC Mk-7 - 2 stroke 6 cylinder 350 x 1.400 mm diesel engine 4.440 kW / 5.978 hp at 173 rpm Built: 09/02/2006 Builder: MAN B & W Diesel A/S - Japan |
|
Propellers |
1x Screw propeller controllable pitch- aft at 173 rpm |
|
Boilers |
1x CHR Aalborg 85,40 m² - 10,0 bar |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Shaft generator |
1x Lerroy Sommer 750 kVA - 600 kW - 50Hz at 1.500 rpm |
|
Generators |
3x MAN Lindenberg main diesel generatorsets each 400 kVA - 320 kW - 469 hp at 1.500 rpm - 400 Volt 50 Hz |
|
Emergency generator |
1x MAN Lindenberg diesel generatorset 125 kVA - 100 kW - 150 hp at 1.500 rpm 400 Volt 50 Hz |
|
Bow thruster |
1x Schottel STT 330 T-LK - 450 kW |
|
Number of holds |
4x Double skin & “Box shape” type Hold 1: Box Shape 12,60 x12,06 m – 1.655,62 m³ – Inner Bottom with max. Area of 40 m² Hold 2: Box Shape 25,60 x 17,20 m – 5.310,78 m³ - Inner Bottom with max. Area of 225 m² Hold 3: Box Shape 25,60 x17,20 m – 5.352,36 m³ - Inner Bottom with max. Area of 225 m² Hold 4: Box Shape 19,20 x 17,20 m – 4.060,20m³ - Inner Bottom with max. Area of 225 m² |
|
Total capacity of holds |
16.910 m³ including hatch coamings |
|
Hatch covers type |
Hydraulic operated, Folding type |
|
Hatch cover strength |
1,75 t/m² |
|
Tank capacities |
Fuel oil: 728 m³ Diesel oil: 268 m³ Fresh water: 143 m³ Ballast: 5.386 m³ |
|
Cargo gear |
3x NMF PKL 330 piston type cranes - SWL 30,0 t each Outreach: 22,00 m |
|
Manager |
AY Denizcilik A.S. |
|
Operator |
Sonay Shipping |
|
Owner |
Dolunay Shipping A.S. |
|
Latest data adjustment |
29 March 2018 |
