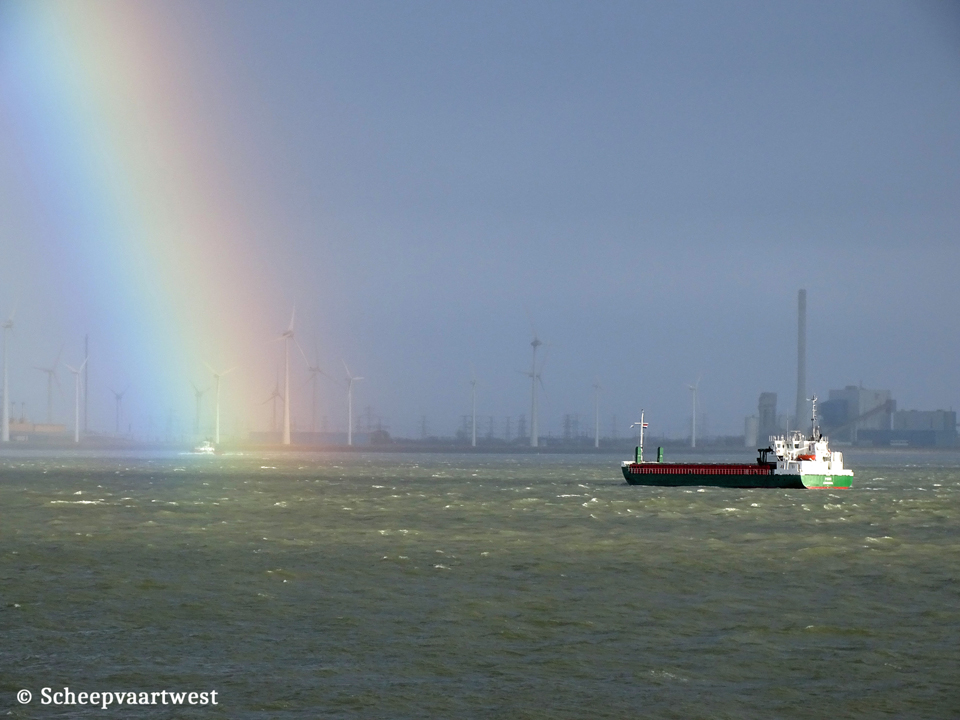

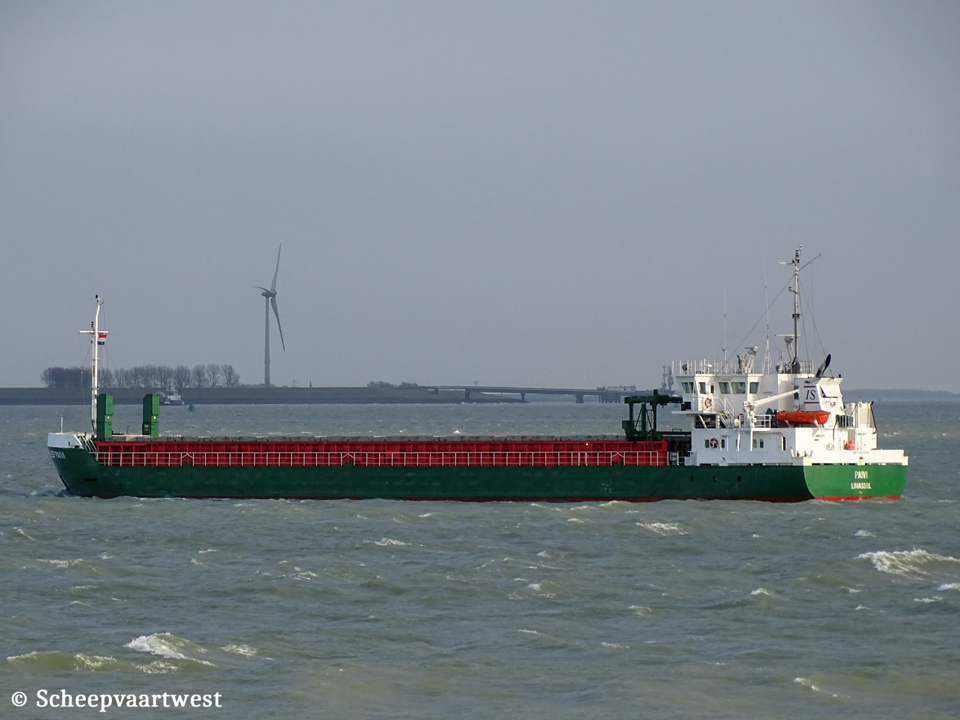

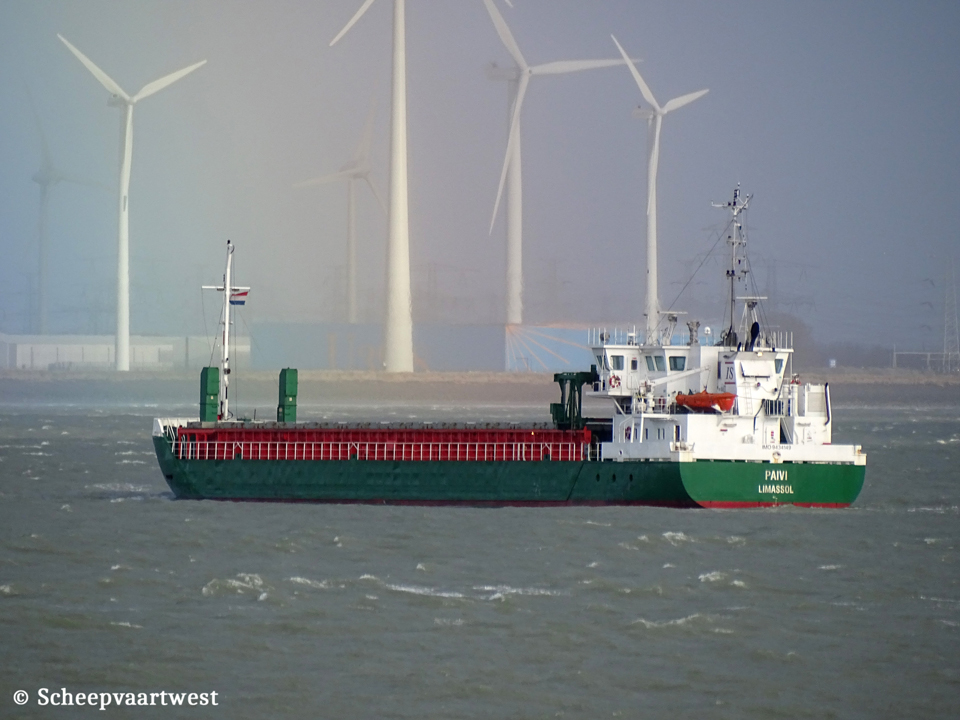

Westerschelde 17 February 2020 |
 |
 |
|
| Westerschelde 17/02/20 | Westerschelde 17/02/20 |
|
Name |
PAIVI |
|
Type |
Multi Purpose cargo vessel, strengthened for heavy cargo - Box Singledecker |
|
IMO-number |
9434149 |
|
Call sign |
5BGW2 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
2.474 t |
|
DWT |
Summer: 3.450 t |
|
DWCC |
3.250 t |
|
NT |
1.412 t |
|
Number of 20ft containers |
34, only on deck |
|
Length |
82,50 m overall 79,54 m between perpendiculars |
|
Breadth |
12,50 m |
|
Draught |
Summer: 5,30 m |
|
Air draft |
19,00 m at 5,30 m draft |
|
Depth |
8,00 m moulded |
|
Speed |
11,5 knots |
|
Built |
2008 |
|
Date of completion |
29/05/2008 |
|
Builder casco |
Stocznia Marine Project Sp.zo.o. shipyard Gdansk Poland |
|
Builder completion |
Bodewes Scheepsweven BV Hoogezand The Netherlands Yard number: 700 |
|
Hull material |
Steel |
|
Bulkheads |
1x Can be used as tweendeck |
|
Main engine |
1x MaK 6M25 - 4 stroke 6 cylinder 255 x 400 mm combustion engine 1.850 kW / 2.514 hp at 750 rpm Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x CHO - 7,;00 bar |
|
Generators |
1x Main diesel generatorset 203 kVA - 162 kW - 220 hp |
|
Emergency generator |
1x Diesel generatorset 203 kVA - 162 kW - 220 hp |
|
Bow thruster |
1x 220 kW / 299 hp |
|
Number of holds |
1 56,55 x 10,30 x 8,98 m last 7,00 m in front narrowing to 6,00 m |
|
Cargo hold capacity |
5.105 m³ / 180.105 ft³ |
|
Timber capacity |
4.100 m³ |
|
Number of hatches |
1 55,00 x 10,30 m |
|
Max permitted loads |
Tanktop: 13,0 t/m² Hatch covers: 2,3 t/m² |
|
Tank capacities |
Fuel: 170,73 m³ |
|
Crew size |
10 |
|
ISM & commercial manager |
Interscan Schiffahrtsges mbH Raboisen 32 20095 Hamburg Germany |
|
Registered owner |
Paivi Interscan Shipmanagement Care of Interscan Schiffahrtsgesellschaft mbH Raboisen 32 20095 Hamburg Germany |
|
Latest data adjustment |
27 November 2021 |
