| Antwerpen 31 Augustus 2011 |
|
Name |

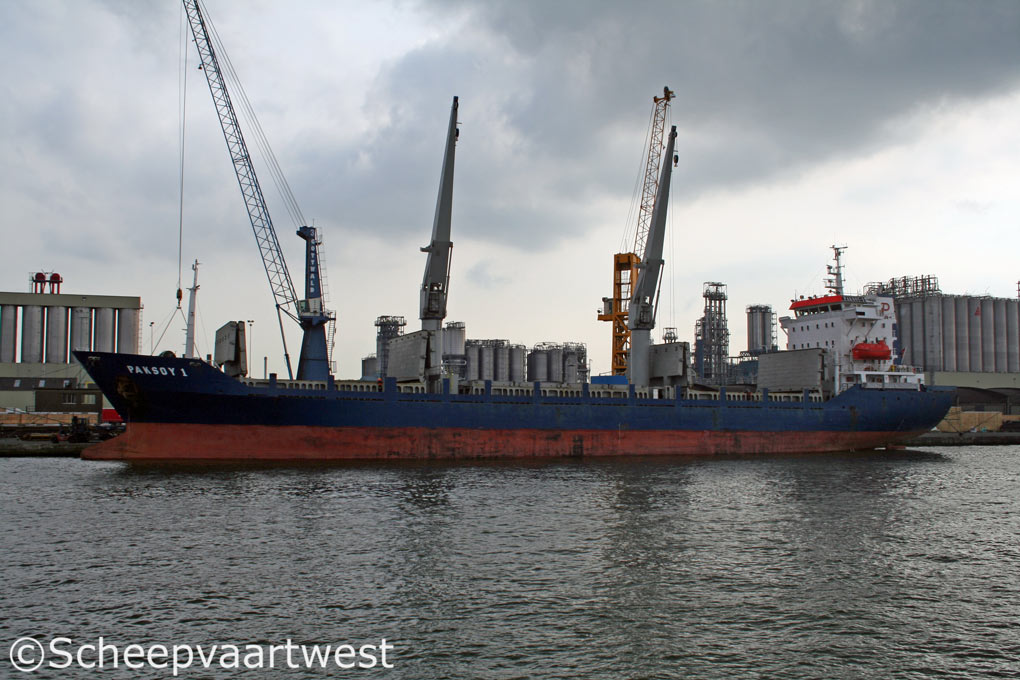

PAKSOY 1 |
|
Type |
Single decker - Ocean going - General cargo / Container |
|
IMO-number |
9081992 |
|
Call sign |
TCPL |
|
Flag |
Turkey |
|
Port of registry |
Istanbul |
|
GT |
5.798 t |
|
DWT |
8.928 |
|
NT |
3.504 t |
|
Number of 20ft containers |
393 |
|
Length |
114,65 m overall 103,60 m between perpendiculars |
|
Breadth |
17,60 m |
|
Draught |
7,91 m |
|
Freeboard |
2.359 mm |
|
Depth |
10,25 m |
|
Speed |
12,5 knots |
|
Built |
1997 |
|
Date of completion |
01.02.1997 |
|
Builder |
Gisan Gemi |
|
Hull material |
Steel |
|
Watertight compartments |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä Vasa 8 R 32E - 4 stroke 8 cylinder 320 x 350 mm diesel engine - 2.990 kW / 4.456 hp at 750 rpm Built: 1995 Builder: Wärtsilä, Vasa - Finland |
|
Electrical propulsion gen. |
1x 224 kW |
|
Propelling system |
1x Screw propeller controllable pitch at 148 rpm - 4 Blades |
|
Boilers |
1x CHM Clayton 11,00 m² - 9,0 bar |
|
Electrical installation |
Power voltage: 380 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Generators |
2x Main diesel generatorsets each 365 kVA Sanfirden Holland (Scania & Stamford Alternators) |
|
Emergency generator |
1x Diesel generatorset 65 kVA Sanfirden Holland ( Valmet & Stamford Alternators) |
|
Harbour generator |
1x Volvo Penta diesel generatorset 160 kVA |
|
Cargo capacity |
Grain / Bale: 437.000 / 392.000 ft³ |
|
Number of holds |
3 Hold 1: 23,25 x 16,00 m (Fore side 5,40 m) Hold 2: 26,25 x 16,00 m Hold 3: 22,25 x 16,00 m (Aft side 12,90 m) |
|
Total capacity of holds |
12.431 m³ |
|
Cargo hatchways |
3 Dimension: 2x Hatches: 18,90 x 13,00 m 1x Hatch: 21,00 x 13,00 m |
|
Type of hatch covers |
Hydraulic folding type / Double sided |
|
Cargo gear |
2x Mac Gregor / Haglunds Type 3022-4 - SWL 25,0 t each |
|
Fuel capacity |
449 m³ |
|
Manager |
Kadioglu Denizcilik Sanayi Ve Ticaret A.S. |
|
Owner |
Kadioglu Denizcilik Sanayi Ve Ticaret A.S. |
