| Westerschelde 19 May 2016 |
 |
 |
||
| Westerschelde 14/04/17 | Westerschelde 13/09/19 | ||
|
Name |

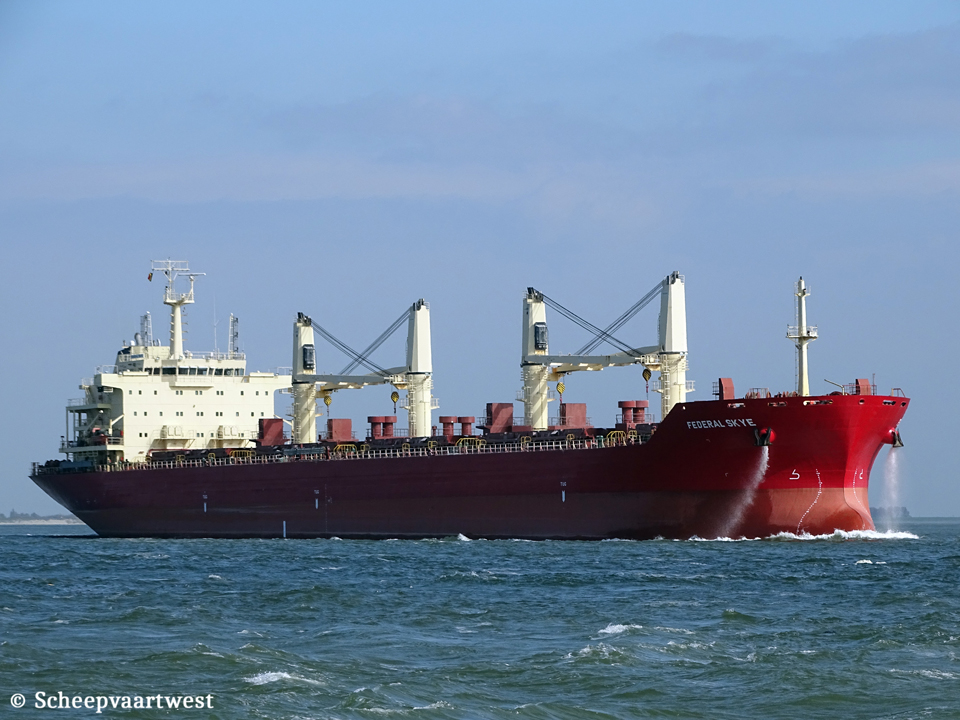

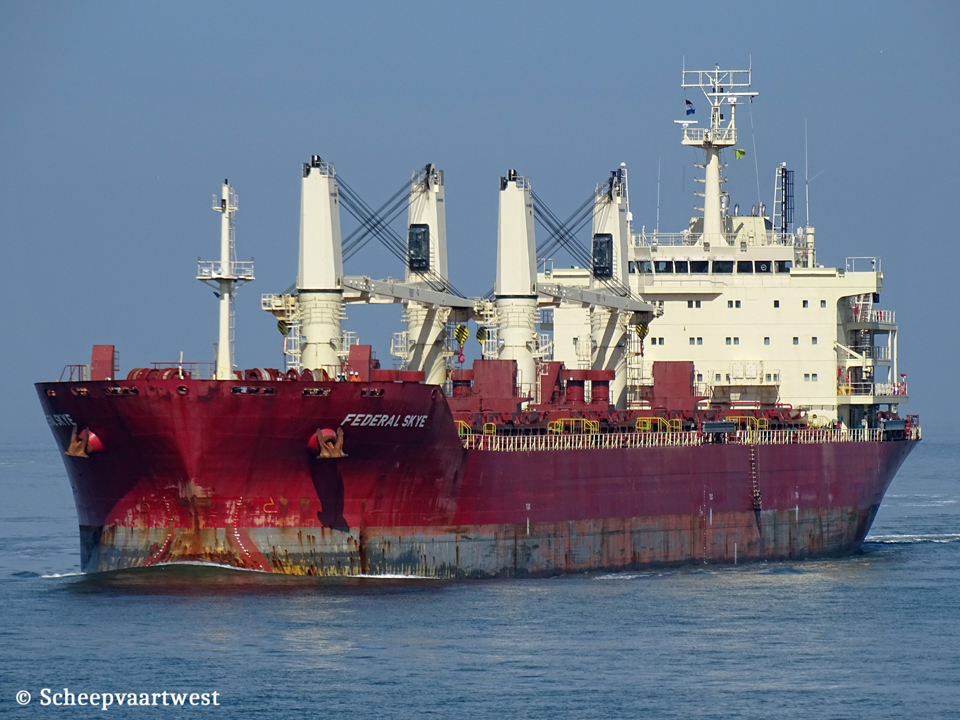

FEDERAL SKYE |
|
Type |
Bulk carrier - Handysize |
|
IMO-number |
9606833 |
|
Call sign |
V7WS9 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GRT |
24.240 t |
|
DWT |
Summer: 37.140 t Winter: 36.055 t |
|
NRT |
12.202 t Panama: 20.144 t Suez: 22.208 t |
|
Length |
189,99 m overall 183,00 m between perpendiculars |
|
Breadth |
28,31 m |
|
Draught |
Summer: 10,52 m Winter: 10,30 m |
|
Depth |
15,20 m |
|
Speed |
14,5 knots |
|
Built |
2012 |
|
Keel laid |
24/12/2010 |
|
Launch date |
14/11/2011 |
|
Delivery date |
23/04/2012 |
|
Builder |
Zhejiang Ouhua Shipbuilding Co., Ltd. China |
|
Yard number |
628 |
|
Hull material |
Steel - Part higher tensile steel |
|
Hull type |
Single hull |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6RTA48T - 2 stroke 6 cylinder 480 x 2.000 mm combustion engine 7.000 kW / 9.517 hp |
|
Propellers |
1x Fixed pitch propeller |
|
Number of holds |
5 Hold 1: 25,60 x 9,10 - 20,20 m Hold 2: 28,80 x 20,20 m Hold 3: 26,40 x 20,20 m Hold 4: 28,80 x 20,20 m Hold 5: 28,80 x 20,20 - 7,20 m |
|
Cargo hold capacity |
Grain / Bulk Hold 1: 7.605 m³ / 7.400 m³ Hold 2: 10.757 m³ / 10.551 m³ Hold 3: 9.884 m³ / 9.683 m³ Hold 4: 10.757 m³ / 10.551 m³ Hold 5: 9/901 m³ / 9.746 m³ Total: 48.904 m³ / 47.931 m³ |
|
Hold ventilation |
Mechanical ventilation |
|
Number of hatches |
Hatch 1: 16,00 x 15,00 m Hatch 2: 22,40 x 18,00 m Hatch 3: 19,20 x 18,00 m Hatch 4: 22,40 x 18,00 m Hatch 5: 22,40 x 18,00 m |
|
Hatch type |
Folding hydraulic |
|
Max permitted loads |
Tanktop: Hold 1: 25,0 t/m² Hold 2: 20,0 t/m² hold 3: 25,0 t/m² Hold 4: 20,0 t/m² Hold 5: 25,0 t/m² |
|
Tank capacities |
IFO: 1.261 m³ MGO: 400 m³ |
|
Cargo gear |
4x Electro hydraulic deck cranes - SWL 30,0 t each |
|
Crew size |
22 |
|
Commerical manager |
Fednav Ltd. Bureau 3500, 1000, rue de la Gauchetiere O Montreal QC H3B 4W5 Canada |
|
ISM Manager |
Anglo-Eastern Ship Management Ltd. 17th Floor, Kingston International Centre, 19, Wang Chiu Road, Kowloon Bay, Kowloon Hong Kong China |
|
Registered owner |
Federal Cornwallis Ltd. Care of Fednav Ltd. Bureau 3500, 1000, rue de la Gauchetiere O Montreal QC H3B 4W5 Canada |
|
Latest data adjustment |
27 July 2023 |
