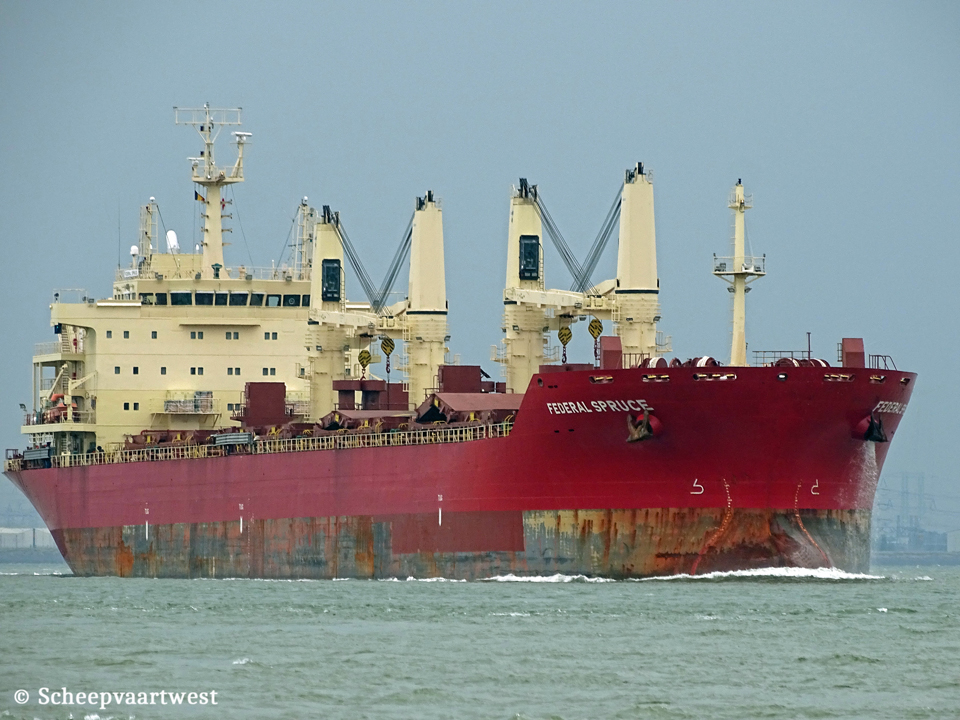

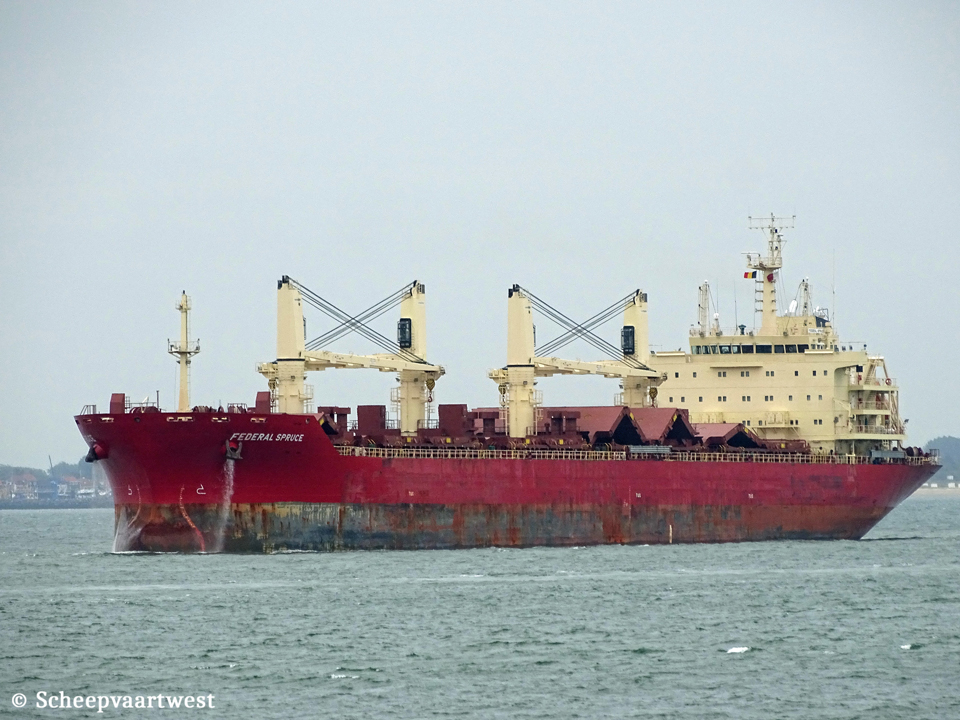

Federal Spruce IMO 9610468 01
Westerschelde 10 August 2017


Name

FEDERAL SPRUCE

Type

Bulk carrier- Handysize

IMO-number

9610468

Call sign

V7WT3

Flag

Marshall islands

Port of registry

Majuro

GT

24.240 t

DWT

Summer: 37.168 t

Winter: 36.055 t

NT

12.211 t

Suez: 22.208 t

Panama: 20.144 t

Length

189,90 m overall

183,00 m between perpendiculars

Breadth

28,35 m extreme

Draught

Summer: 10,50 m

Depth

15,20 m moulded

Speed

Max: 14,5 knots

Build

2012

Keel laid

24/12/2010

Date of completion

27/09/2012

Builder

Zhejiang Ouhua Shipbuilding Co. Ltd.

Zhoushan

China

Yard number

633

Hull material

Steel - Part higher tensile steel

Continuous decks

1

Main engine

1x Wärtsilä/Yichang Marine 6RT-FLEX82C - 2 stroke 6 cylinder 480 x 2.000 mm combustion engine 7.000 kW at 116,0 rpm

Propellers

1x Fixed pitch propeller

Generators

3x Main diesel generatorsets each 570 kVA

Number of holds

5

Hold 1: 25,60 x 9,1 / 20,20 m

Hold 2: 28,80 x 20,02 / 20,02 m

Hold 3: 26,40 x 20,02 / 20,02 m

Hold 4: 28,80 x 20,02 /20,02 m

Hold 5: 28,80 x 20,02 / 7,20 m

Hold capacity

Grain / bale:

Hold 1: 7.605 m³ / 7.400 m³

Hold 2: 10.757 m² / 10.551 m³

Hold 3: 9.884 m³ / 9.683 m³

Hold 4: 10.757 m² / 10.551 m³

Hold 5: 9.901 m³ / 9.746 m³

Total: 48.904 m³ / 47.931 m³

Hold ventilation

Mechanical

Number of hatches

5

Hatch 1: 16,00 x 15,00 m

Hatch 2: 22,40 x 18,00 m

Hatch 3: 19,20 x 18,00 m

Hatch 4: 22,40 x 18,00 m

Hatch 5: 22,40 x 18,00 m

Hatch covert type

Folding hydraulic

Max permitted loads

Hatch 1-3-5: 25,0 t/m²

Hatch: 2-4: 20,0 t/m²

Tank capacities

IFO: 1.223 m³

MDO: 391 m

Cargo gear

4x Electro hydraulic cranes - SWL 30,0 t each

Commercial manager

Fednav Ltd.

1000 de La Gauchetière Street West, Suite 3500

Montreal - Quebec

Canada

ISM manager

Anglo Eastern Shipmanagement

17th Floor, Kingston International Centre, 19, Wang Chiu Road, Kowloon Bay, Kowloon

Hong Kong - China

Previous managers

Fednav Group

1000 de La Gauchetière Street West, Suite 3500

Montreal - Quebec

Canada

Registered owner

Federal Cornwallis Ltd.

1st Floor, The Atrium Haggatt Hall

St. Michael, BB11063

Barbados

Latest data adjustment

01 October 2024
