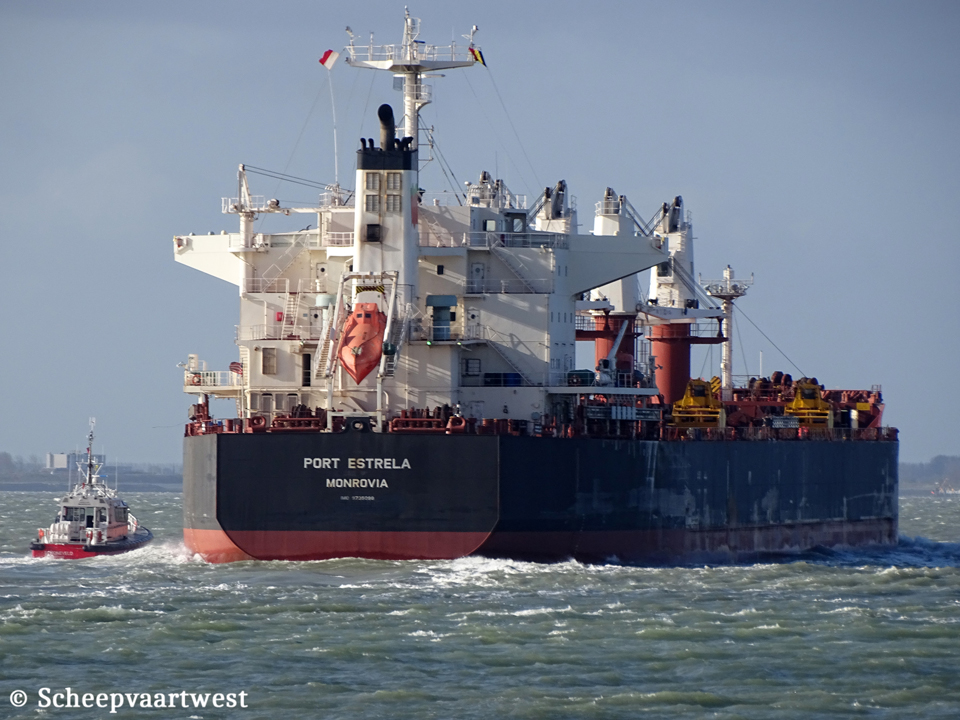

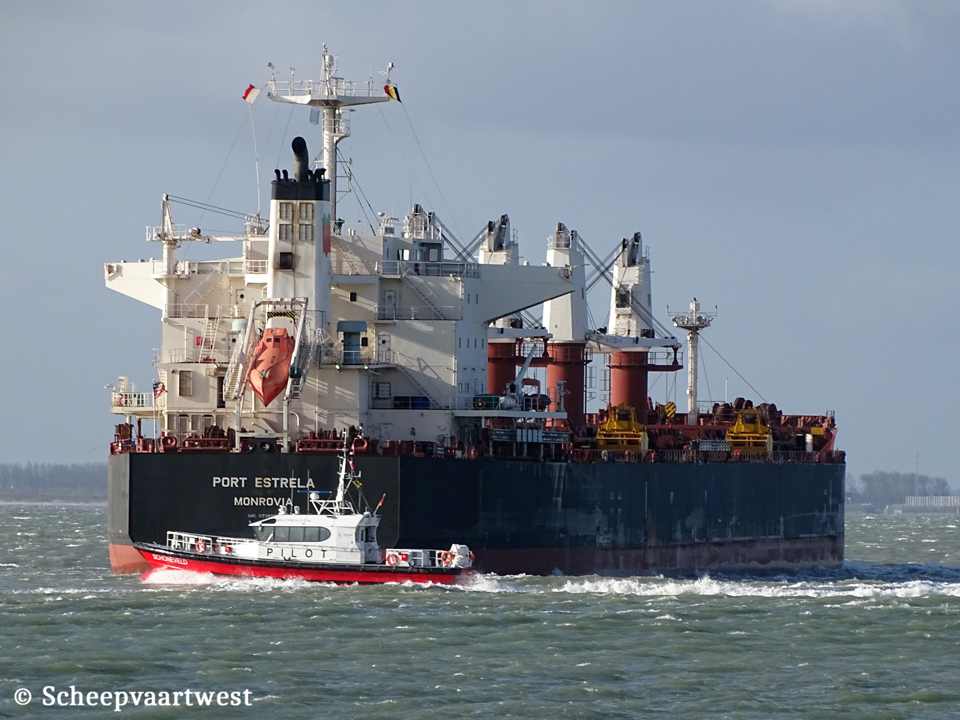

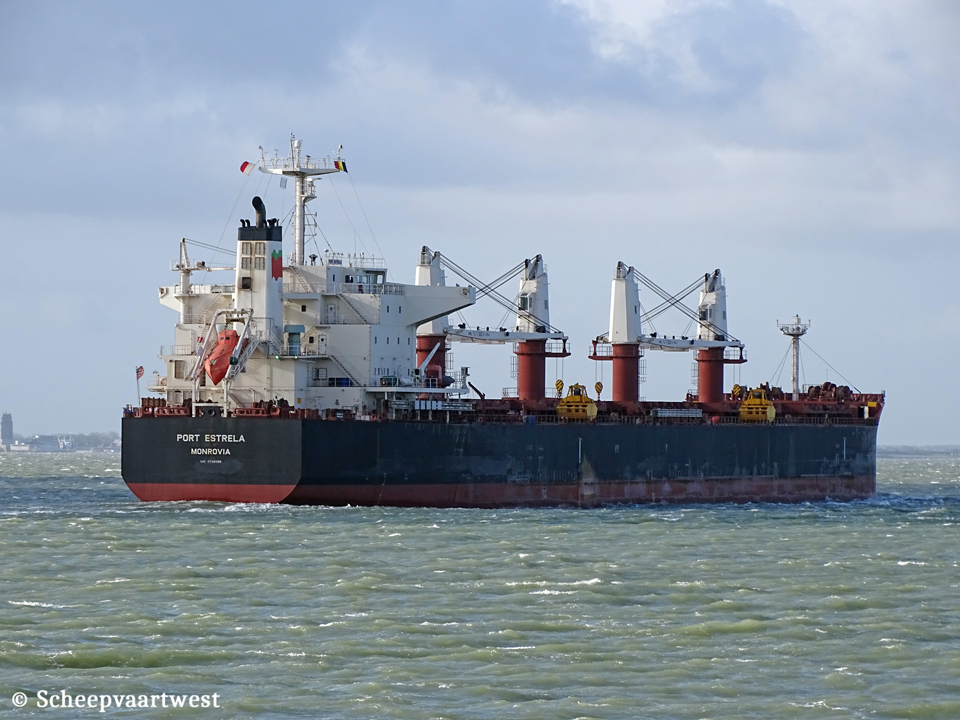

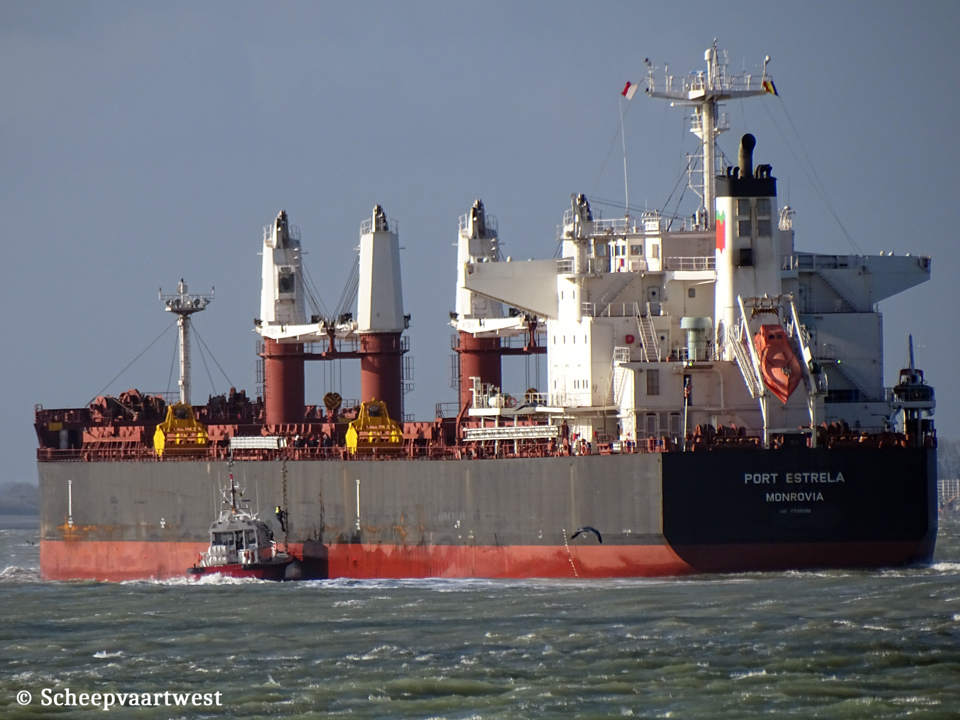

| Westerschelde 19 February 2020 |
 |
 |
 |
||
| Westerschelde 19/02/20 | Westerschelde 19/02/20 | Westerschelde 19/02/20 |
|
Name |
PORT ESTRELA |
|
Type |
Bulk carrier |
|
IMO-number |
9735098 |
|
Call sign |
D5LI7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
34.447 t Suez: 36.058,57 t |
|
DWT |
61.452 t |
|
NT |
20.174 t Suez: 33.131,75 t Panama: 28.536 t |
|
Displacement |
72.397 t |
|
Length |
199,90 m overall 197,00 m between perpendiculars |
|
Breadth |
32,24 m moulded |
|
Draught |
Summer: 13,00 m |
|
Freeboard |
5.626 mm |
|
Depth |
18,60 m moulded |
|
Speed |
Max: 15,8 knots |
|
Built |
2017 |
|
Keel laid |
20/11/2015 |
|
Launch date |
21/03/2016 |
|
Delivery date |
23/01/2017 |
|
Builder |
Dalian Cosco Khi Ship Engineering Co., Ltd. No. 20 Haiyun Road, Lvshun Economic Development Zone, Dalian, Liaoning China |
|
Yard number |
DE022 |
|
Hull material |
Steel |
|
Main engine |
1x HHM/MAN-B&W 6S50MEB9.3 - 2 stroke 6 cylinder 500 x 2.214 mm combustion engine Mcr 8.130 kW / 11.054 hp at 108,0 rpm Manufacturer: Hudong Heavy Machinery Co., Ltd. |
|
Propellers |
1x Fixed pitch solid keyless propeller 5 blades Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
1x Composite boiler - 7,0 MPa Manufacturer: Alfa Laval Qingdao Ltd. |
|
Generators |
3x Main diesel generatorsets each 650 kW Manufacturer: Taiyo Electric Co., Ltd. |
|
Number of holds |
5 |
|
Cargo hold capacity |
Grain: 77.546,2 m³ Bale: 73.552,0 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fresh water: 374,80 m³ Diesel oil: 165,70 m³ Fuel oil: 2.115,60 m³ Ballast: 18.577,00 m³ Lub oil: 100,60 m³ |
|
Lifting equipment |
1x Provision crane - SWL 3,0 t Manufacturer: Nantong Sekigahara Machinery Manufacturing Co., Ltd. |
|
Cargo gear |
4x Hydraulic deck crane - SWL 30,5 t each Manufacturer: Jiangsu Masada Heavy Industries Co., Ltd. |
|
Crew |
25 |
|
ISM & commercial manager |
Portline Bulk International SA Avenida Infante Dom Henrique 332-3 Lisbon Portugal |
|
Registered owner |
Marina Sands Shipping Corp. Care of Portline Bulk International SA Avenida Infante Dom Henrique 332-3 Lisbon Portugal |
|
Latest data adjustment |
01 March 2022 |
