Spijkenisse 14 April 2012 |
|
Name |

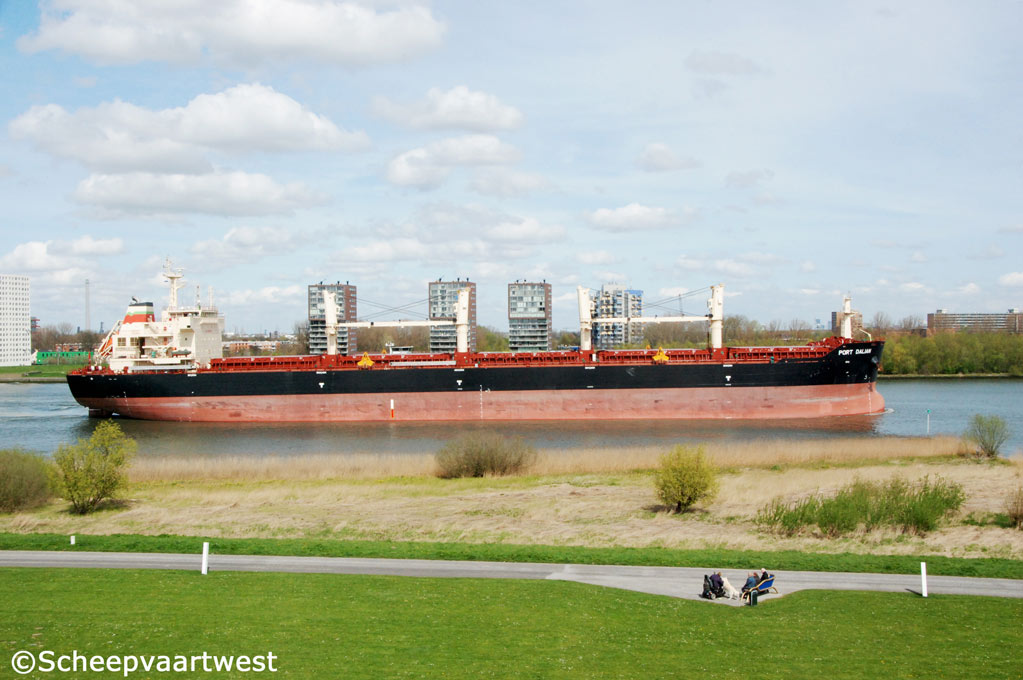

PORT DALIAN |
|
Type |
Bulk carrier |
|
IMO-number |
9456410 |
|
Call sign |
VRJA8 |
|
Flag |
Hong Kong Special Administrative Region of the People's Republic of China |
|
Port of registry |
Hong Kong |
|
GT |
33.036 t registered Suez: 34.181,18 t |
|
DWT |
Summer: 56.737 t |
|
NT |
19.270 t registered Suez: 31.011,67 t Panama: 27.383,4 t |
|
Length |
189,99 m overall 185,00 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
12,78 m |
|
Freeboard |
5.223 mm |
|
Depth |
18,00 m moulded |
|
Speed |
14,5 knots |
|
Built |
2012 |
|
Keel laid |
26.12.2010 |
|
Launch date |
02.07.2011 |
|
Date of completion |
12.01.2012 |
|
Builder |
Cosco Zhoushan Shipyard Co., Ltd. |
|
Yard number |
ZS07032 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Watertight bulkheads |
12 |
|
Main engine |
1x 6S50MC-C - 6 cylinder 500 x 2.000 mm diesel engine - 9.480 kW at 127,0 rpm Manufacturer: Dalian Marine Diesel Co., Ltd. |
|
Propellers |
1 Manufacturer: Wuhan Heavy Industry Casting and Forging Co., Ltd. |
|
Boilers |
Fired Exhaust Gas Boiler, Mission OC - 9,0 bar Manufacturer: Aalborg Industries Ltd. |
|
Generators |
3x Main diesel generatorsets HFC7 504-14K each 600 kW Manufacturer: HHI Electro Electric System |
|
Cargo hold capacity |
Grain: 71.634,09 m³ |
|
Number of tanks |
Ballast: 18 Fuel oil: 11 Lubricating oil: 8 Sludge: 4 Fresh Water: 4 Diesel oil: 4 Chain: 2 Organic compound: 1 Fixed ballast liquid: 1 Slop: 1 Waste water: 1 |
|
Tank capacities |
Cargo ballast: 14.553,08 m³ Diesel oil: 233,01 m³ / 198,05 t Freshwater: 837,90 m³ Fuel oil: 2.146,14 m³ / 2.103,70 t Lube oil: 129,93 m³ / 117,59 t Tank Ballast: 16.333,36 m³ / 16.741,69 t |
|
Lifting equipment |
1x Engine room crane - SWL 3,0 t 1x Mono-rail provision crane - SWL 4,0 t Manufacture: Jiangyin Oya Marine Machinery Co., Ltd. |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each Manufacture: Wuhan Marine Machinery Plant Co., Ltd. |
|
Manager |
Portline Bulk International S.A. |
|
Registered owner |
Conicca Limited |
|
Latest data adjustment |
01 October 2014 |
