| Brugge, Belgium 11 Aptil 2022 |
 |
 |
 |
||
| Brugge 11/04/22 | Brugge 11/04/22 | Brugge 11/04/22 |
|
Name |

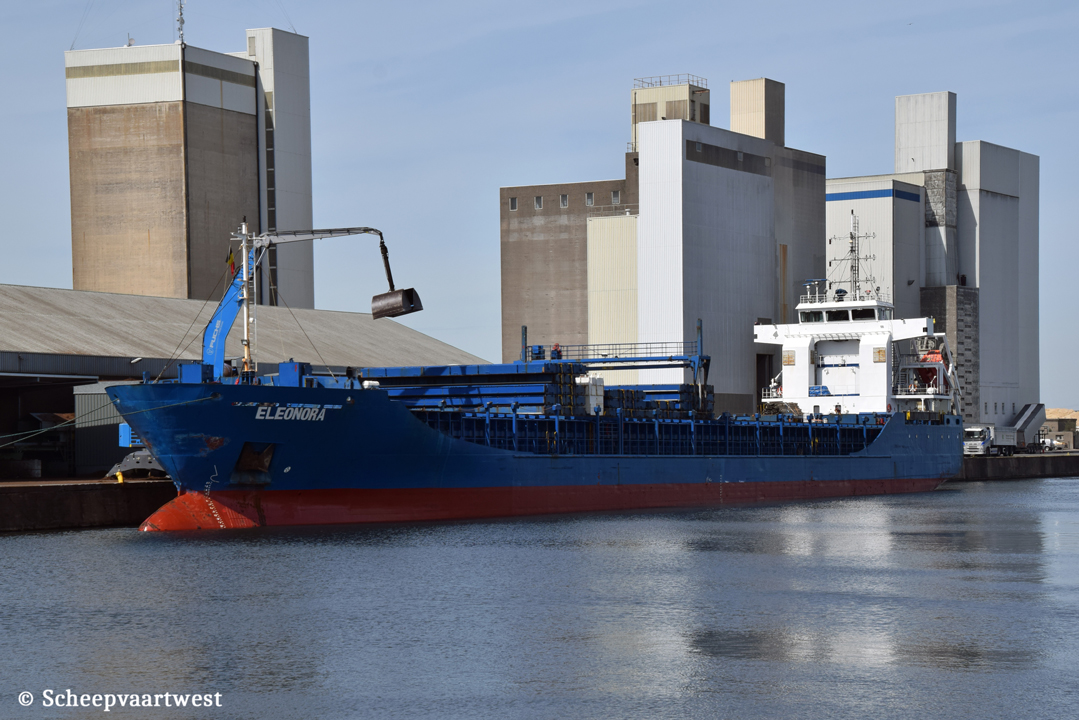

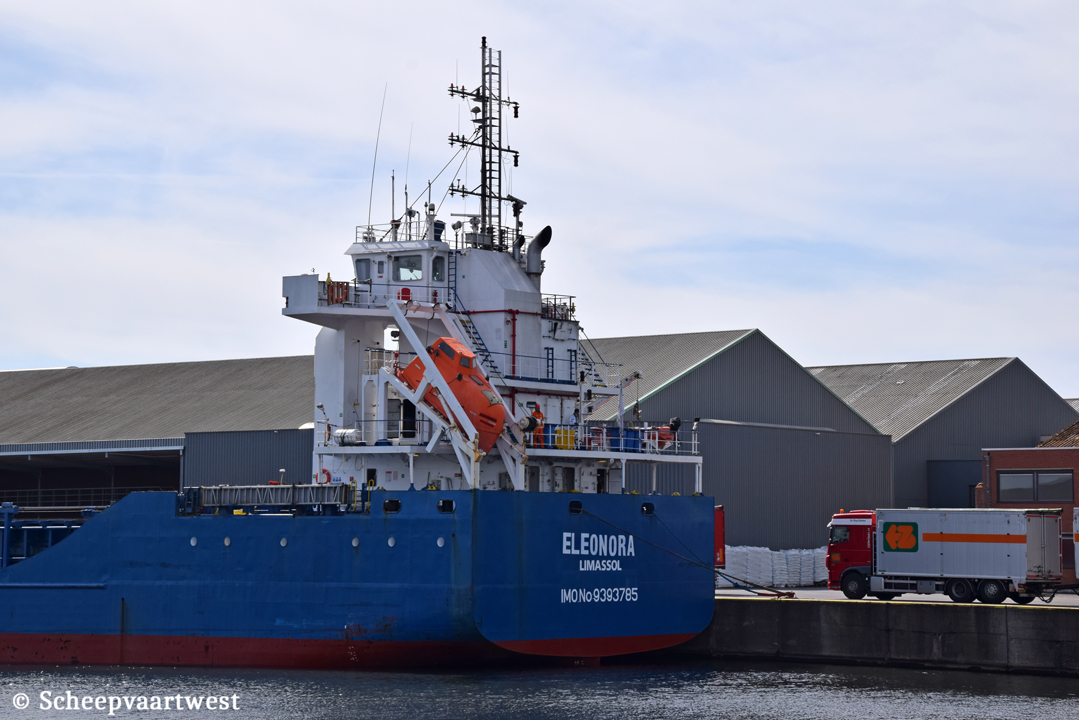

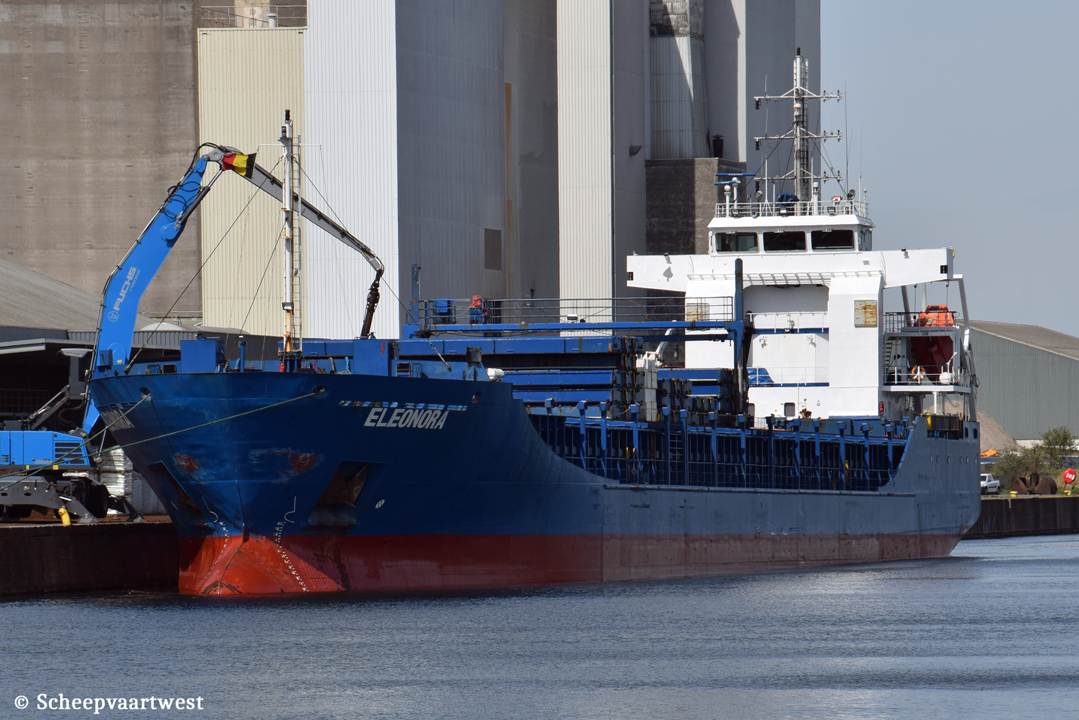

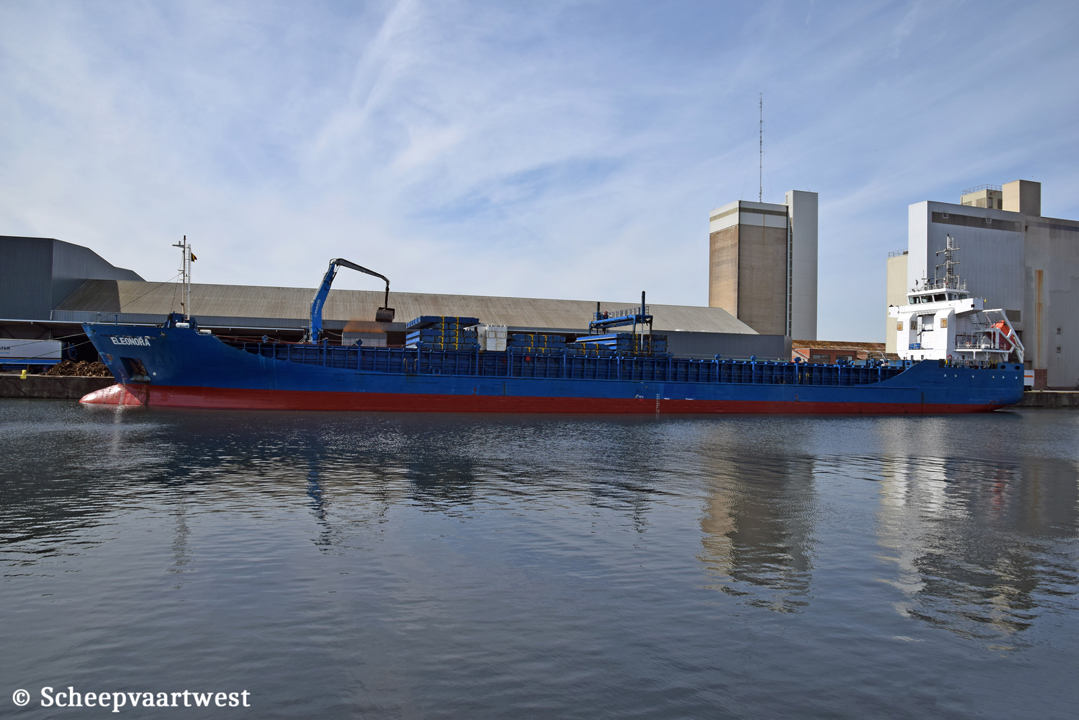

ELEONORA |
|
Previous names |
Emssky |
|
Type |
Multi-purpose dry cargo ship -Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9393785 |
|
Call sign |
5BME5 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
Previous flags |
Antigua & Barbuda, St. John's - Call sign: V2EP7 |
|
GT |
4.842 t |
|
DWT |
Summer: 6.250 t Winter: 6.050 t |
|
NT |
2.619 t |
|
Number of 20ft containers |
In hold: 174 On deck: 159 Total: 333 |
|
Length |
115,00 m overall 109,90 m between perpendiculars |
|
Breadth |
16,03 m extreme |
|
Draught |
7,50 m moulded |
|
Air draft |
29,00 m |
|
Depth |
7,50 m to main deck |
|
Speed |
Service: 12,5 knots Max: 13,1 knots |
|
Built |
2011 |
|
Keel laid |
04/06/2007 |
|
Launch date |
03/01/2010 |
|
Date of completion |
15/02/2011 |
|
Builder |
Bharati Ratnagiri Yard Ratnagiri India |
|
Yard number |
330 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 9L26A - 4 stroke single acting 6 cylinder 260 w 320 mm combustion engine 2.937 kW / 3.993 hp at 1.000 rpm Builder: Wärtsilä Nederland BV - The Netherlands |
|
Propellers |
1x Controllable pitch propeller - aft at 202 rpm |
|
Boilers |
1x Thermal oil heater, oil fired Mission TFO V-3-0-TFO-003 |
|
Shaft generator |
1x 428 kW - 440 Volt 60 Hz |
|
Generators |
2x Agco Sisu V84 CTAG-4V - 4 stroke 8 cylinder diesel 111x 142 mm engine MCR 175 kW connected with generator 157 kW / 440 Volt 60 Hz Builder: Agco Sisu Diesel |
|
Emergency/harbour gen. |
1x Valmet diesel generatorset 70 kVA |
|
Bow thruster |
1x Fixed pitch tunnel thruster 350 kW / 476 bhp, forward |
|
Number of holds |
2x Boxshaped hold narrowing fore and aft Hold 1: 37,30 x 13,50 x 9,00 m Hold 2: 53,20 x 13,50 x 9,00 m |
|
Cargo hold capacity |
Hold 1: 3.102 m³ Hold 2: 6.463 m³ Grain: 9.565 m³ |
|
Hold ventilation |
6x Electric driven air changes |
|
Number of hatches |
2 Hatch 1: 27,30 x 13,50 m Hatch 2: 53,20 x 13,50 m |
|
Hatch covers type |
Pontoon hatch covers |
|
Max. permitted loads |
Tanktop: 15,0 t/m² Hatch cover: 1,75 t/m² |
|
Pumps |
2x Ballast pumps each 150 m³/h |
|
Tank capacities |
Fuel: 339,7 m³ Ballast: 1.740 m³ Potable water: 62,0 m³ |
|
Anchor equipment |
Length: 495,00 m Diameter: 44 mm |
|
Crew size |
10 |
|
Commerical manager |
Hermann Lohmann Bereederungen GmbH & Co. KG Hafenstrasse 16 49733 Haren (Ems) Germany |
|
ISM manager |
Hermann Lohmann Schiffahrtsverwaltung GmbH - Germany |
|
Registered owner |
Herman Lohmann Schiffahrts GmbH & Co. KG MS "ELEONORA" - Germany |
|
Latest data adjustment |
22 April 2022 |
