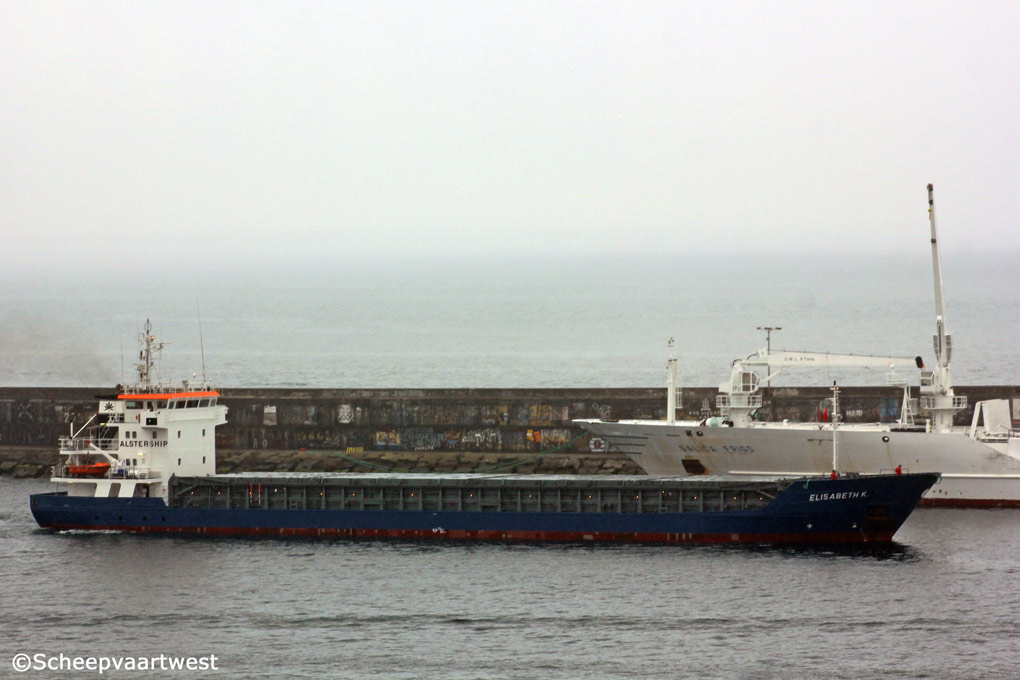

Ponta Delgada - Azores 15 June 2015 |
|
Name |
ELISABETH K |
|
Previous names |
1994 Launch as: Ole N |
|
Type |
General cargo ship - Equipped for carriage of containers |
|
IMO-number |
9006356 |
|
Call sign |
PBEO |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
Previous flags |
1994 - 12/2001 Austria, Wien - Call sign: OENP |
|
GT |
2.449 t |
|
DWT |
Summer: 3.710 t |
|
NT |
1.380 t |
|
Number of 20ft containers |
180 |
|
Length |
87,85 m overall 81,83 m between perpendiculars |
|
Breadth |
12,81 m moulded |
|
Draught |
Summer: 5,47 m |
|
Forecastle |
6,40 m |
|
Depth |
7,10 m moulded |
|
Speed |
Max: 12,0 knots Service: 10,5 knots |
|
Built |
1994 |
|
Keel laid |
30/04/1993 |
|
Launch date |
20/121993 |
|
Date of completion |
031994 |
|
Builder |
Peene Werft GmbH |
|
Yard number |
410 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
4 |
|
Movable bulkhead |
2x Portable grain bulk heads |
|
Continuous decks |
1 |
|
Main engine |
1x Deutz MWM SBV 8M628 - 4 stroke single acting 8 cylinder 240 x 280 mm combustion engine 1.245 kW at 900 rpm Year of manufacture: 1993 Manufacturer: Deutz MWM Motoren-Werke Mannheim AG Mannheim Federal Republic of Germany |
|
Propellers |
1x Solid propeller - aft at 228 rpm |
|
Boilers |
1x Water heater, oil fired - 4,0 bar Heating surface: 4,71 m² |
|
Electric installations |
2x Plants each 400/220 V - 210 kVA 1x Plant 400/220 V - 72 kVA |
|
Generators |
2x MWM Main diesel generatorset each 210 kVA / 240 kW 1x Diesel generatorset 72 kVA |
|
Compressed air receivers |
2x Receivers each 125 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Bow thruster |
1x Schottel 184 kW |
|
Number of holds |
1 Dimension: 56,54 x 10,20 x 8,00 m |
|
Cargo hold capacity |
Grain: 4.666 m² / 166.642 ft³ Bale: 4.635 m³ |
|
Cargo hold ventilation |
6x Air exchanges / hour |
|
Number of hatches |
1 Dimension: 56,54 x 10,20 m |
|
Hatch type |
Kvaerner Multifold |
|
Max. permitted loads |
Tanktop: 15 t/m² |
|
Tank capacities |
Water ballast: 1.642 m³ Fresh water: 57 m³ Gas oil: 122,8 m³ |
|
Anchor equipment |
3x Anchors weight each 1.740 kg Chain length: 440,00 m |
|
Cargo gear |
Gearless |
|
Crew size |
9 |
|
Manager |
Flagship Management B.V. |
|
Owner |
Rederij K & T Holland C.V. |
|
Previous owners |
1994 - 12/2001 Krohn Schiffahrts GmbH, Wien - Austria 12/2001 - 04/2015 Rufinia Beheer B.V., Delfzijl - The Netherlands 04/2015 - 06/2017 Lian Shipping B.V., 9901 HV Appingedam - The Netherlands |
|
Renamed |
2019 Buvik Gibraltar - Call sign: ZDRK2 Manager: Karmoy Skipconsult Management AS, Avaldsnes - Norway Owner: Tornes Bulk AS, Avaldsnes - Norway Renamed at: Szczecin - Poland |
|
Latest data adjustment |
11 November 2019 |
