| Westerschelde 10 March 2019 |
|
Name |

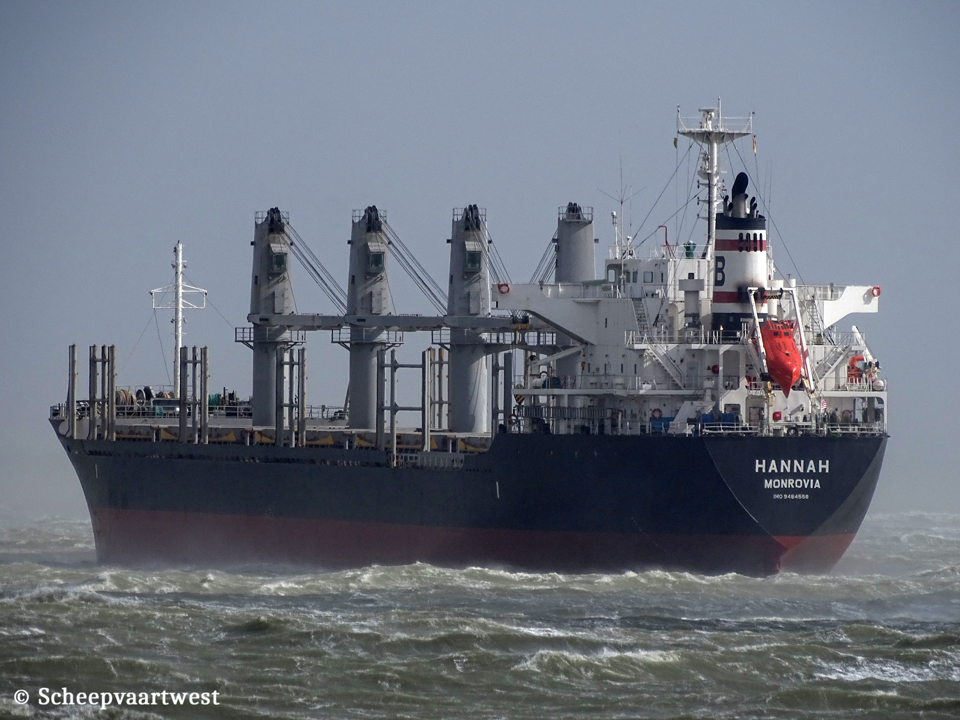

HANNAH |
|
Type |
Bulk carrier / Lumber carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9464558 |
|
Call sign |
D5AK9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2008 - 2015 Malta, Valletta - Call sign: 9HRT9 |
|
GRT |
17.018 t |
|
DWT |
28.354 t |
|
NRT |
10.109 t |
|
Lightship |
6.399 t |
|
Length |
169,37 m overall |
|
Breadth |
27,20 m moulded |
|
Draught |
Summer: 9,82 m |
|
Moulded L x B x D |
160,40 x 27,20 x 13,60 m |
|
Registered L x B x D |
161,21 x 27,20 x 13,60 m |
|
Keel to mast end |
41,00 m |
|
Freeboard |
Summer: 3.825 mm |
|
Depth |
13,60 m moulded |
|
Speed |
Service: 14,5 knots Max: 16,2 knots |
|
Built |
2008 |
|
Keel laid |
04/04/2008 |
|
Launch date |
30/06/2008 |
|
Date of completion |
19/09/2008 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Marugame Headquarters Japan |
|
Yard number |
1515 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6S42MC - 2 stroke single acting 6 cylinder 420 x 1.764 mm combustion engine 5.850 kW / 7.954 hp at 129,0 rpm Manufacturer: Makita Corporation |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 420 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,8 MPa Evaporation: 2,07 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Generatorsets total 1.715 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 35.742 m³ Grain: 37.320 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 1.369 m³ Fresh water: 308 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t |
|
Commercial manager |
Reederei Johann M.K. Blumenthal GmbH & Co., KG Palmaille 118-120 22767 Hamburg Germany |
|
ISM manager |
Blumenthal Asia Pte Ltd. 31-01A, 3, Anson Road Singapore 079909 Republic of Singapore |
|
Registered owner |
Heta Shipholding Ltd. Monrovia Liberia |
|
Latest data adjustment |
11 May 2022 |
