| Westerschelde 01 August 2020 |
|
Name |

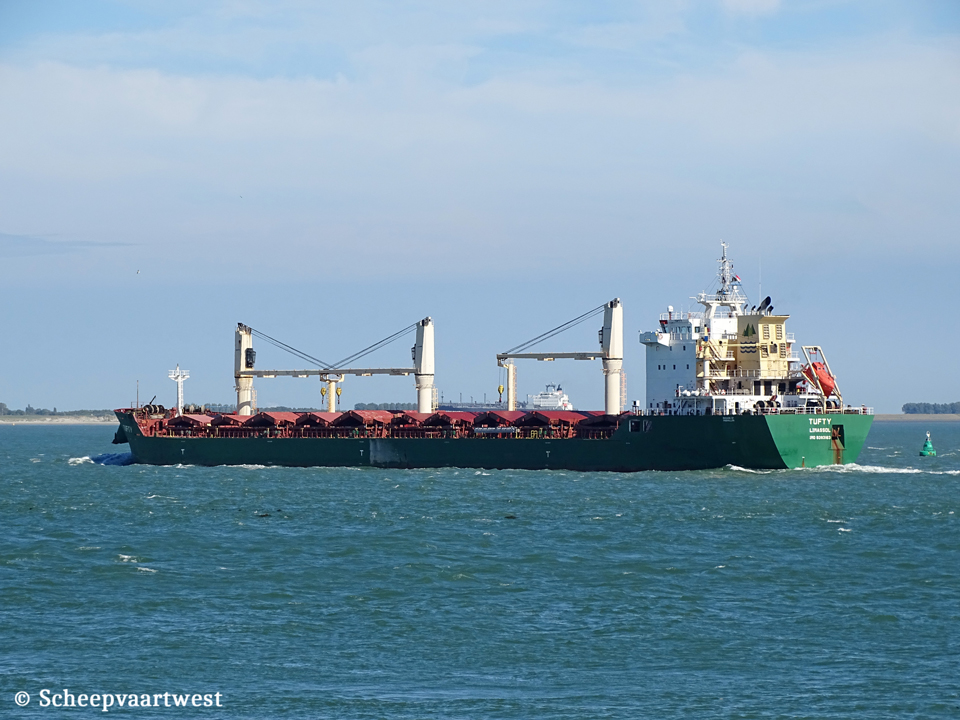

TUFTY |
|
Type |
Bulk carrier - Handysize |
|
IMO-number |
9393163 |
|
Call sign |
5BMK2 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
19.814 t |
|
DWT |
30.803,2 t |
|
NT |
10.208 t |
|
Length |
185,14 m overall 178,03 m between perpendiculars |
|
Breadth |
23,99 m extreme 23,71 m moulded |
|
Draught |
Summer: 10,40 m |
|
Depth |
14,60 m |
|
Speed |
14,0 knots |
|
Built |
2009 |
|
Keel laid |
15/07/2008 |
|
Launch date |
10/10/2008 |
|
Date of completion |
04/03/2009 |
|
Builder |
Shanhaiguan Shipbuilding Industry Co., Ltd. Weihai China |
|
Yard number |
SHG-020 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6S46MC-C - 2 stroke 6 cylinder 460 x 1.932 mm combustion engine 8.280 kW at 118,0 rpm Manufacturer: Yichang Marine Diesel Engine Co., Ltd. |
|
Propellers |
1x Solid propeller aft at 118,0 rpm |
|
Boilers |
1x Auxiliary boiler, composite Steam boiler, oil fired / exhaust gas heated - 9,0 bar Heating surface 34,0 ² Heating surface 200,0 m² Manufacturer: Qingdao Marine Boiler Works Co., Ltd. |
|
Electric installations |
3x Plant 450 V - 850 kVA 1x Plant 450 V - 156 kVA 2x Plants each 24 V - 200 Ah 4x Plants each 24 V - 400 A |
|
Generators |
3x Yanmar N21L-SV main diesel generatorsets each 850 kVA |
|
Emergency generator |
1x Sisu 634 DSBG diesel generatorset 150 kVA |
|
Batteries |
4x Batteries for UPS lighting each 400 Ah 2x Batteries for UPS radio each 200 Ah |
|
Compressed air receivers |
2x Receivers each 4.500 litres - 30,0 bar 1x Receiver 160 litres - 30,0 bar 1x Receiver 500 litres - 10,0 bar 1x Receiver 1.000 litres - 8,0 bar |
|
Bow thruster |
1x Transverse thruster 900 kW, forward |
|
Number of holds |
6 Hold 1: 19,20 x 14,2 x 20,00 m Hold 2: 23,70 x 20,00 m Hold 3: 21,40 x 20,00 m Hold 4: 22,90 x 20,00 m Hold 5: 21,40 x 20,00 m Hold 6: 20,00 x 19,20 x 6,40 m |
|
Cargo hold capacity |
Grain / Bale Hold 1: 4.662,8 / 4.579,1 m³ Hold 2: 7.675,2 / 7.475,6 m³ Hold 3: 7.400,4 / 7.218,1 m³ Hold 4: 6.241,6 / 6.217,7 m³ Hold 5: 7.397,2 / 7.219,3 m³ Hold 6: 5.257,7 / 5.201,1 m³ Total: 38.634,9 / 37.910,9 m³ |
|
Number of hatches |
6 Hatch 1: 10,4 x 13,2 m Hatch 2: 19,2 x 17,4 m Hatch 3: 19,2 x 17,4 m Hatch 4: 16,0 x 17,4 m Hatch 5: 19,2 x 17,4 m Hatch 6: 13,6 x 17,4 m |
|
Hatch type |
MacGregor high stowing & folding, operated by external hydraulic cylinders |
|
Tank capacities |
Ballast: 15.632,9 m³ |
|
Anchor equipment |
3x Anchors weight each 6.900 kg Chain Length: 605,00 m Diameter: 64 mm |
|
Cargo gear |
3x Deck cranes - SWL 30,0 t each |
|
Crew size |
25 |
|
ISM & commercial manager |
Navarone S.A. 6, Cheimaras str. 151 25, Amaroussion Greece |
|
Registered owner |
Taboga Shipping Company Ltd. c/o Navarone SA Athens Greece |
|
Latest data adjustment |
15 June 2022 |
