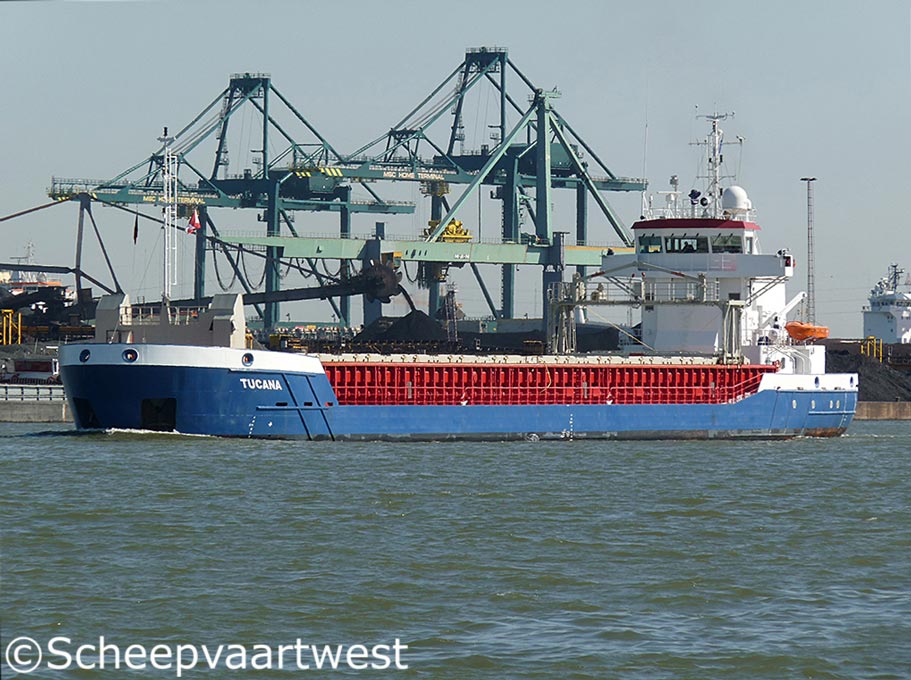

| Antwerpen 06 April 2010 |
 |
 |
 |
||

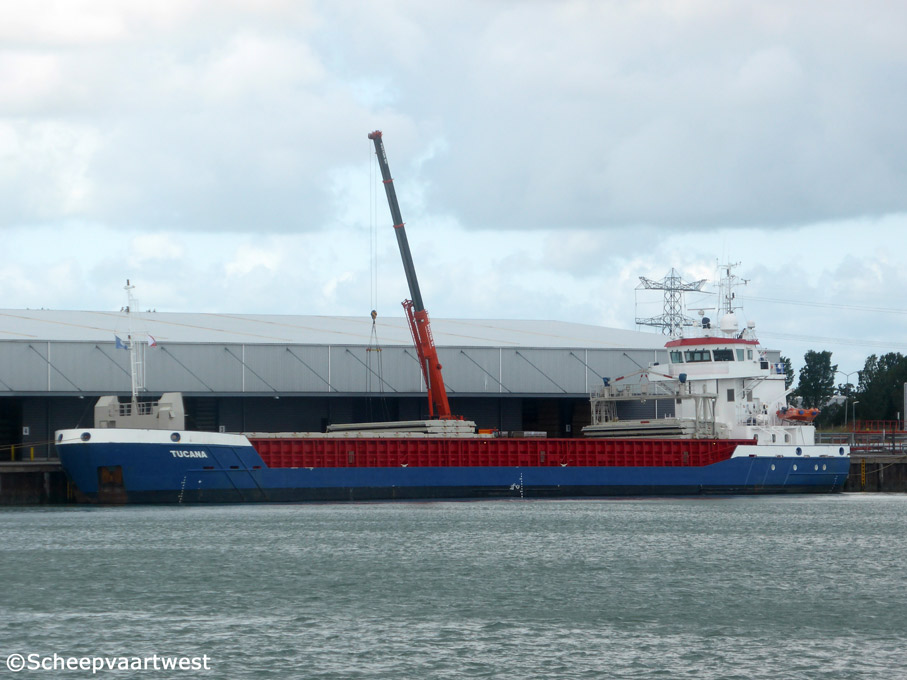

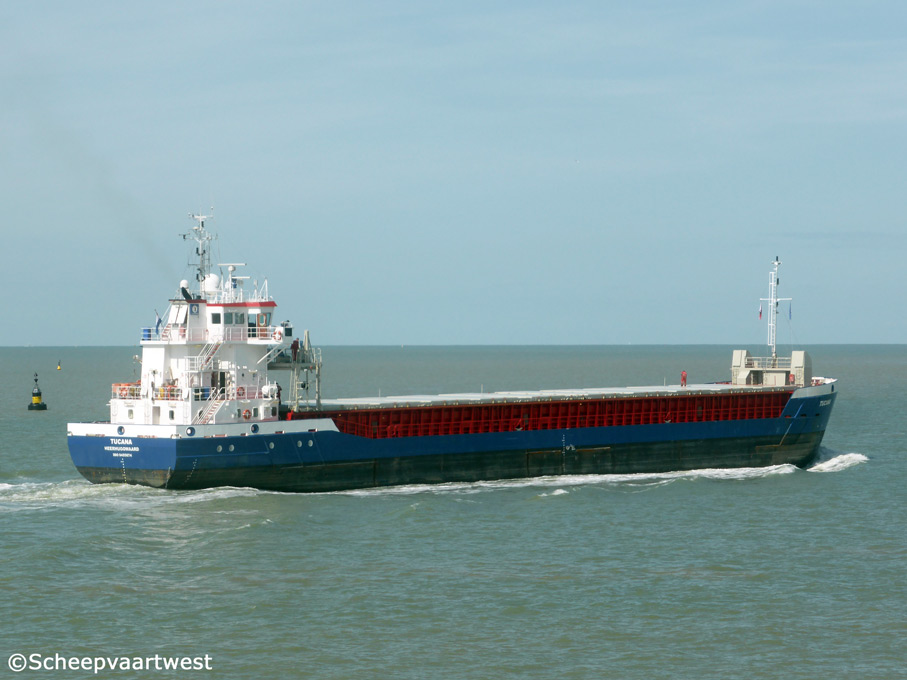

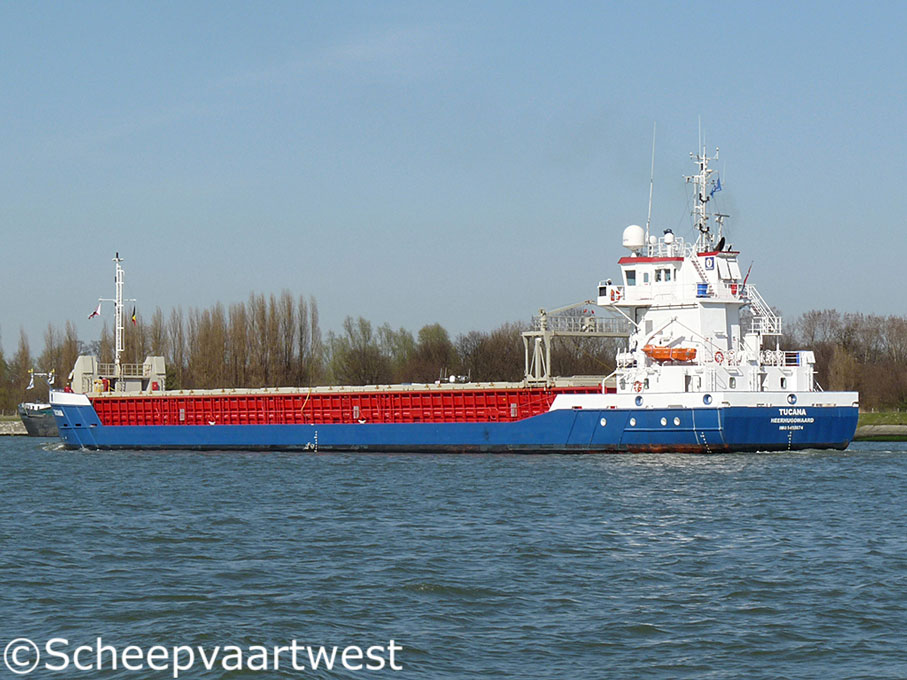

| Antwerpen 06/04/10 | Vlissingen 29/07/15 | Westerschelde 31/07/15 |
|
Name |
TUCANA |
|
Type |
Multi-purpose dry cargo carrier - Equipped for dangerous goods according - Strengthened for heavy cargo |
|
Basic functions |
Transport of bulk, steel coils, containers, forest products, general cargo |
|
IMO-number |
9455674 |
|
Call sign |
PBAQ |
|
Flag |
The Netherlands |
|
Port of registry |
Heerhugowaard |
|
GT |
2.545 t |
|
DWT |
3.783 t |
|
NT |
1.640 t |
|
Number of 20ft containers |
In hold: 108 On deck: 80 Total: 188 |
|
Length |
88,60 m overall 84,99 m between perpendiculars |
|
Breadth |
12,50 m extreme |
|
Draught |
Max: 5,42 m |
|
Air draft |
Min.: 22,00 m |
|
Depth |
7,00 m moulded |
|
Speed |
12,3 knots |
|
Built |
2008 |
|
Delivery date |
17.10.2008 |
|
Builder casco |
Nevskiy Shipbuilding (Nevskiy Sudostroitelnyy I Sudorem Zavod) |
|
Builder completion |
Damen Shipyards B.V |
|
Yard number |
9372 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Continuous decks |
1 |
|
Main engine |
1x MAK 8M20 C - 4 stroke single acting 8 cylinder 200 x 300 mm diesel engine - Output 1.520 kW at 1.000 rpm Manufacturer: M.A.K. Caterpillar, Kiel, Germany |
|
Propeller |
1x Controllable pitch propeller - diameter 2.600 mm |
|
Bow thruster |
1x Veth-Jet 288 kW - electrically driven |
|
Shaft generator |
1x 435 kVA-50Hz |
|
Diesel generator |
1x Sisu main diesel generatorset 175 kVA-50Hz |
|
Emergency/harbour generator |
1x Sisu diesel generatorset 77 kVA-50Hz |
|
Auxiliary |
2x Starting air compressors 1x HFO separator 1x LO separator 1x GO separator 1x Booster-unit 2x Fuel oil trim pumps 1x Bilge water separator, acc. to Marpol regulations 2x General service pumps, each 150 m³/h at 2,3 bar 1x Fire fighting pump 1x Freshwater pressure set 1x CO2 fire fighting system for engine room and cargo hold 1x steering gear unit 1x Freshwater generator 2,0 m³/24 h |
|
Number of holds |
1 62,50 x 10,12 x 8,43 |
|
Hold capacities |
5.250 m³ / 185.400 ft³ |
|
Hatches |
Weather deck hatches: 62,70 x 10,10 m Steel pontoon hatches with gantry crane and 2 hydraulic cranes each SWL 500 kg |
|
Deck lay-out & equipment |
1x Elec. driven bow anchor winch with two warping heads 1x Elec. driven capstan aft Rudder, fishtail type Container fittings in tank top and on hatch covers Lashing eyes in hold and lashing bollards on outside of coaming 2x Moveable grain bulkheads with 13 stowage positions Electrically driven hold ventilation for 6 air changes per hour |
|
Tank capacities |
HFO: 144 m³ Gas oil: 55 m³ Lub oil clean: 6,7 +1,9 m³ Dirty oil: 6 m³ Sludge: 6 m³ Sewage: 12 m³ Potable water: 55 m³ Ballast water: 1.340 m³ |
|
Accommodation |
For captain and crew for a total of 8 persons with heating, ventilation and air-conditioning |
|
Manager |
Koninklijke Wagenborg shipping B.V. |
|
Owner |
Toucan Maritime |
|
Registered owner |
C.V. Scheepvaartonderneming Tucana, |
|
Latest data adjustment |
23 August 2015 |
