| Westerschelde 20 September 2019 |
 |
| Westerschelde 20/09/19 |
|
Name |

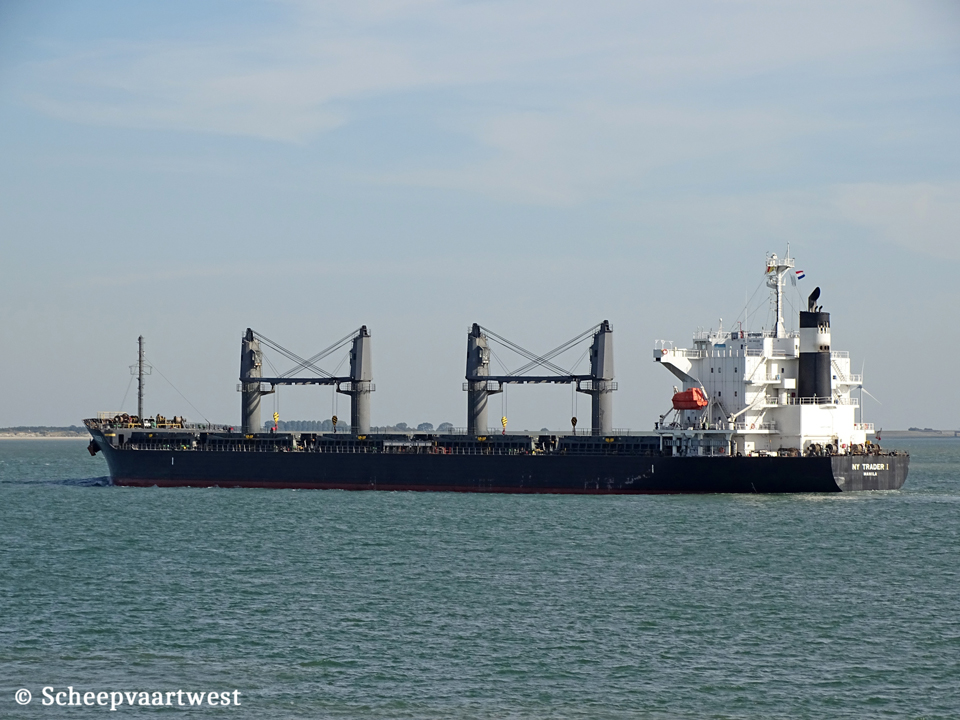

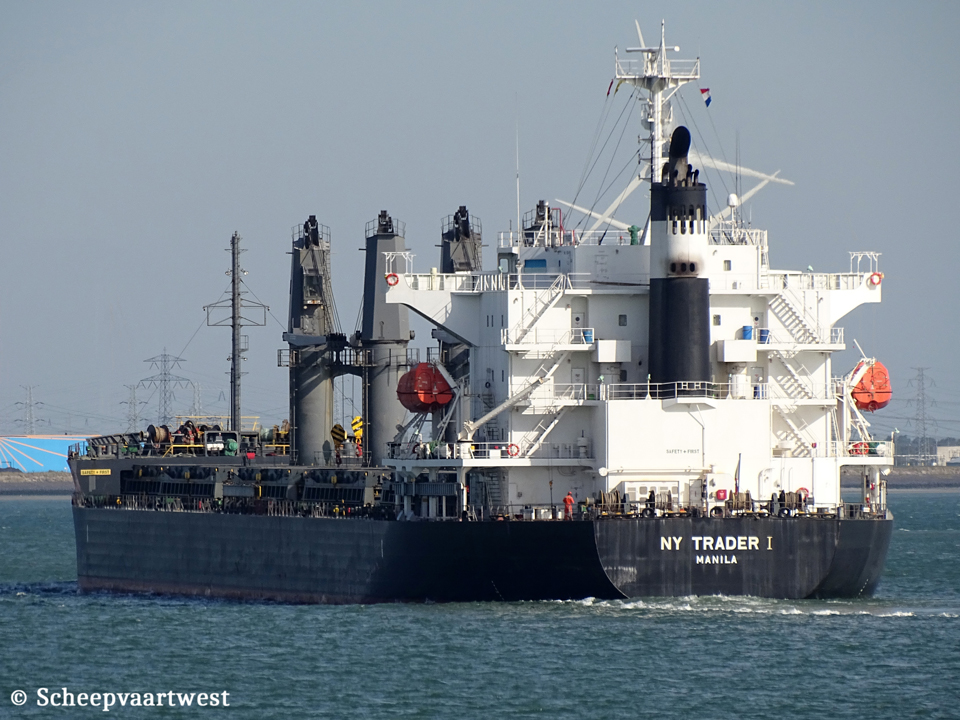

NY TRADER I |
|
Type |
Bulk carrier - Handymax |
|
IMO-number |
9691498 |
|
Call sign |
DUFE |
|
Flag |
Philippines |
|
Port of registry |
Manila |
|
GT |
23.263 t |
|
DWT |
38.271 t |
|
NT |
12.093 t |
|
Length |
179,97 m overall 173,00 m between perpendiculars |
|
Breadth |
29,80 m |
|
Draught |
Summer: 10,54 m |
|
Keel to mast end |
44,46 m |
|
Freeboard |
4.500 mm |
|
Depth |
15,00 m |
|
Speed |
15,4 knots |
|
Built |
2014 |
|
Date of completion |
22/05/2014 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Japan |
|
Yard number |
805 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x Makita/B&W 6S46MC-C - 2 stroke 6 cylinder 460 x 1.932 mm combustion engine 7.860 kW / 10.679 hp at 129,0 rpm Manufacturer: Makita Corporation, Takamatsu - Japan |
|
Propellers |
1x Screw propeller solid - aft at 129,0 rpm |
|
Boilers |
1x CHM Miura 166,30 m² / 6,0 bar |
|
Generators |
3x Main diesel generatorsets each 550 kVA - 440 kW - 679 hp |
|
Emergency generator |
1x Diesel generatorset 65 kVA - 52 kW - 111 hp |
|
Number of holds |
5 |
|
Cargo hold capacity |
Grain: 47.125,65 m³ bale: 47.125 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Diesel oil: 187,73 m³ Freshwater: 294,84 m³ Fuel oil: 1.850,5 m³ Lube oil: 98,69 m³ Tank ballast: 15.124,27 m³ |
|
Lifting equipment |
2x Provision cranes - SWL 0,9 t each 1x provision crane - SWL 2,0 t |
|
Cargo gear |
4x Deck cranes - SWL 30,7 t each |
|
Manager
|
Nisshin Shipping Co Ltd. 19th Floor, Nihonbashi 1-chome Building, 4-1 Nihonbashi 1-chome, Chuo-ku Tokyo, 103-0027 Japan |
|
ISM manager |
Victoria Ship Management PHI RCM Building, 1418, San Marcelino Street Ermita, Manila Philippines |
|
Renamed |
2021 St. Patrick Bahamas, Nassau - Call sign: C6ES2 Owner: Rannveig Shipping Co Ltd. - Greece Manager: TRI Bulk Shipping Ltd. - Greece |
|
Latest data adjustment |
05 July 2022 |
