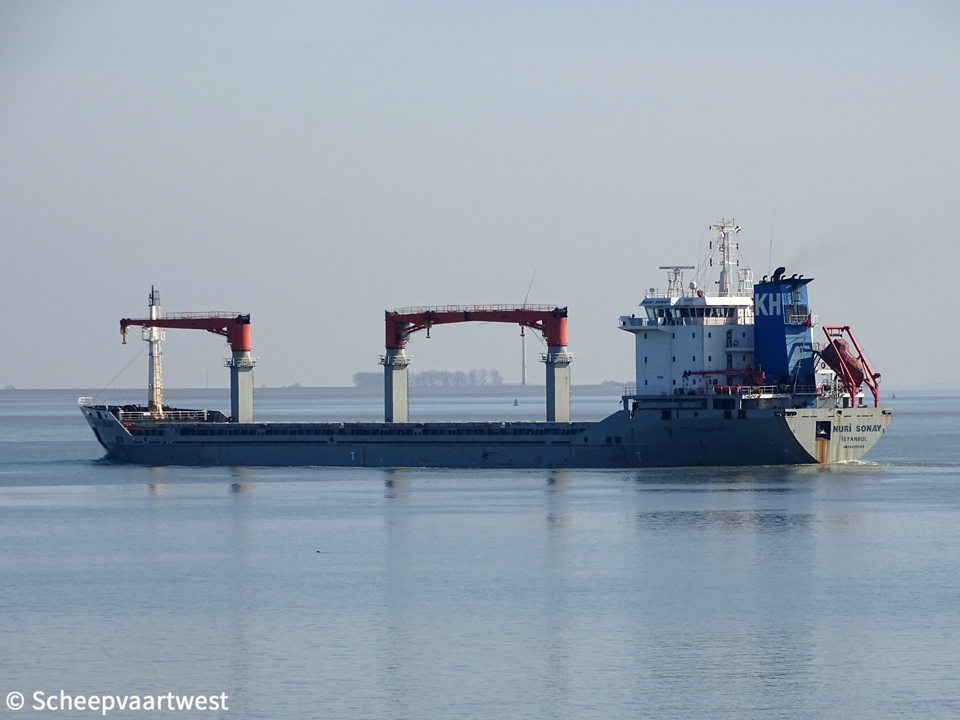

Nuri Sonay 03

Westerschelde 23 February 2019

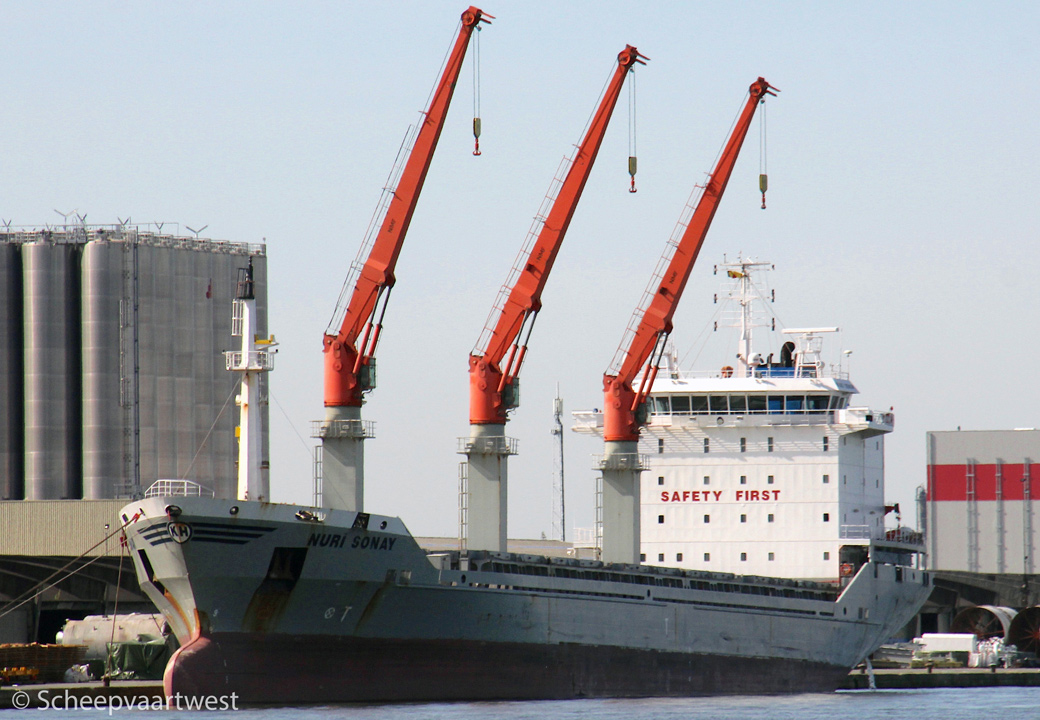

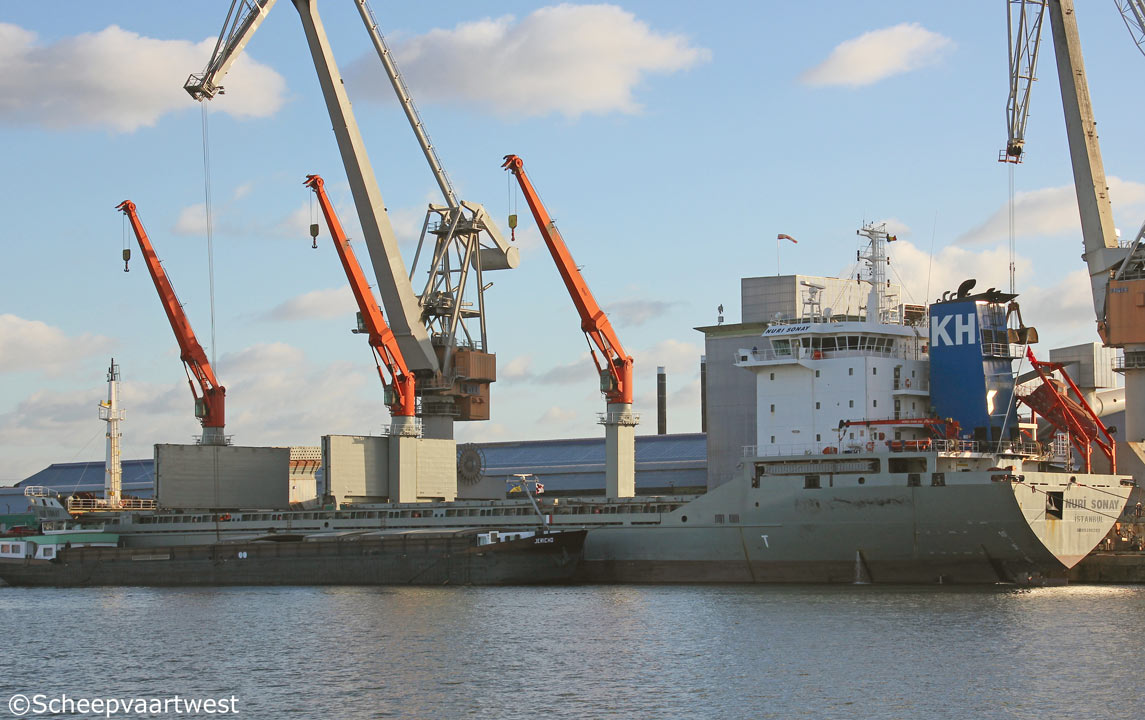

Nuri Sonay 02   Nuri Sonay 01
Antwerpen 17/09/18 Antwerpen 05/01/17



Name

NURI SONAY

Type

General cargo ship - Equipped for carriage of containers

IMO-number

9310202

Call sign

TCPK9

Flag

Turkey

Port of registry

Istanbul

GT

9.490 t

DWT

Summer: 12.996 t

NT

4.574 t

Number of 20ft containers

304 on hatch covers

Length

143,41 m overall

133,37 m between perpendiculars

Breadth

21,70 m extreme

Draught

8,24 m

Freeboard

2.855 mm

Depth

11,10 m moulded

Speed

Service: 14,5 knots

Built

2006

Keel laid

30.12.2003

Date of completion

22.05.2006

Builder

Celik Tekne San ve Tic. AS
Turkey

Yard number

056

Hull material

Steel

Hull type

Single hull

Watertight compartments

10

Continuous decks

1

Main engine

1x MAN B&W 6S35MC Mk-7 - 2 stroke 6 cylinder 350 x 1.400 mm diesel engine 4.440 kW / 6.033 hp at 173 rpm

Builder: MAN B & W Diesel A/S, Frederikshavn - Denmark

Propellers

1x Screw propeller controllable pitch - aft at 173 rpm (ALPHA VBS 980 & Alphatronic 2000)

Boilers

1x CHR Aalborg 85,40 m² / 10,0 bar
1x CHO Aalborg 19,00 m² / 12,6 bar

Shaft generator

1x Lerroy Summer 750 kVA - 600 kW / 50 Hz at 1.500 rpm

Generators

3x MAN LINDENBERG main diesel generatorsets each 400 kVA - 320 kW - 469 hp at 1.500 rpm- 400 VAC-50Hz

Emergency generator

1x Diesel generatorset 125 kVA - 100 kW - 150 hp at 1.500 rpm- 400 VAC-50Hz

Bow thruster

1x Schottel STT 330 T-LK - 450 kW

Number of holds

4

Hold 1: Box Shape 12,60 x 12,06 m

Hold 2: Box Shape 25,60 x 17,20 m

Hold 3: Box Shape 25,60 x 17,20 m

Hold 4: Box Shape 19,20 x 17,20 m

Total capacity of holds

Hold 1: 1.655,62 m³

Hold 2: 5.310,78 m³

Hold 3: 5.352,36 m³

Hold 4: 4.060,20 m³

Total: 16.306,31 m³

Hatch type

Hydraulic, folding type

Max. permitted loads

Hatch covers: 1.75 t/m²

Tank capacities

Fuel oil: 765,98 m³

Diesel oil: 268 m³

Fresh water: 143 m³

Ballast: 5.386 m³

Cargo gear

3x NMF PKL 330 Piston Type cranes - SWL 30,0 t

Manager

Sonay Denizcilik Ltd. Sirketi
Haciogullari Plaza Ankara Asfalti, Tuzla Yolu Kavsagi, 81700 Tuzla

Turkey

Operator

AY Denizcilik AS

Owner

Haciogullari Group
Istanbul
Turkey

Registered owner

Haciogullari Hazir Beton A.S.
Address care of Sonay Denizcilik Ltd. Sti (Sonay Shipping Co., Ltd.) Haciogullari Plaza, Ankara Asfalti Tuzla Yolu Kavsagi, Tuzla
34940 Istanbul
Turkey

Latest data adjustment

17 October 2018
