| Westerschelde 02 November 2019 |
|
Name |

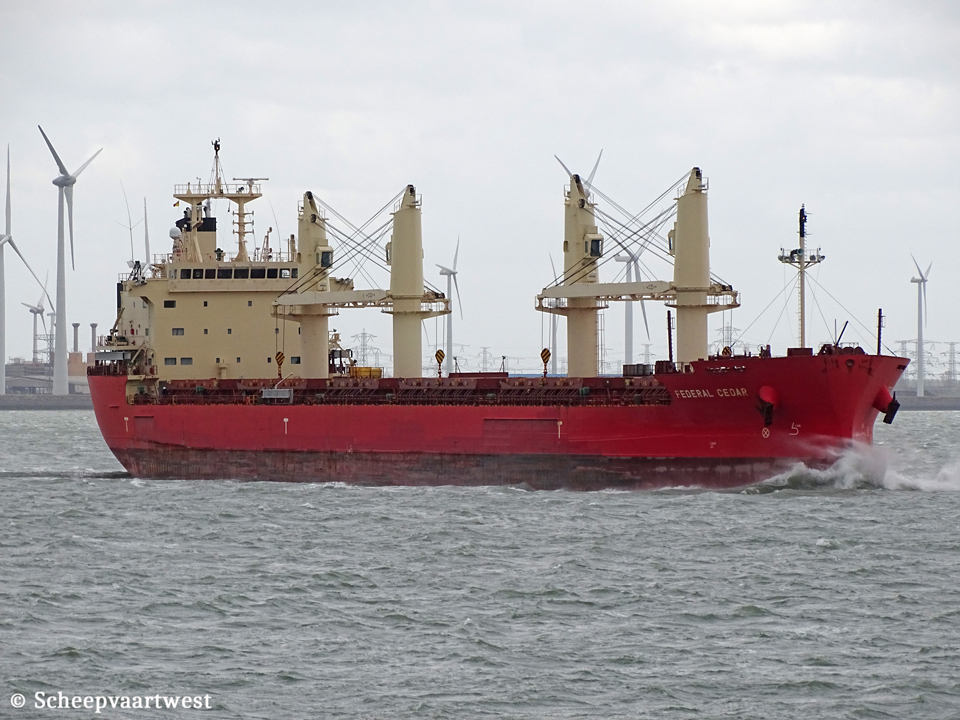

FEDERAL CEDAR |
|
Type |
Bulk carrier |
|
IMO-number |
9671101 |
|
Call sign |
V7NK8 |
|
Flag |
Marshall islands |
|
Port of registry |
Majuro |
|
GRT |
20.789 t |
|
DWT |
Summer: 34.564 t Winter: 33.583 t |
|
NRT |
11.617 t Panama: 17.345 t Suez: 19.066 t |
|
Length |
199,98 m overall 195,50 m between perpendiculars |
|
Breadth |
23,82 m extreme 13,76 m moulded |
|
Draught |
Summer: 10,86 m Winter: 10,63 m |
|
Depth |
14,85 m |
|
Speed |
Max: 14,0 knots |
|
Built |
2016 |
|
Keel laid |
09/11/2013 |
|
Launch date |
27/01/2016 |
|
Date of completion |
23/02/2016 |
|
Builder |
Oshima Shipbuilding Co., Ltd. Saikai Japan |
|
Yard number |
10747 |
|
Hull material |
Steel |
|
Main engine |
1x MAN -B&W/Kawasaki 5S50ME-B9.3 - 2 stroke 5 cylinder 500 x 2.214 mm combustion engine 6.400 kW / 8.701 hp at 117,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, composite |
|
Generators |
3x Daihatsu 6DK-20e main diesel generatorsets |
|
Emergency generator |
1x Deutz TCD 914 L06 M diesel generatorset |
|
Bow thruster |
1x 825 kW |
|
Number of holds |
6 Hold 1: 25,20 x 5,10/21,00 m Hold 2: 27,60 x 21,00/21,00 m Hold 3: 28,30 x 21,00/21,00 m Hold 4: 20,40 x 21,00/21,00 m Hold 5: 28,30 x 21,00/21,00 m Hold 6: 22,20 x 21,00/10,40 m |
|
Cargo hold capacity |
Grain / Bale Hold 1: 5.887 m³ / 5.842 m³ Hold 2: 7.751 m³ / 7.738 m³ Hold 3: 7.913 m³ / 7.900 m³ Hold 4: 6.185 m³ / 6.141 m³ Hold 5: 7.908 m³ / 7.895 m³ Hold 6: 6.007 m³ / 5.982 m³ Total: 41.651 m³ / 41.498 m³ |
|
Number of hatches |
6 Hatch 1: 15,00 x 13,20 m Hatch 2: 20,20 x 16,80 m Hatch 3: 20,20 x 16,80 m Hatch 4: 14,10 x 16,80 m Hatch 5: 20,20 x 16,80 m Hatch 6: 15,80 x 16,80 m |
|
Hatch type |
Folding hydraulic |
|
Max permitted loads |
Tanktop Hold 1: 20,2 t/m² Hold 2: 20,0 t/m² Hold 3: 20,0 t/m² Hold 4: 22,2 t/m² Hold 5: 20,0 t/m² Hold 6: 24,8 t/m² |
|
Tank capacities |
IFO: 1.143 m³ MDO: 708 m³ Ballast: 19.337,2 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 62 mm |
|
Cargo gear |
4x Deck cranes - SWL 35,0 t each |
|
ISM & commercial manager |
Anglo-Eastern Ship Management Limited 17th Floor, Kingston International Centre, 19 Wang Chiu Road, Kowloon Bay, Kowloon Hong Kong - China |
|
Registered owner |
Federal Atlantic Ltd. Care of Fednav Ltd. Bureau 3500, 1000, rue de la Gauchetiere O Montreal QC H3B 4W5 Canada |
|
Group |
Fednav Group Montreal Canada |
|
Latest data adjustment |
13 October 2022 |
