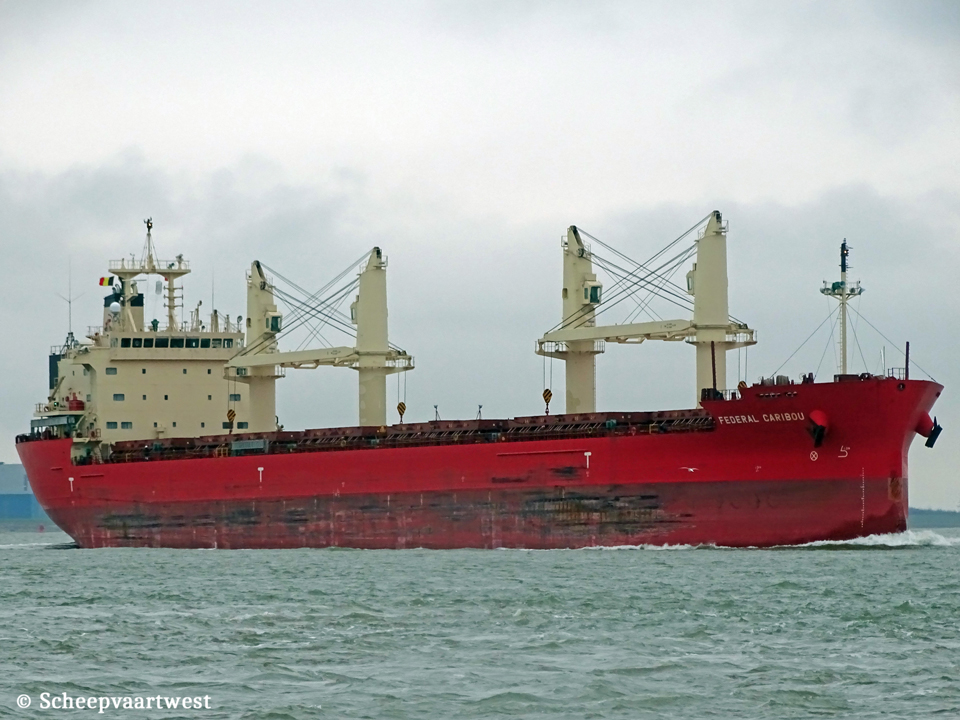

Federal Caribou IMO 9671096 03

Westerschelde20 January 2018

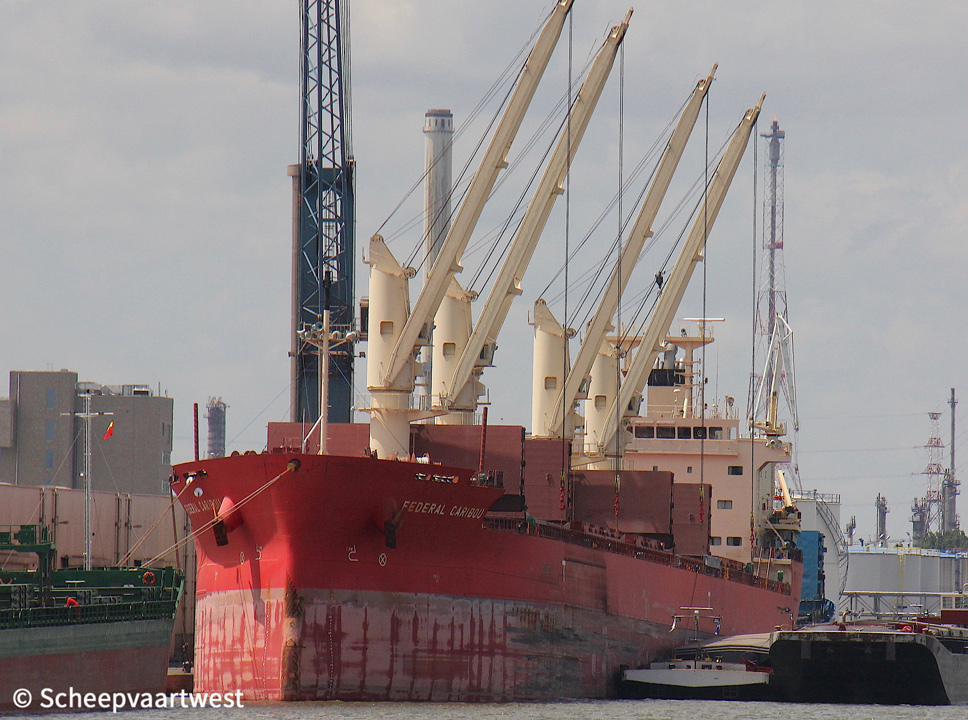

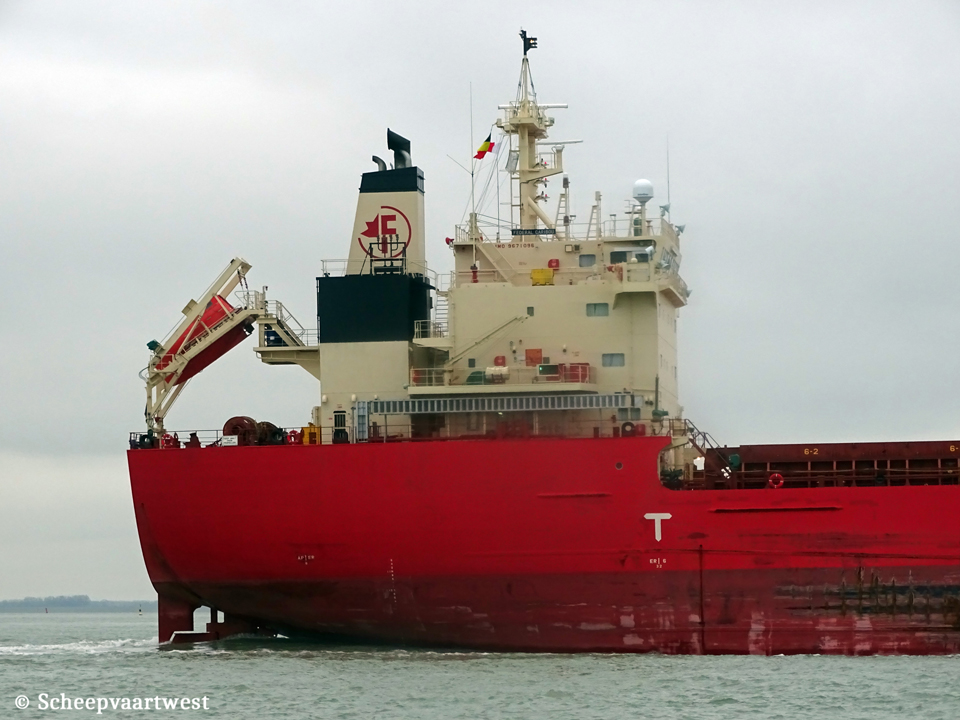

Federal Caribou IMO 9671096 04   Federal Caribou 02   Federal Caribou 01
Westerschelde 20/01/18   Antwerpen 01/07/19   Antwerpen 01/07/19


Name

FEDERAL CARIBOU

Type

Geared bulk carrier

IMO-number

9671096

Call sign

V7NK6

Flag

Marshall islands

Port of registry

Majuro

GT

20.789 t

DWT

Summer: 34.564 t

Winter: 33.583 t

NT

11.617 t

Suez: 19.066 t

Length

199,98 m overall

195,50 m between perpendiculars

Breadth

23,82 m extreme

23,76 m moulded

Draught

Summer: 10,86 m

Winter: 10,63 m

Depth

14,85 m

Speed

Max: 14,0 knots

Built

2016

Keel laid

09/11/2013

Launch date

30/11/2015

Date of completion

13/01/2016

Builder

Oshima Shipbuilding Co., Ltd.

Saiki

Japan

Yard number

10746

Hull material

Steel

Hull type

Single hull

Main engine

1x Kawasaki/MAN-B&W 5S50ME-B9.3 - 2 stroke 5 cylinder combustion engine 6.400 kW

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary boiler, composite

Manufacturer: Alfa Laval K.K. Marine & Offshore System

Generators

3x Daihatsu 6DK-20e main diesel generatorsets each 900 kW

Manufacturer: Daihatsu Diesel Mfg. Co., Ltd. Moriyama Division

Emergency generator

1x Deutz TCD 914 L06 M diesel generatorset

Manufacturer: Deutz AG Werk, Ulm - Germany

Bow thruster

1x 825 kW

Number of cargo holds

6

Hold 1: 25,20 x 5,10/21,00 m

Hold 2: 27,60 x 21,00 m

Hold 3: 28,30 x 21,00 m

Hold 4: 20,40 x 21,00 m

Hold 5: 28,30 x 21,00 m

Hold 6: 22,20 x 21,00/10,40 m

Cargo hold capacity

Brain / bale:

Hold 1: 5.887 / 5.842 m³

Hold 2: 7.751 / 7.738 m³

Hold 3: 7.913 / 7.900 m³

Hold 4: 6.185 / 6.141 m³

Hold 5: 7.908 / 7.895 m³

Hold 6: 6.007 / 5.982 m³

Total: 41.651 / 41.498 m³

Hatches

6

Hatch 1: 15,00 x 13,20 m

Hatch 2: 20,20 x 16,80 m

Hatch 3: 20,20 x 16,80 m

Hatch 4: 14,10 x 16,80 m

Hatch 5: 20,20 x 16,80 m

Hatch 6: 15,80 x 16,80 m

Hatch cover type

Folding Hydraulic

Tank capacities

IFO: 1.387 m³

MDO: 449 m³

Ballast: 19.337,2 m³

Anchor equipment

Length: 605,00 m

Diameter: 62 mm

Cargo gear

4x Deck cranes - SWL 35,0 t each

Manager

Anglo-Eastern Ship Management Ltd.

Registered owner

Federal Atlantic Ltd.

Group

Fednav Group

1000 de La Gauchetière Street West, Suite 3500

Montreal

Quebec H3B 4W5

Canada

Latest data adjustment

01 January 2020
