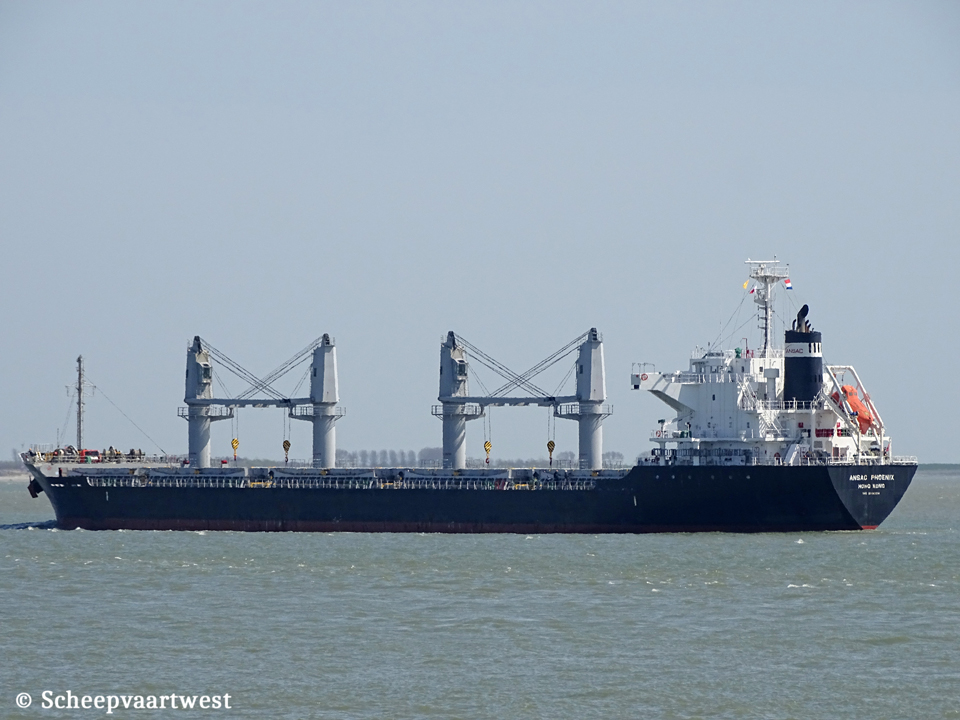

| Westerschelde 17 April 2018 |
|
Name |
ANSAC PHOENIX |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading - Handymax |
|
IMO-number |
9706334 |
|
Call sign |
VRMZ4 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GRT |
17.019 t |
|
DWT |
28.365 t |
|
NRT |
10.108 t |
|
Length |
169,37 m overall |
|
Breadth |
27,20 m moulded |
|
Draught |
Summer: 9,82 m |
|
Moulded L x B x D |
160,40 x 27,20 x 13,60 m |
|
Registered L x B x D |
161,21 x 27,20 x 13,60 m |
|
Keel to mast end |
41,00 m |
|
Freeboard |
Summer: 3.825 mm |
|
Depth |
13,60 m moulded |
|
Speed |
Max: 16,2 knots Service: 14,0 knots |
|
Built |
2014 |
|
Keel laid |
28/12/2010 |
|
Launch date |
27/12/2013 |
|
Date of completion |
19/02/2014 |
|
Builder |
Imabari Zosen Shipbuilding Co., Ltd. Japan |
|
Yard number |
813 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6S42MC - 2 stroke single acting 6 cylinder 420 x 1.764 mm combustion engine 5.850 kW / 7.953 hp at 129,0 rpm Manufacturer: Hitachi Zosen Corporation Innoshima Works |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 420 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,8 MPa Evaporation: 1,95 t/h Manufacturer : Miura Co., Ltd. |
|
Generators |
4x Generatorsets total 1.715 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 35.742 m³ Grain: 37.320 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 1.538 m³ Fresh water: 262 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each |
|
Manager |
P&F Marine Co., Ltd. |
|
Owner |
Ansac 15 Riverside Avenue - 2nd Floor Westport, CT 06880 USA |
|
Renamed |
01/2021 Soda Phoenix Hong Kong - China - Call sign: VRMZ4 Owner: Ocean Friend Corporation Ltd. - South Korea Manager: P&F Marine Co., Ltd. - South Korea |
|
Latest data adjustment |
21 November 2022 |
