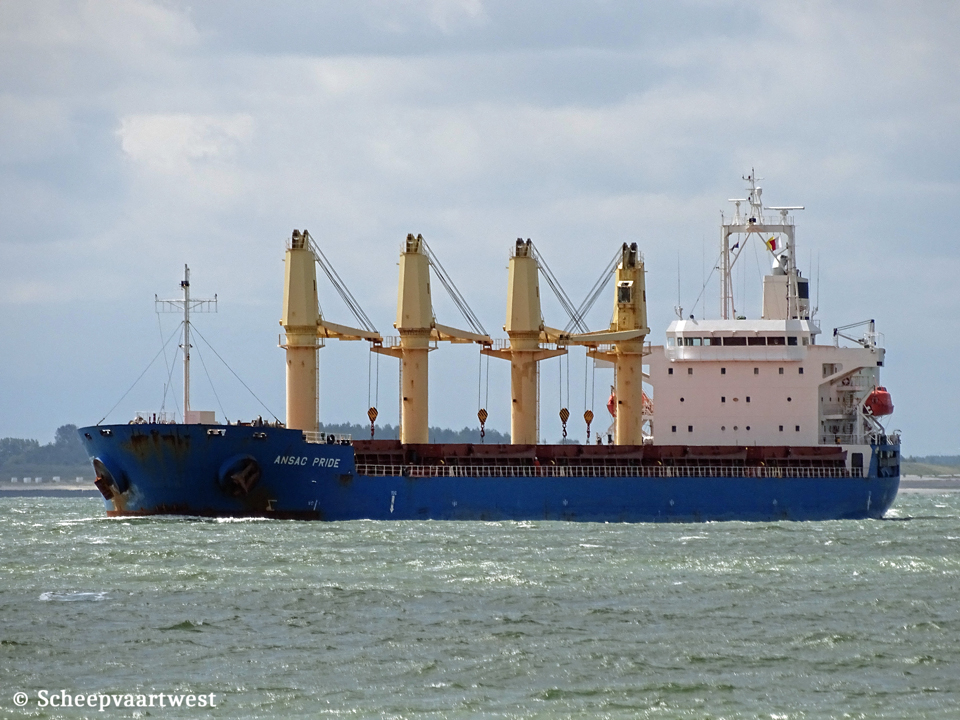

| Westerschelde 12 August 2017 |
 |
|

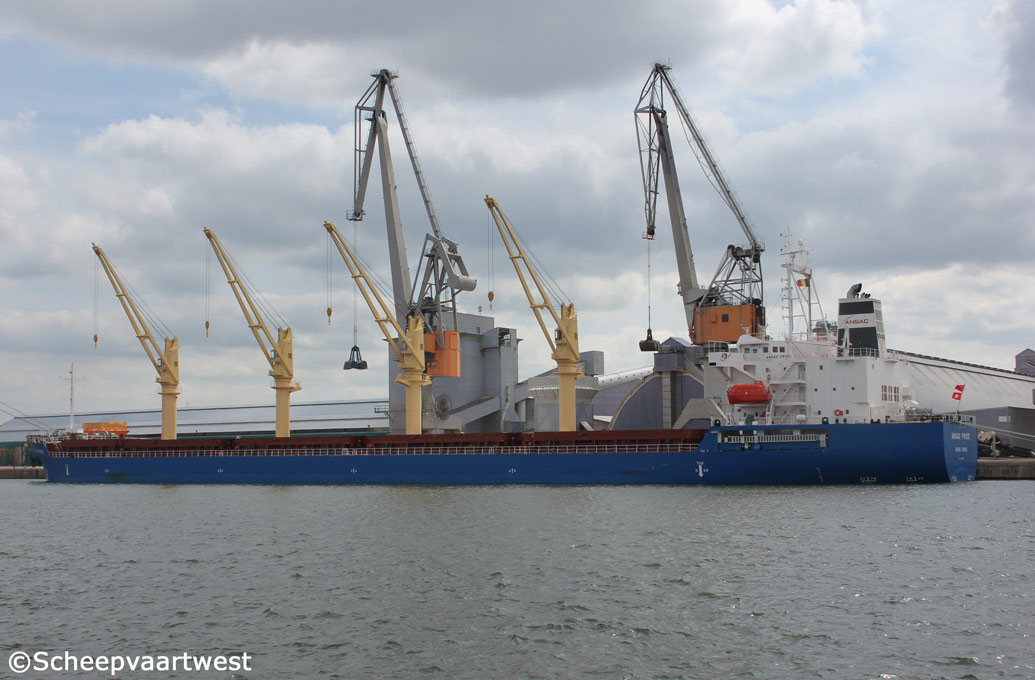

| Antwerpen 17/08/13 | |
|
Name |
ANSAC PRIDE |
|
Type |
Bulk carrier - Strengthened for heavy cargo |
|
IMO-number |
9619737 |
|
Call sign |
VRMF9 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
22.863 |
|
DWT |
Summer: 37.094 t Winter: 36.064 t |
|
NT |
12.519 |
|
Displacement |
Lightship: 8.281 t |
|
Length |
177,85 m overall |
|
Breadth |
29,00 m |
|
Draught |
Summer: 10,87 m Winter: 10,64 m |
|
Moulded L x B x D |
169,80 x 28,60 x 15,00 m |
|
Registered L x B x D |
170,58 x 28,60 x 15,00 m |
|
Keel to mast end |
44,62 m |
|
Bridge front to bow |
151,75 m |
|
Bridge front to stern |
26,10 m |
|
Freeboard |
Summer: 4.190 mm Winter: 4.416 mm |
|
Depth |
15,00 m moulded |
|
Speed |
15,8 knots |
|
Built |
2013 |
|
Keel laid |
16/01/2013 |
|
Launch date |
10/04/2013 |
|
Date of completion |
19/06/2013 |
|
Builder |
Onomichi Dockyard Co., Ltd. Onomichi Japan |
|
Yard number |
592 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Mitsubishi 6UEC45LSE - 2 stroke single acting 6 cylinder 450 x 1.840 mm combustion engine Mcr:7.470 kW at 130,0 rpm Ncr: 6.723 kW at 125,5 rpm Manufacturer: Akasaka Diesels Ltd. - Japan |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 470 mm |
|
Propellers |
1x Fixed pitch propeller Diameter: 5.100 mm - 5 blades |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 2,62 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 450 kW / 450 Volt 3 phase 60Hz |
|
Emergency generator |
1x Diesel generatorset 80 kW / 450 Volt 3 phase 60Hz |
|
Number of holds |
5 Hold 1: Forward 13,60 m - Aft 20,00 m - Length 21,60 m Hold 2: 24,00 x 24,12 m Hold 3: 24,00 x 24,12 m Hold 4: 24,00 x 24,12 m Hold 5: Forward 22,40 m - Aft 7,20 m - Length 28,00 m |
|
Cargo hold capacity |
Bales: 45.294 m³ Grain: 45.790 m³ |
|
Number of hatches |
5 Hatch 1: 15,20 x 20,00 m Hatches 2,3,4,5: 22,40 x 24,00 m |
|
Max permitted loads |
Tanktop: Hold 1,3,5: 20,0t/m² Hold 2,4: 13,0 t/m² Hatch cover 1,2,3,4,5: 2,0 t/m² Upper deck: 4,0 t/m² |
|
Number of tanks |
Fuel oil: 5 MDO: 2 |
|
Tank capacities 100% |
Fuel oil: 1.493,2 m³ MDO: 141,4 Fresh water: 219,2 m³ Water ballast: 14.205 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each |
|
Manager |
Wealth Ocean Ship Management (Shanghai) Co., Ltd. China |
|
Registered owner |
Jade Bulkship S.A. |
|
Last data update |
04 December 2025 |
