Name |

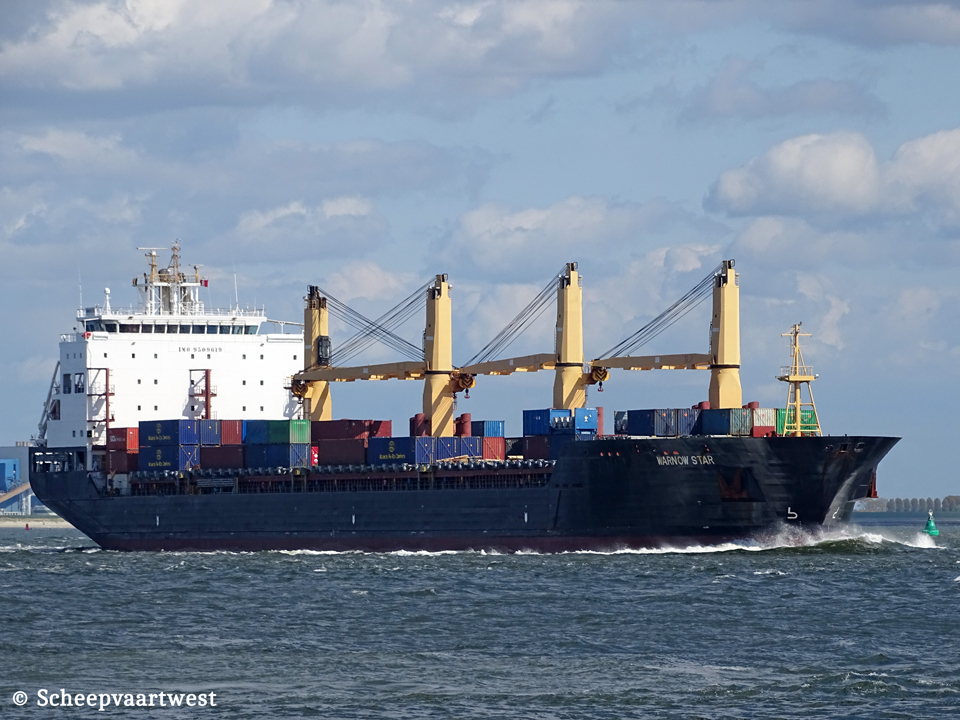

WARNOW STAR |
|
Type |
Multi-Purpose dry cargo ship - , Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9509619 |
|
Call sign |
9HA4158 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2010 - 2017 Liberia, Monrovia - Call sign: A8UH3 |
|
GT |
22.863 t Suez: 23.356,82 t |
|
DWT |
Summer: 33.271 t winter: 32.255 t |
|
NT |
10.602 t Suez: 21.969,7 t Panama: 19.050 t |
|
Lightship |
10.285,3 t |
|
Number of 20ft containers |
On deck: 484 In hold: 674 Total: 1.158 |
|
Container capacity 14t |
545 |
|
Reefer capacity |
30 |
|
Length |
179,40 m overall 168,97 m between perpendiculars |
|
Breadth |
28,23 m extreme |
|
Draught |
Summer: 10,80 m |
|
Freeboard |
10.800 mm |
|
Depth |
15,10 m |
|
Speed |
Max: 15,5 knots |
|
Built |
2010 |
|
Keel laid |
22/12/2008 |
|
Launch date |
24/09/2009 |
|
Date of completion |
05/01/2010 |
|
Builder |
Zhejiang Ouhua Shipbuilding Co. Ltd. China |
|
Yard number |
552 |
|
Hull material |
shipbuilding steel (standard) |
|
Hull type |
Single hull partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
7 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W/STX 6S50MC-C7 - 2 stroke 6 cylinder combustion engine Mcr 8.800 kW / 11.964 hp at 127,0 rpm Buider: STX Engine Co., Ltd. |
|
Propeller |
1x Solid fixed pitch propeller (keyless) - aft at 127,0 rpm 4 blades |
|
Boilers |
1x Steam boiler, oil fired / exhaust gas heated - 9,0 bar Heating surface: 50.0 m² Heating surface: 340.0 m² |
|
Electric installations |
1x Plant 400 V - 522,5 kVA 2x Plant 400 V - 627,5 kVA 1x Plant 400 V - 200 kVA 2x Plants, each 24 V - 200 Ah 2x Plants, each 24 V - 300 Ah 2x Plants, each 24 V - 2.720 Ah |
|
Generators |
2x MAN-B&W 6L16/2 main diesel generatorsets each 627,5 kVA 1x MAN B&W 5L16/24 main 522,5 kVA at 1.800 rpm |
|
Emergency generator |
1x Diesel generatorset 200 kVA |
|
Batteries |
2x Batteries for automation each 1360 Ah 2x Batteries for automation,each 1360 Ah 2x Batteries for UPS navigation each 300 Ah 2x Batteries for start emergency engine each 200 Ah |
|
Compressed air receivers |
2 Receivers each 5.000 litres - 30,0 bar 1 Receiver 250 litres - 30,0 bar 1 Receiver 2.500 litres - 8,0 bar 1 Receiver 100 litres - 8,0 bar |
|
Number of holds |
5 Hold 1: 7,80 / 6,90 x 20,10 /10.,20 m Hold 2: 30,40 x 24,40 m Hold 3: 30,40 x 24,40 m Hold 4: 30,40 x 24,40 m Hold 5: 13,60 x 14,50 m (24,40 m) Clear height in hold: 14,85 m |
|
Cargo hold capacity |
With out Tweendeck / with tweendeck Hold 1: 3.255 m³ / 3.242 m³ Hold 2: 10.551 m³ / 9.733 m³ Hold 3: 10.551 m³ / 9.733 m³ Hold 4: 10.551 m³ / 9.733 m³ Hold 5: 4.155 m³ / 4.155 m³ Total: 39.063 m³ / 36.609 m³ |
|
Number of hatches |
5 Hatch 1: 12,60 x 20,04 / 10,19 m Hatch 2: 25,60 x 24,40 m Hatch 3: 25,60 x 24,40 m Hatch 4: 25,60 x 24,40 m Hatch 5: 12,80 x 24,40 m |
|
Hatch type |
Hydraulic folding type |
|
Tank capacities |
Heavy oil: 2.049 m³ Gas oil: 1126 m³ Fresh water: 171 m³ Water ballast: 12.957 m³ |
|
Anchor equipment |
3x Anchors weight each 8.300 kg Chain length: 632;50 m Diameter: 70 mm |
|
Cargo gear |
4x Electro hydraulic single deck crane - SWL 60,0 t each Builder: MacGregor |
|
Crew size |
30 |
|
Manager |
Atlantic Ro-Ro Carriers, Inc. SC Atlantic ship management Ukraine |
|
Registered owner |
Atlantic Gemini Navigation Limited |
|
Renamed |
2021 - 2022 Atlantic Runner II Malta, Valletta - Call sign: 9HA4158 2022 Atlantic Runner II Marshall Islands, Majuro - Call sign: V7A5739 Owner: Berluti Shiptrade Corp. Manager: Marlow Ship Management Deutschland GmbH & Co. KG, Hamburg - Germany |
|
Latest data adjustment |
23 February 2023 |
